EZVIZ DB1C 2MP Wi-Fi Smart Doorbell
Description / EZVIZ DB1C 2MP Wi-Fi Smart Doorbell
Key Features:
- -PIR motion detection
- -Two-way talk
- -Night Vision (Up to 5m)
- Full HD 1080P video resolution
- 180° vertical field of view

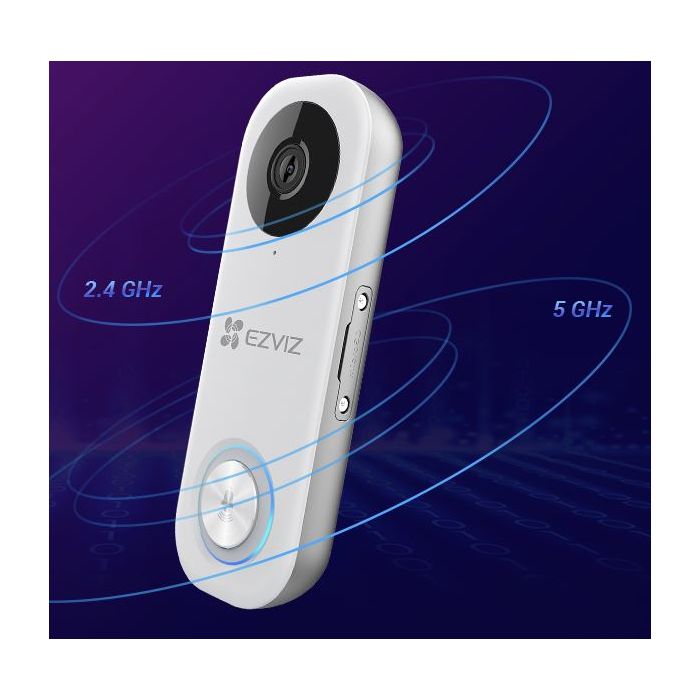

- 2.4GHz/5GHz

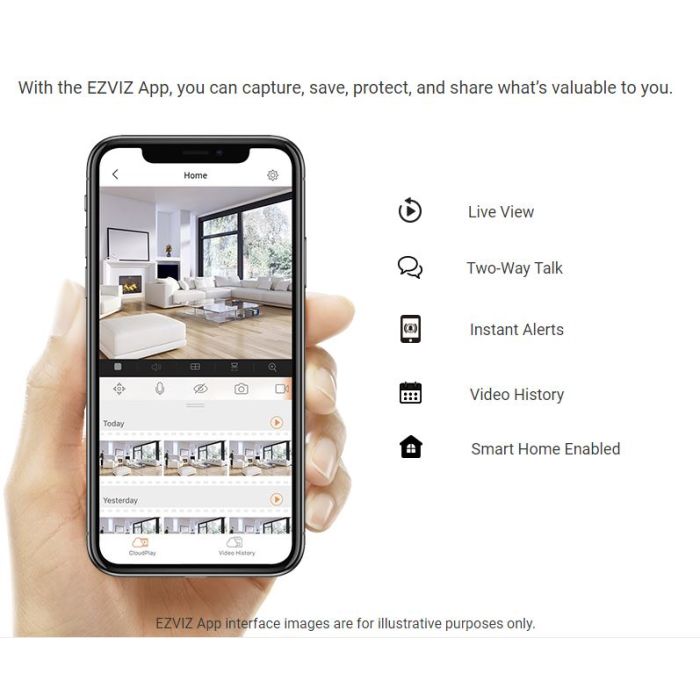

- View anywhere

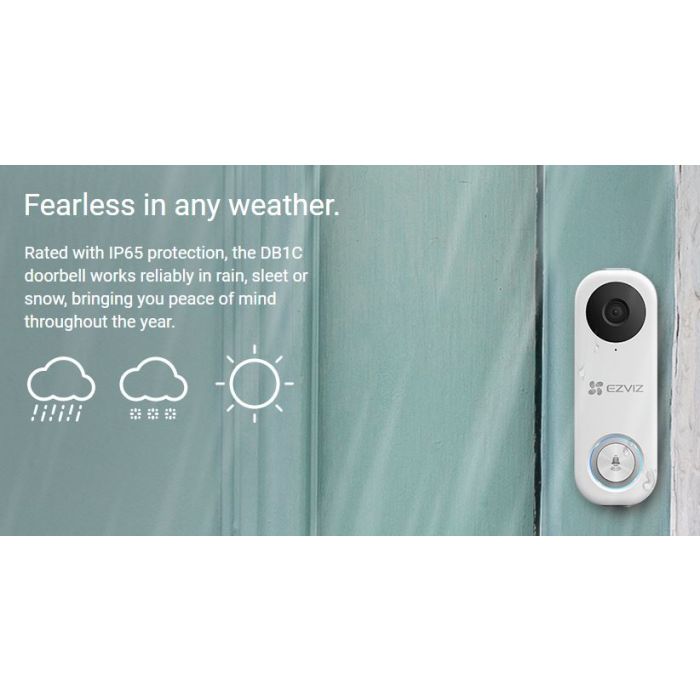

- IP65 dust and water protection
- Supports MicroSD card (Up to 128GB)
Made by HIKVision, the World's No. 1 CCTV Manufacturer, can connect to HIKVision recorders and app.
Plug-in Chime Available as drop-down option
Specifications:
| Model | CS-DB1C-A1-1E2W2FR | |
|---|---|---|
| Camera | ||
| Image Sensor | 1/2.4" Progressive Scan CMOS | |
| Lens | 2.1 mm @ F2.4, view angle: 170° (Vertical) | |
| Day & Night | IR-cut filter with auto-switching | |
| Night Vision | Max. 5 m (16.4 ft.) | |
| Video | ||
| Max. Resolution | 1536 x 1536 | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Video Compression | H.265 / H.264 | |
| Frame Rate | Max: 15fps; Self-adaptive during network transmission | |
| Interface | ||
| Storage | H.264 / H.265 | |
| Audio Input | Ultra-HD; HD; Standard. Adaptive bit rate. | |
| Audio Output | Built-in high-power speaker | |
| Reset button | Yes | |
| Network | ||

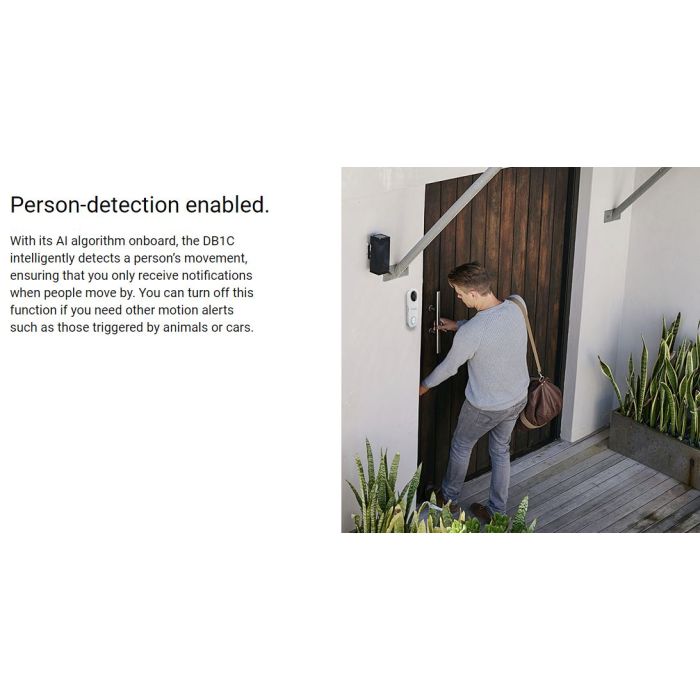

| Intelligent Alarm | Motion detection (with person-shape detection) | |
| Video Intercom | Long-distance video two-way talk | |
| Protocol | EZVIZ cloud proprietary protocol | |
| Interface Protocol | EZVIZ cloud proprietary protocol | |
| Wi-Fi | ||
| Wireless | IEEE802. 11a/b/g/n, 2.4 and 5 GHz dual bands | |
| Channel Bandwidth | Supports 20 MHz | |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK | |
| General | ||
| Working Temperature | -30°C to 60°C (22°F to 140°F ) | |
| Working Humidity | 95% or less (non-condensing) | |
| Power Supply | AC 12V to 24V (not 9V) AC Only | |
| IP Grade | IP65 | |
| Weight | 102 g (0.22 lbs) | |
| Dimensions | 128.3 x 46.3 x 19.3 mm (5.05 x 1.82 x 0.76 inch) | |
| Packaging Dimensions | 172.5 x 102 x 97 mm (6.79 x 4.02 x 3.82 inch) | |
| Certifications | ||
| Certifications | UL / FCC / CE / WEEE / REACH / RoHS | |
