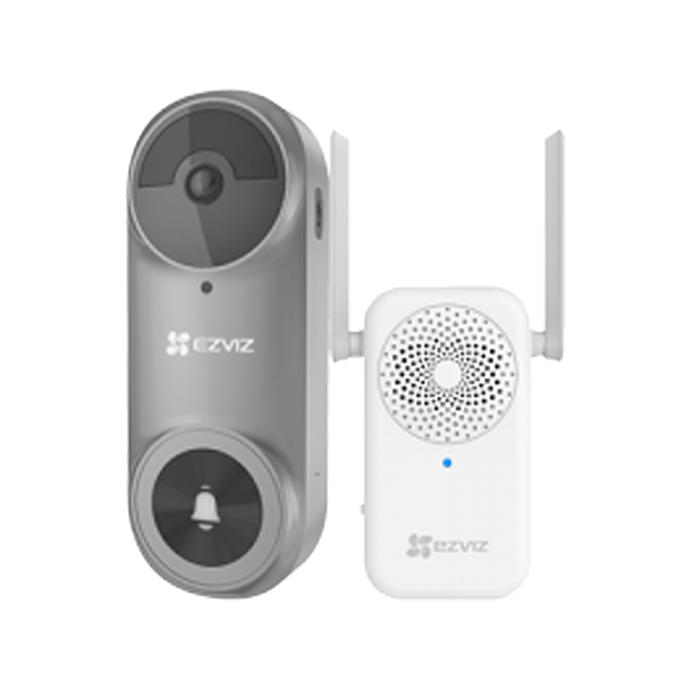

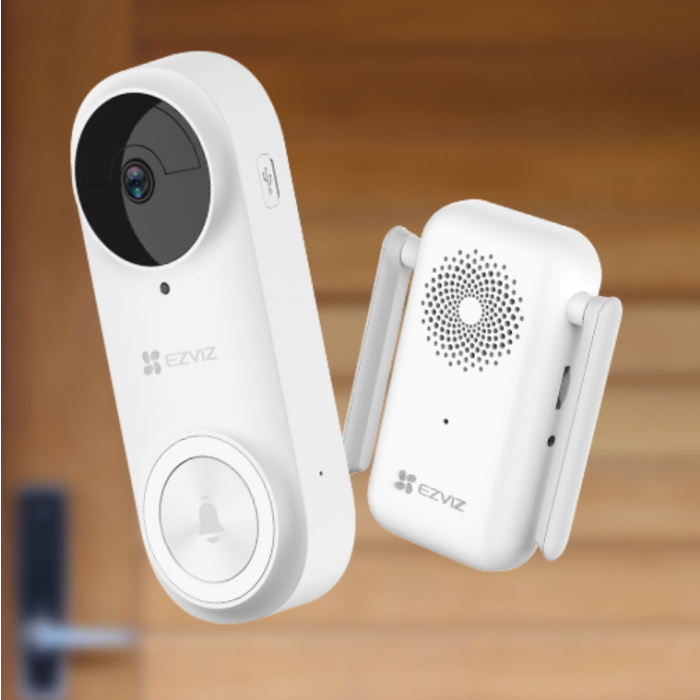

EZVIZ DB2 Pro Battery-Powered 2K Video Doorbell
Description / EZVIZ DB2 Pro Battery-Powered 2K Video Doorbell
KEY FEATURES:
Click Here for PDF Specifications!
|
Specifications: |
|
|
Model |
CS-DB2-A0-2C5WPFBR |
|
Camera Parameters: |
|
|
Image Sensor |
1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
|
Lens |

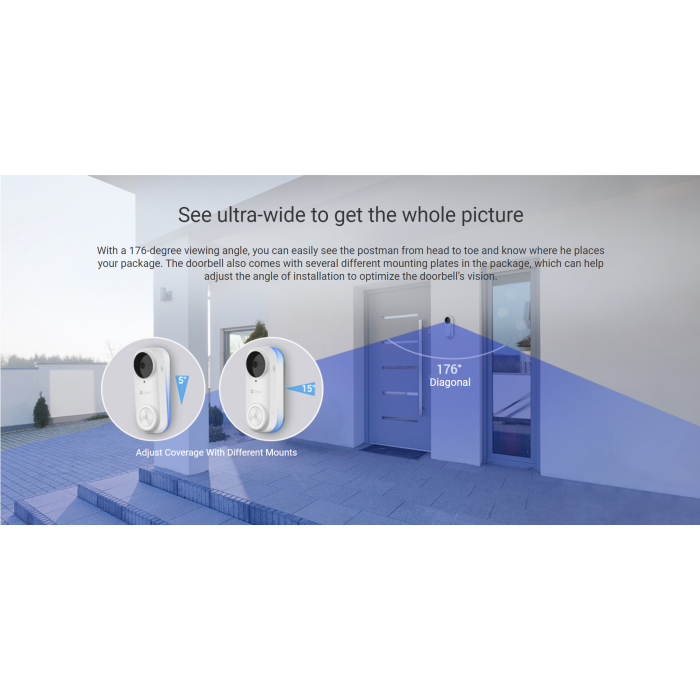

2.0 mm @ F2.0, view angle: 176° (Diagonal) |
|
Day & Night |
IR-cut filter with auto-switching |
|
Video Parameters: |
|
|
Max. Resolution |
2544 × 1888 |
|
DNR |
2D/3D DNR |
|
Video Compression |
H.265 / H.264 |
|
Frame Rate |
Max: 15fps; Self-Adaptive during network transmission |
|

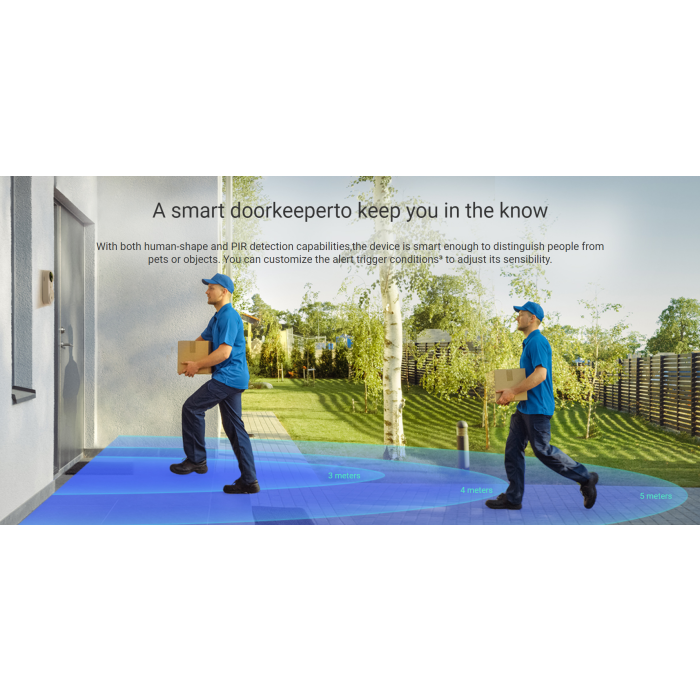

PIR Sensor: |
|
|
Sensing Angle |
100° |
|
Sending Distance |
Max. 5 m (16.4 ft) |
|
Sensitivity |
User adjustable (High, Medium and Low Sensitivity) |
|
Interface: |
|
|
Audio Input |
Built-in high-sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Reset button |
Yes |
|
Network Parameters: |
|
|
Intelligent Alarm |
PIR + human shape smart motion detection |
|
Tamper Alarm |
Sound and light anti-dismantling alarm (supports sending alerts to the smartphone) |
|
Video Intercom |
Long-distance video two way talk |
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Wi-Fi Parameters: |
|
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
Supports 20 MHz |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Transmission Rate |
11b: 11Mbps, 11g :54Mbps, 11n :150Mbps |
|
General: |
|
|
Operating Conditions |
-20°C to 50°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |
|
Ingress Protection Grade |
IP65 |
|
Weight |
241.35 g (8.5 oz) |
|

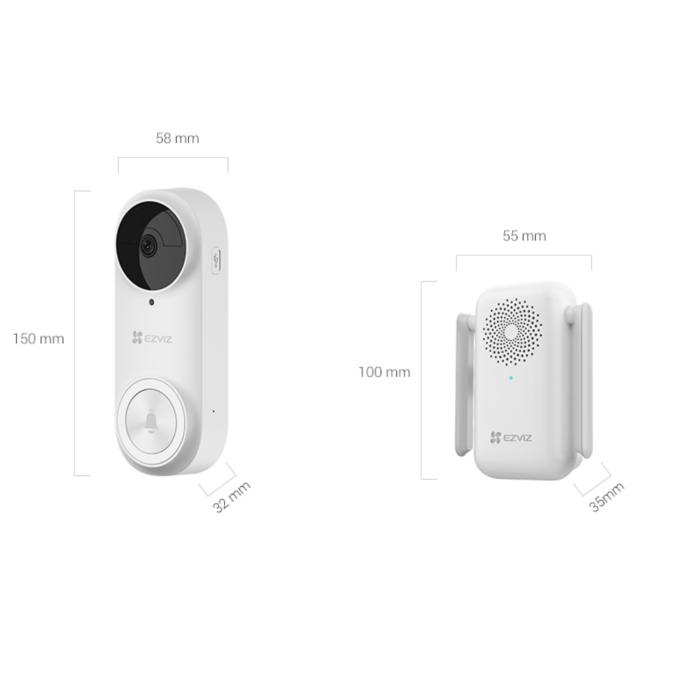

Size |
150 × 58 × 32 mm (5.91 × 2.28 × 1.24 inch) |
|
Battery Capacity |
5200mAh rechargeable lithium battery |
|
Power Supply |
DC5V±10% 2A |
|
Power Consumption |
Max. 2W |
|

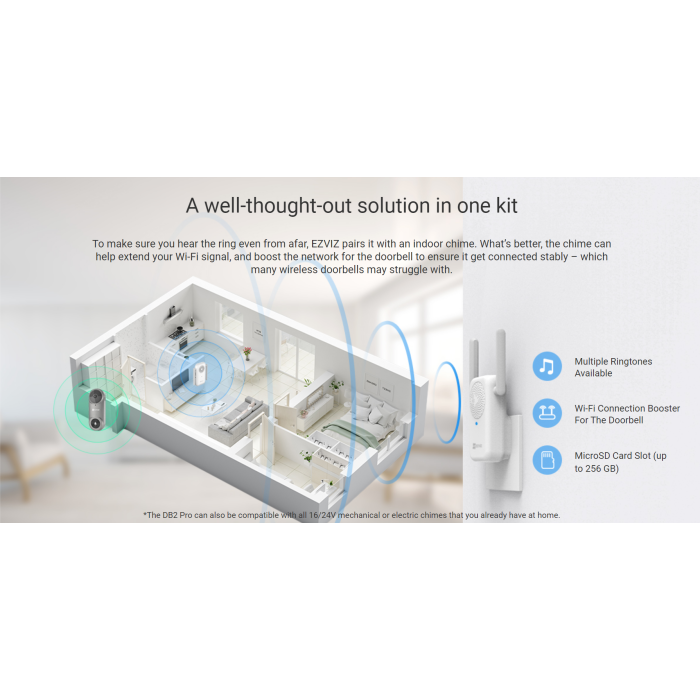

Chime: |
|
|
Size |
100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch) |
|
Power Supply |
AC 110 ~ 240V |
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
|
Audio Output |
72 dB within 1 meter |
|
Storage |
Supports microSD card up to 256 GB |
|
Weight |
120 g (4.2 oz) |
|
In the box: |
|
|
In the box |
- DB2 Pro Video Doorbell - Chime - Mounting Plates - Inclined Mounting Plates (2) - Screwdriver and Screw Kits (2) - Foam Sticker - Plate Foam - Drill Template - Pin -U-shaped Wire and Wire Connectors (3) - Power Cable - Quick Start Guide - Installation Guide - Regulatory Information |
|
Certifications: |
|
|
Certifications |
UL / CE / FCC / REACH / WEEE / RoHS |
