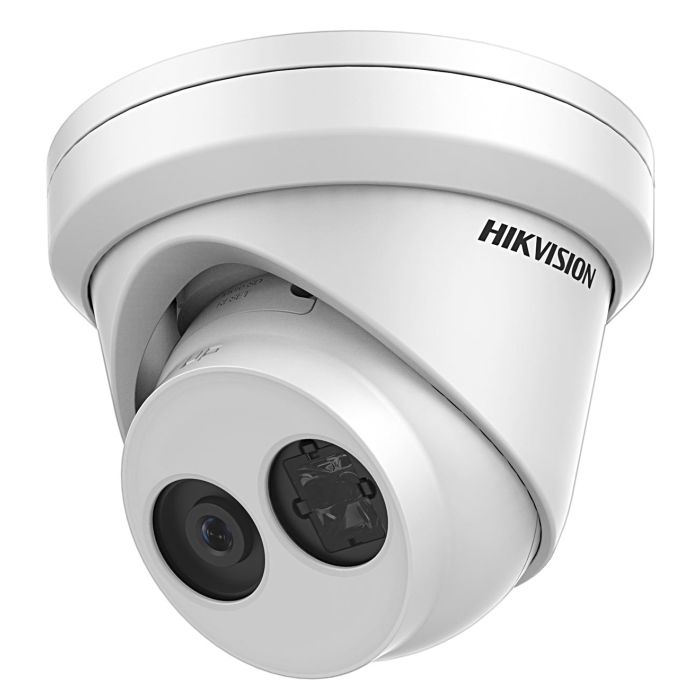

DS-2CD2355FWD-I 5 MP IP Network Dome camera with PoE and SD Card Slot
Description / DS-2CD2355FWD-I 5 MP IP Network Dome camera with PoE and SD Card Slot
This camera has been replaced by the DS-2CD2346G2-IU Ai 4MP turret dome with microphone or the DS-2CD2365G1-I 6MP.
You can access this camera remotely without a recorder when you connect it with a network cable to your broadband using the free HIKVision app on your phone. You can also record directly to an SD card that can be inserted into slot in the camera.
Download the DS-CD2355FWD-I Camera specifications here:
DS-2CD2342FWD-I Details:
Up to 5 megapixel high resolution
Max. 2560 × ‍‍‍‍‍‍1920@‍30fps‍‍‍‍‍‍‍‍‍‍‍
2.8 mm/4 mm/6 mm/8 mm/12 mm fixed lens, optional
H.265, H.265+, H.264+, H.264
120dB Wide Dynamic Range
 3D Digital Noise Reduction
 DC12V & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 Upgraded to IP67 from IP66
DS-1280ZJ-DM8 Camera Base Optional Extra:
The DS-1280ZJ-DM8 camera base is the same diameter and shape as the camera, bringing it a little bit more away from the wall and allowing installers to neatly hide the connections behind the camera
Comes with gland and blank for rear or side cable entry.
DS-2CD2355FWD-I Specifications:
| Camera | ||
|---|---|---|
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8 mm, horizontal field of view: 80° 4 mm, horizontal field of view: 63.5° 6mm, horizontal field of view: 50° 8 mm, horizontal field of view: 33° 12 mm, horizontal field of view: 16° |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120Â dB |
| Digital noise reduction: | | | 3DÂ DNR |
| Compression Standard | ||
| Video bit rate: | | | 32Kbps~16Mbps |
| Triple Streams: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 20 fps (2560 × 1920), 25 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720) 60Hz: 20 fps (2560 × 1920), 30 fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 ×720) |
| Main Stream: | | | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream: | | | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Image Enhancement: | | | BLC/3DÂ DNR |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| Regional Cropping: | | | Support |
| ROI: | | | Support 1 fixed region for each stream, and face dynamic tracking |
| Day/Night Switch: | | | Auto/Scheduled |
| Network | ||
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| Smart Feature-set | ||
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Consumption: | | | 12 VDC ± 25%, 5.5 W PoE(802.3af, 42.5 – 57V, class 3), 7.5 W |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 30m |
| Dimensions: | | | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight: | | | Camera: 620 g (1.37 lb.) |
