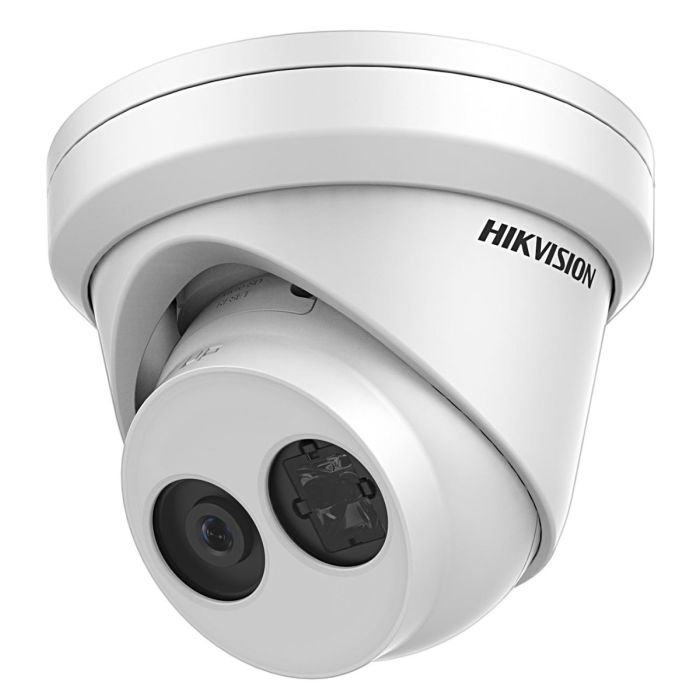

DS-2CD2345FWD-I 4 MP IP Network Dome camera with PoE and SD Card Slot

The DS-2CD2345FWD-I is the very latest IP Network camera from HIKVision. This camera is the new ultra-low light 4MP version of the FWD Series, favoured by professional installers.

You can access this camera remotely without a recorder when you connect it with a network cable to your broadband using the free HIKVision app on your phone. You can also record directly to an SD card that can be inserted into slot in the camera.

Click Here for the PDF Specifications!

DS-1280ZJ-DM8 Camera Base Optional Extra:

The DS-1280ZJ-DM8 camera base is the same diameter and shape as the camera, bringing it a little bit more away from the wall and allowing installers to neatly hide the connections behind the camera

Comes with gland and blank for rear or side cable entry.

DS-2CD2345FWD-I Specifications:

Camera

• Image Sensor1/2.5" Progressive Scan CMOS

• Min. IlluminationColor: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

• Shutter Speed1/3 s to 1/100,000 s

• Slow ShutterYes

• DNR3D DNR

• WDR120dB

• Day & NightIR Cut Filter

Lens

• FocusFixed

• FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°;4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°;6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°;8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°;12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°

• Lens MountM12


• Image EnhancementBLC/3D DNR/HLC

• Day/Night SwitchDay/Night/Auto/Schedule

• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

• Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)；60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

• Max. Resolution2688 × 1520

• Main Stream50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Network

• Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR

• Simultaneous Live ViewUp to 6 channels

• User/HostUp to 32 users,3 levels: Administrator, Operator and User,

• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• StandardONVIF (PROFILE S, PROFILE G), ISAPI

• General FunctionOne-key reset, anti-flicker, password protection, privacy mask, IP Address filtering, heartbeat, watermark

• Firmware VersionV5.5.52

Interface

• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G

General

• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power；PoE(802.3af, class 3)

• DimensionsCamera: Φ 127.3 × 95.9 mm (Φ5" × 3. 8");Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

• WeightCamera: 620 g (1.4 lb.)

• Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Compression Standard

• H.264+Support

• H.265+Support

• H.264 TypeMain Profile/High Profile

• Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,

• H.265 TypeMain Profile

• Video Bit Rate32 Kbps to 16 Mbps

IR

• IR RangeUp to 30 m

Smart Feature-Set

• Behavior AnalysisLine crossing detection, intrusion detection, object removal detection, unattended baggage detection
