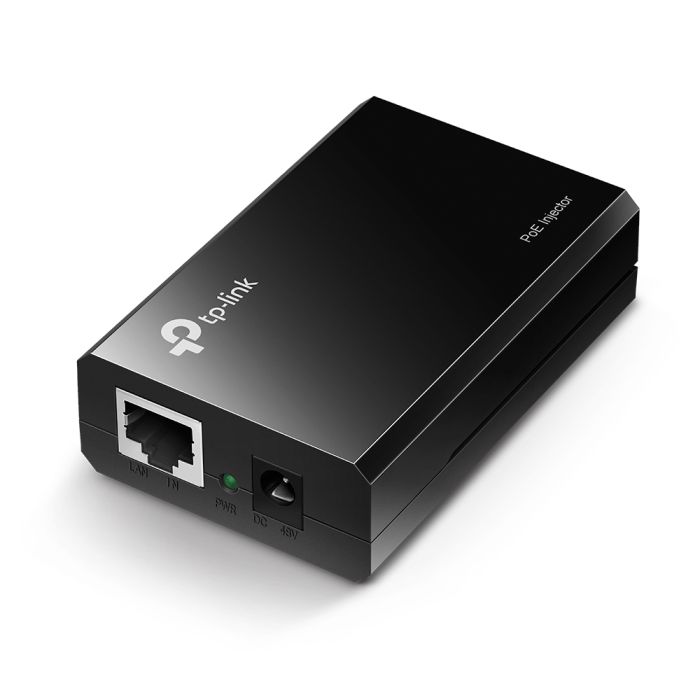

TL-POE150S PoE Injector
Description / TL-POE150S PoE Injector
| HARDWARE FEATURES | |
|---|---|
| Interface | 2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 15.4W (Max. 48VDC) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2 × 2.1 × 0.9 in. (81 × 54 × 24 mm) |
| SOFTWARE FEATURES | |
|---|---|
| Basic Function | Compatible With IEEE 802.3af Compliant PDs Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | Gigabit PoE Injector TL-POE150S Power Adapter RJ45 Cable Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
