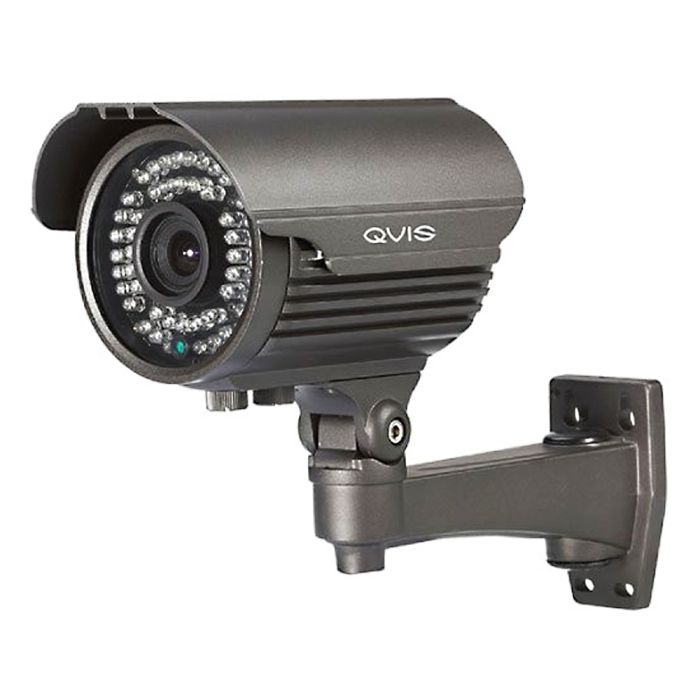

Q5-P400-VG 5MP Varifocal Camera
Description / Q5-P400-VG 5MP Varifocal Camera
Click Here for the PDF Specifications!
SPECIFICATIONS:
- Image Sensor: 1/2.7” 5MP Low-light and Low-power image sensor
- Signal System: PAL / NTSC
- Active Pixels: 2688(H) ×1944(V)
- Lens: 2.8-12mm MP Lens
- Angle of View: H: 98° - 320
- Horizontal Resoultion:
- -5MP @ 20fps, 5MP @ 12.5fps
- -4MP @ 30fps/25fps/15fps
- S/N Radio: >50 dB (AGC off)
- Min Illumination: 0 Lux (IR ON - IR-cut technology)
- Menu: UTC Control (the video output mode, can ONLY be selected by the dip switch cable)
- Language: CHN / ENG
- Auto Electronic Shutter: PAL:1/50 - 1/100,000 sec, NTSC:1/60 - 1/100,000 sec
- Day / Night: Ext / Auto / Colour / Black & White
- White Balance: ATW / MWB
- DNR: 0-15
- D-WDR: ON / OFF
- Video Output: CVBS / CVI / AHD / TVI ** Factory default is TVI
- Power Supply: DC12V ±10%
- Current Consumption: 80 mA(IR OFF), 400 mA(IR ON)
- IR Led: 48 pcs
- IR Distance in Effect: 40-50M
- IP Rating: IP66
- Storage Temperature: -500c ~+900c
- Operating Temperature: -300c ~+700c
- Dimension: 240*105*200mm
- Weight: 1210g
