Low Cost Hi-Spec IR PTZ Camera with 23X zoom and NightVision
Low Cost Hi-Spec IR PTZ Camera with 23X zoom and NightVision
• 1/4" Sony CCD
-
SKU
-
DS-2AE-714
Description /

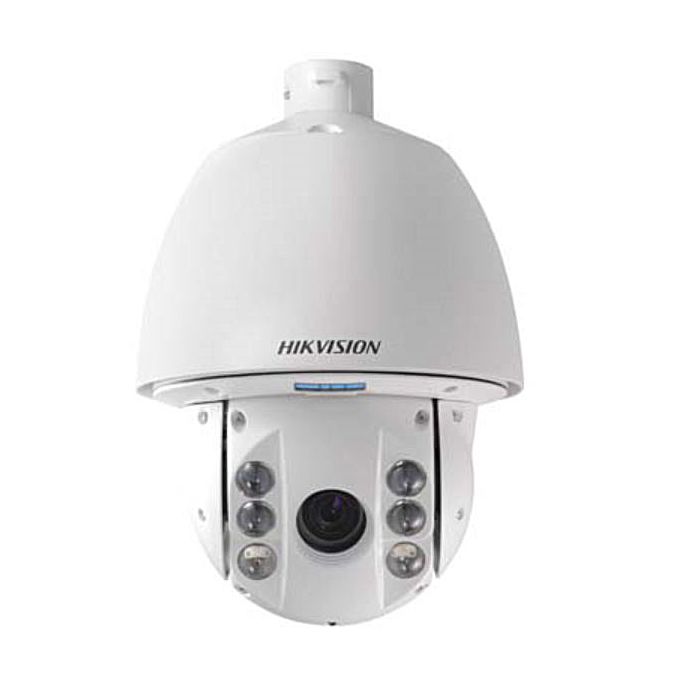

Low Cost Hi-Spec IR PTZ Camera with 23X zoom and NightVision
We've done it again! The lowest priced PTZ CCTV Camera with Built-in IR Night-Vision ever seen in Ireland. This is a full-sized dome with a 23X Optical zoom with 60-80 Metre NightVision, from the HIKVision Stable - The world's No. 1 CCTV company - and all at an amazingly low price!! IR PTZ cameras use the latest cutting-edge technology and are normally very expensive. But this is the cost-effective DS-2AE-714.
Read the Sepcifications here:
The Built-in Infra-Red Lights let this camera see in total darkness for upto 80 metres:
-
• 1/4" Sony CCD
• 128x wide dynamic range
• 540TVL high resolution
• True day / night
• 80m IR range
• 3D digital noise reduction
• IP66 rating
HIKVision Ds-2AE-714 Specifications:
|
Camera |
|
Image Sensor: |
1/4" SONY CCD |
|
Effective Pixels: |
PAL:752(H)×582(V); NTSC:768(H)×494(V) |
|
Horizontal Resolution: |
Color: 540 TVL
B/W: 600 TVL |
|
Signal System: |
PAL/NTSC |
|
Min.illumination: |
Color: 0.1Lux@( F1.6,AGC ON)
B/W: 0.01Lux@( F1.6,AGC ON)
0 Lux with IR |
|
White Balance: |
Auto / Manual / ATW |
|
AGC: |
Auto/Manual |
|
S/N Ratio: |
≥ 50dB |
|
DNR: |
3D DNR |
|
WDR: |
128x (on / off / auto) |
|
Shutter time: |
PAL: 1/50-1/10,000s, NTSC: 1/60-1/10,000s |
|
Day&Night: |
ICR |
|
Digital Zoom: |
16x |
|
Privacy Masking: |
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
|
Focus Mode: |
Auto / Semi-automatic / Manual |
|
|
Lens |
|
Focal Length: |
3.84-88.32mm, 23X |
|
Zoom Speed: |
Approx.3.0s(Optical Wide-Tele) |
|
Angle of View: |
50.2-2.44degree(Wide-Tele) |
|
Minimum Working Distance: |
10-1500mm (Wide-Tele) |
|
Aperture Range: |
F1.6 |
|
|
Pan & Tilt |
|
Pan Range: |
360° endless |
|
Pan Speed: |
Pan Manual Speed: 0.1°-120°/s,
Pan Preset Speed: 150°/s |
|
Tilt Range: |
0°~90° , support auto flip |
|
Tilt Speed: |
Tilt Manual Speed: 0.1°-60°/s,
Tilt Preset Speed: 90°/s |
|
Proportional Zoom: |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Number of Preset: |
255 |
|
Patrol: |
4 patrols, up to 32 presets per patrol |
|
Pattern: |
4 patterns, with the total recording time not less than 10 minutes |
|
Power-off Memory: |
Support |
|
Park Action: |
Preset / Patrol / Pattern / Pan scan |
|
PTZ Position Display: |
ON/OFF |
|
Compass: |
Support , the north can be set |
|
Scheduled Task: |
Preset / Patrol / Pattern / Pan scan |
|
RS-485 communication diagnosis: |
Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text |
|
Manchester code communication diagnosis: |
Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in text |
|
|
Infrared |
|
IR Range: |
80m |
|
IR irradiation angle: |
Adjustable by zoom |
|
|
Input & Output |
|
Monitor Output: |
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC |
|
|
General |
|
Menu Language: |
English / Chinese |
|
RS-485 Protocols: |
HIKVISION, Pelco-P, Pelco-D, self-adaptive |
|
Power Consumption: |
Max.15W, 30W(IR LED On, Heater On) |
|
Working Temperature /Humidity: |
-30°C-65°C(-22°F-149°F)(outdoor dome)
90% or less |
|
Protection Level: |
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Mounting: |
Various mounting modes option |
|
Dimensions: |
Φ245 ×376mm (Φ9.65” ×14.80” ) (Outdoor) |
|
Weight(approx.): |
5.5kg(12.13lbs) |
|
Mount Option: |
Long-arm wall mount: DS-1614ZJ; Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ |
|
