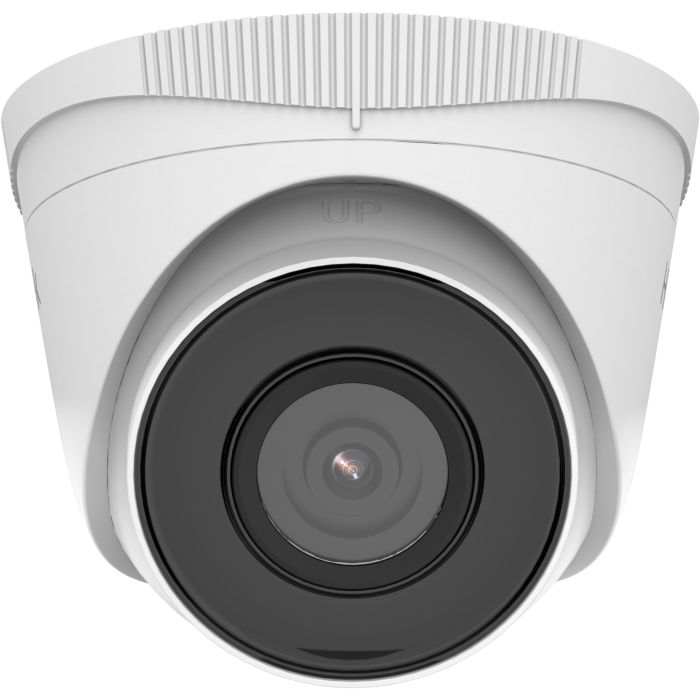

IPC-T250H-M Hikvision HiLook 5 MP IP Fixed Turret Network Camera

Camera

Image Sensor: 1/2.7" progressive scan CMOS
Max. Resolution: 2560 × 1920
Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV: 2.8 mm, horizontal FOV 98.0°, vertical FOV 71.7°, diagonal FOV 127.0°; 4 mm, horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
Lens Mount: M12
Iris Type: Fixed
Aperture: F2.0

Illuminator

Supplement Light Type: IR
Supplement Light Range: Up to 30 m
IR Wavelength: 850 nm

Video

Main Stream: 50 Hz: 20 fps (2560 × 1920); 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1920); 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG
Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile/Main Profile/High Profile
H.265 Type: Main profile
Region Of Interest (ROI): 1 fixed region for main stream

Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View: Up to 6 channels
API: Open Network Video Interface, ISAPI
User/Host: Up to 32 users. 3 levels: administrator, operator and user; 3 user levels: administrator, operator, and user
Client: iVMS-4200, Hik-Connect
Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+


Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch: Auto, Schedule, Day, Night
Wide Dynamic Range (WDR): 120 dB
Image Enhancement: BLC, 3D DNR

Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event: Motion detection, video tampering alarm, exception
Linkage: Upload to FTP, notify surveillance center, send email

General

Power: 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension: Ø110mm × 93.2 mm (Ø4.3" × 3.7")
Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight: Approx. 320 g (0.7 lb.)
With Package Weight: Approx. 550 g (1.2 lb.)
Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language: English, Ukrainian
General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval

EMC:

FCC SDoC: 47 CFR Part 15, Subpart B;

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014;

RCM: AS/NZS CISPR 32: 2015;

IC VoC: ICES-003: Issue 7;

KC: KN 32: 2015, KN 35: 2015
SafetyUL: UL 62368-1;

CB: IEC 62368-1:2014+A11;

CE-LVD: EN 62368-1:2014/A11:2017;

BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
EnvironmentCE-RoHS: 2011/65/EU;

WEEE: 2012/19/EU;

Reach: Regulation (EC) No 1907/2006
Protection: IP67: IEC 60529-2013
