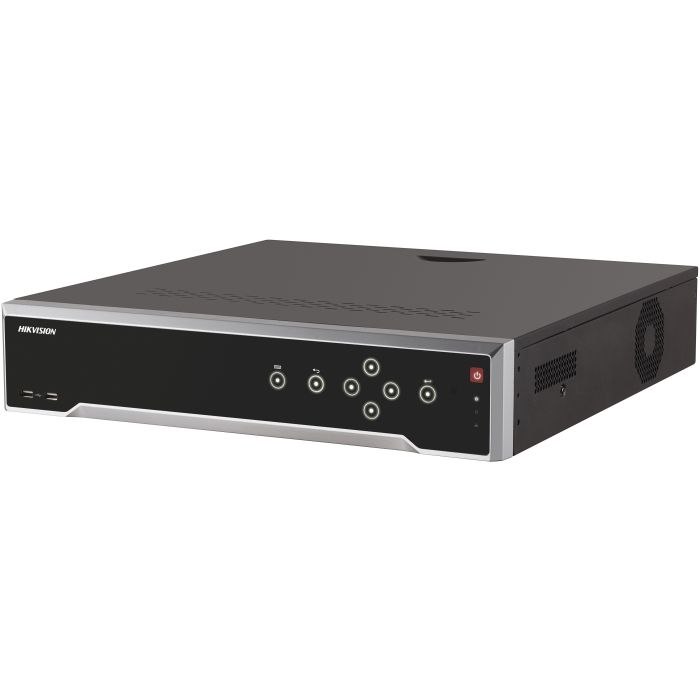

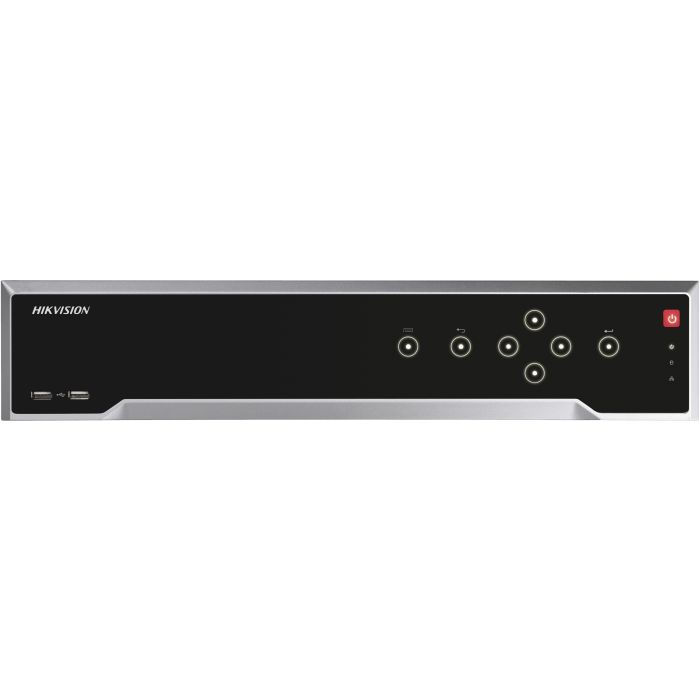

IDS-7732NXI-I4 12MP Deep Learning NVR with Human Body Detection AI
Description / IDS-7732NXI-I4 12MP Deep Learning NVR with Human Body Detection AI
Human Body Detection
- -lDeep learning-based analysis: re-recognition of the human body target in behavior detection to filter false alarm
Professional and Reliable
- -lNew logical and visualized GUI design
- -lDual-OS design to ensure high reliability of system running
- -lANR technology to enhance the storage reliability when the network is disconnected
Compression and Recording
- -lH.265+ compression effectively reduces the storage space and costs by up to 75%
- -lFull channel recording at up to 12MP resolution
Storage and Playback
- -lUp to 4 SATA interfaces for HDD connection
- -l12-ch synchronous playback at up to 1080p resolution
- -lNormal/Important/Custom video playback
- -lFiles management
- -lHDD health monitoring
Smart &POS Function
- -lSupports multiple VCA (Video Content Analytics) events
- -lSmart search for the selected area in the video; and smart playback to improve the playback efficiency
- -lPOS information overlay on live view and playback
- -lPOS triggered recording and alarm
|
_______________________________________________________________________________________________________________________________________ General |
||
|
Consumption (without hard disk): |
≤30 W |
|
|
Max. Power: |
≤ 300 W |
|
|
Working humidity: |
10 to 90 % |
|
|
Working temperature: |
-10 to +55º C (+14 to +131º F) |
|
|
Chassis : |
19-inch rack-mounted 1.5U chassis |
|
|
Weight (without hard disk): |
≤ 5 kg (11 lb) |
|
|
Power supply : |
100 to 240 VAC |
|
|
Dimensions (W × D × H): |
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
|
|
_______________________________________________________________________________________________________________________________________ Human Body/Face Detection and Analysis |
||
|
False alarm filtering : |
False alarm filtering and picture re-recognition for up to 8-ch behavior (line crossing and intrusion) detection |
|
|
Human body detection : |
False alarm filtering and picture re-recognition for human body detection |
|
|
_______________________________________________________________________________________________________________________________________ Video/Audio input |
||
|
Outgoing bandwidth: |
200 Mbps |
|
|
IP video input: |
16-ch(7716) |
|
|
Incoming bandwidth: |
256 Mbps |
|
|
_______________________________________________________________________________________________________________________________________ Video/Audio output |
||
|
CVBS output (Optional): |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
|
VGA1 /HDMI1 output: |
HDMI:4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K ( )1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
Audio output: |
1-ch, RCA (Linear, 1 KΩ) |
|
|
_______________________________________________________________________________________________________________________________________ External interface |
||
|
Alarm in : |
16 |
|
|
Two-way audio: |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
|
USB interface: |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
|
Serial interface: |
RS-485 (half-duplex), RS-232, Keyboard |
|
|
Alarm out: |
8 |
|
|
Network interface: |
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces |
|
|
_______________________________________________________________________________________________________________________________________ Decoding |
||
|
Decoding format : |
H.265/H.265+/H.264/H.264+/MPEG4 |
|
|
Live view/Playback resolution: |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
|
|
Synchronous playback: |
16-ch |
|
|
Capability : |
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 12-ch @ 1080p (30fps) |
|
|
_______________________________________________________________________________________________________________________________________ Hard disk |
||
|
Capacity: |
Up to 6TB capacity for each HDD |
|
|
SATA: |
4 SATA interfaces for 4HDDs |
|
|
eSATA: |
1 eSATA interface |
|
More Information
| Manufacturer | HIKVision |
|---|
