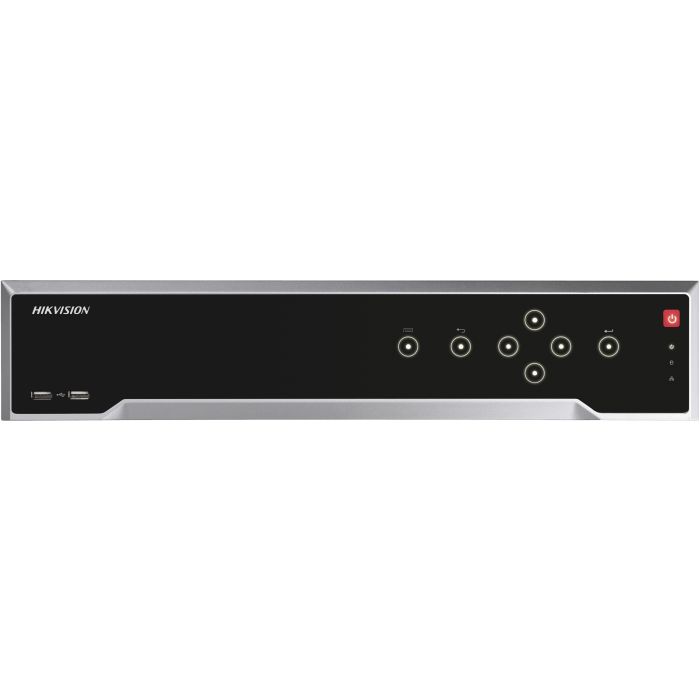

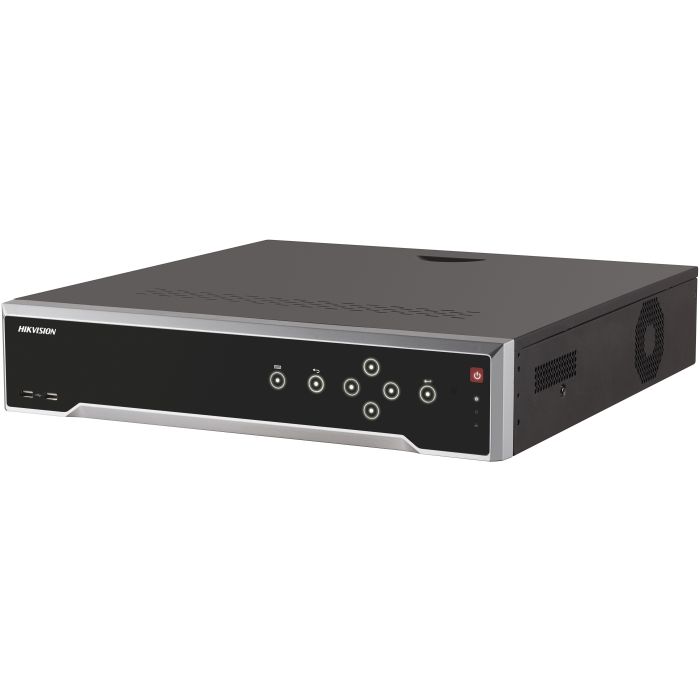

iDS-7716NXI-I4 16 Channel 12MP Deep Learning NVR with Human Body Detection AI
Description / iDS-7716NXI-I4 16 Channel 12MP Deep Learning NVR with Human Body Detection AI
Human Body Detection
- -Deep learning-based analysis: re-recognition of the human body target in behavior detection to filter false alarm
Professional and Reliable
- -New logical and visualized GUI design
- -Dual-OS design to ensure high reliability of system running
- -ANR technology to enhance the storage reliability when the network is disconnected
Video Input and Transmission
- -Full channel IP cameras connection
- -Connectable to the third-party network cameras
Compression and Recording
- -H.265+ compression effectively reduces the storage space and costs by up to 75%
- -Full channel recording at up to 12MP resolution
HD Video Output
- -HDMI and VGA independent outputs provided
- -HDMI Video output at up to 4K (3840 × 2160) resolution
Storage and Playback
- -Up to 4 SATA interfaces for HDD connection
- -12-ch synchronous playback at up to 1080p resolution
- -Normal/Important/Custom video playback
- -Files management
- -HDD health monitoring
|
_______________________________________________________________________________________________________________________________________ Video/Audio Input |
||
|
IP video input: |
16-ch |
|
|
_______________________________________________________________________________________________________________________________________ Network |
||
|
Incoming bandwidth: |
256Mbps |
|
|
Remote connection: |
128 |
|
|
_______________________________________________________________________________________________________________________________________ Video/Audio Output |
||
|
CVBS Output: |
1-ch, BNC(1.0Vp-p, 75Ω) |
|
|
Recording Resolution: |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
|
Audio Output: |
1-ch, RCA (Linear, 1kΩ) |
|
|
_______________________________________________________________________________________________________________________________________ Decoding |
||
|
Live view / Playback: |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
|
_______________________________________________________________________________________________________________________________________ Hard Disk |
||
|
eSATA: |
1 eSATA interface |
|
|
SATA: |
4 SATA interfaces for 4HDDs |
|
|
Capacity: |
Up to 6TB capacity for each HDD |
|
|
_______________________________________________________________________________________________________________________________________ External Interface |
||
|
Network Interface: |
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
|
|
Serial Interface: |
RS-232, RS-485, Keyboard |
|
|
USB Interface: |
Front panel: 2 × USB 2.0 |
|
|
Alarm In: |
16-ch |
|
|
Alarm Out: |
8-ch |
|
|
_______________________________________________________________________________________________________________________________________ POE |
||
|
Max. Power: |
200W |
|
|
Supported Standard: |
AF and AT |
|
|
_______________________________________________________________________________________________________________________________________ General |
||
|
Power Supply: |
100 to 240 VAC |
|
|
Consumption(without hard disk and POE): |
≤ 30 W |
|
|
Working Temperature: |
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
|
|
Working Humidity: |
10 % ~ 90 % |
|
|
Chassis: |
19-inch rack-mounted 1.5U chassis |
|
|
Dimensions: |
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
|
|
Weight(without HDD): |
≤ 5 kg (11 lb) |
|
More Information
| Manufacturer | HIKVision |
|---|
