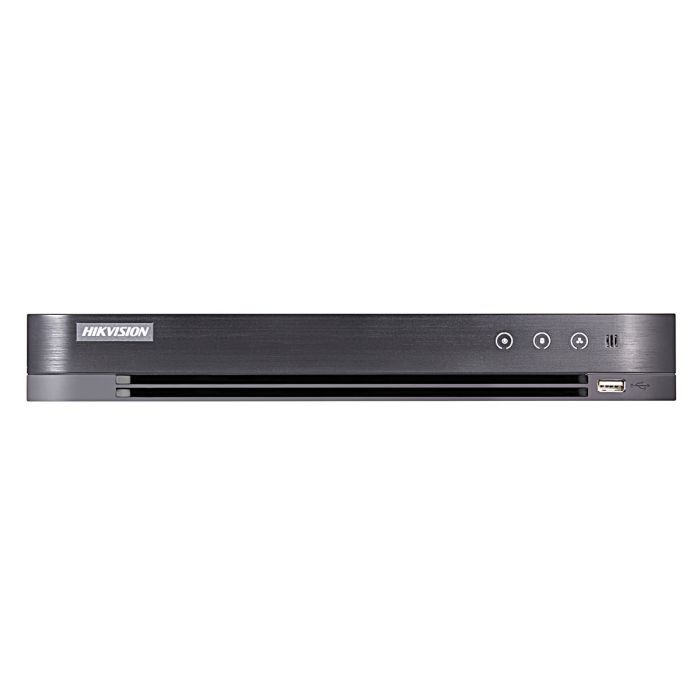

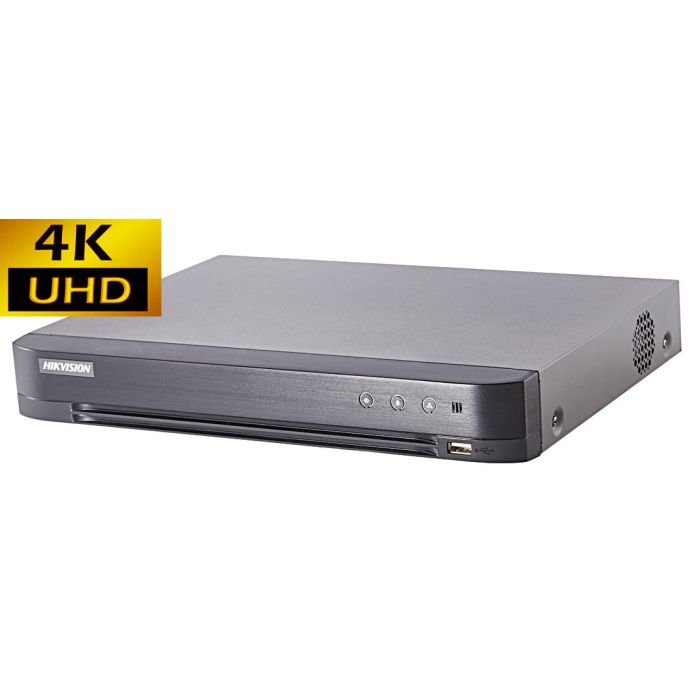

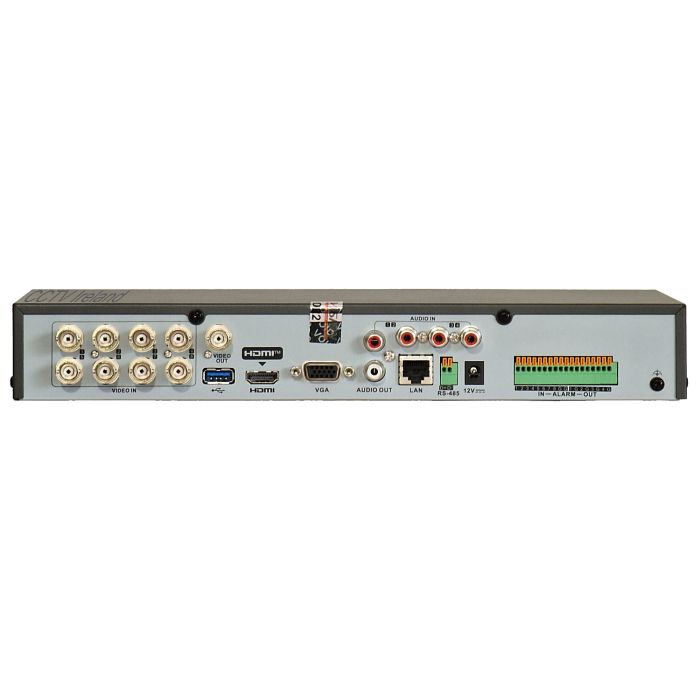

iDS-7208HUHI-M1/XT 8 Mega-Pixel 8 Channel 4K Turbo DVR & 2TB Hard Drive Bundle

iDS-7208HUHI-M1/XT High Definition 4K CCTV recorder.

This is the very high specification iDS-7208HUHI-M1/S recorder, that can take cameras up to 8MP in super High-Resolution, more than twice as sharp as most TVI recorders. It has Ai AcuSense built-in which can detect humans & Vehicles to reduce false alarms by about 90%.

Comes bundled with a 2TB Surveillance Hard Drive. Larger Hard Drives are available on request.

The Hik-Connect app is free and there are no subscription charges. We can program the Hik-Connect app for you for a small fee, see the options available. Note that this programming is totally optional - you can do it yourself if you are comfortable with setting up apps and changing the remote settings on the recorder.

• 8 channels and 1 HDD 1U AcuSense DVR
• False alarm reduction by human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
• Up to 16 network cameras can be connected.

iDS-7208HUHI-M1/S specifications:

Motion Detection 2.0

• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

Perimeter Protection

• Human/Vehicle Analysis: Up to 4-ch

Facial Detection

• Facial Detection And Capture: Face picture detection, face picture search

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input

  4-ch (up to 12-ch)

  Up to 8 MP resolution

  Enhanced IP mode on:

  8-ch (up to 16-ch), each up to 4 Mbps

  ;Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output

  1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS Input: PAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronous Playback: 8-ch
• HDTVI Input: 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input: 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output

  1-ch, 1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

• HDCVI Input: 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Total Bandwidth: 128Mbps
• Network Protoco: lTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection: 64
• Network Interface

  1,RJ45 10M/100M/1000M self-adaptive

  Ethernet interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface

  1 × USB 2.0；

  1 × USB 3.0

• Alarm In/Out: N/A

General

• Power Supply: 12 VDC
• Consumption: ≤ 10 W
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight: ≤ 2 kg (4.4 lb)
