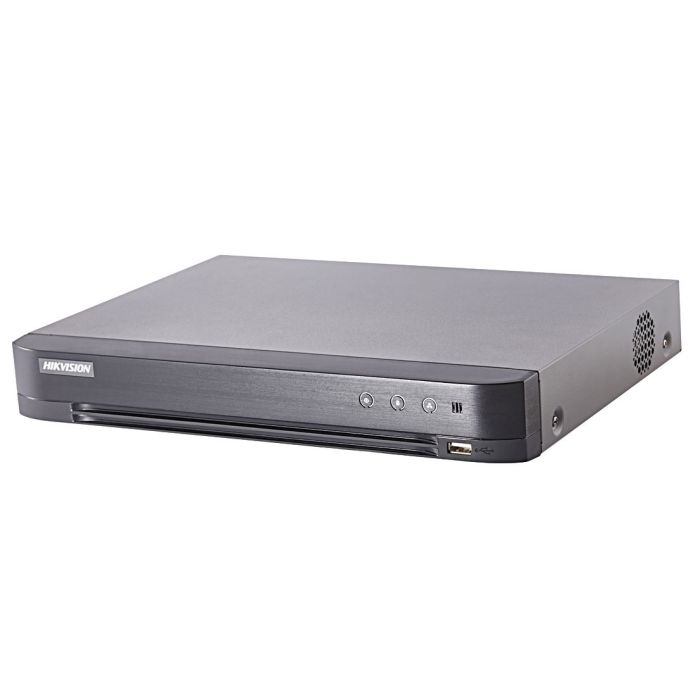

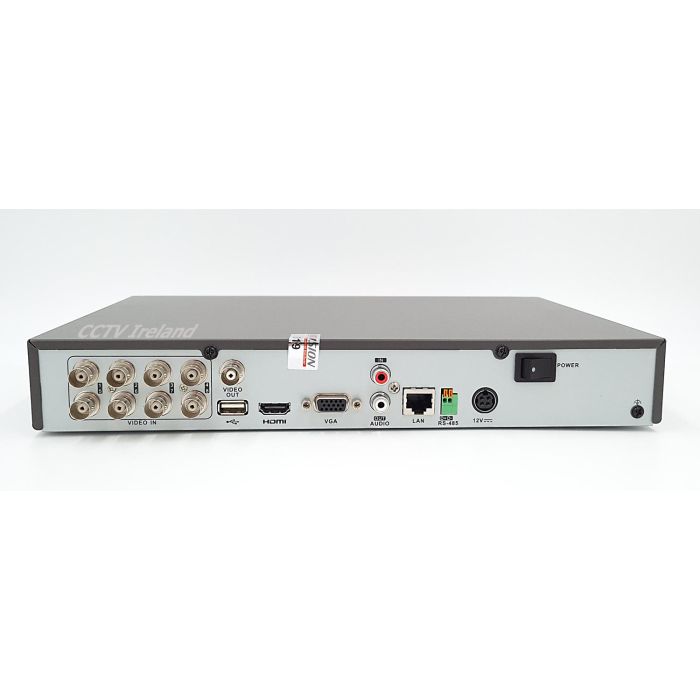

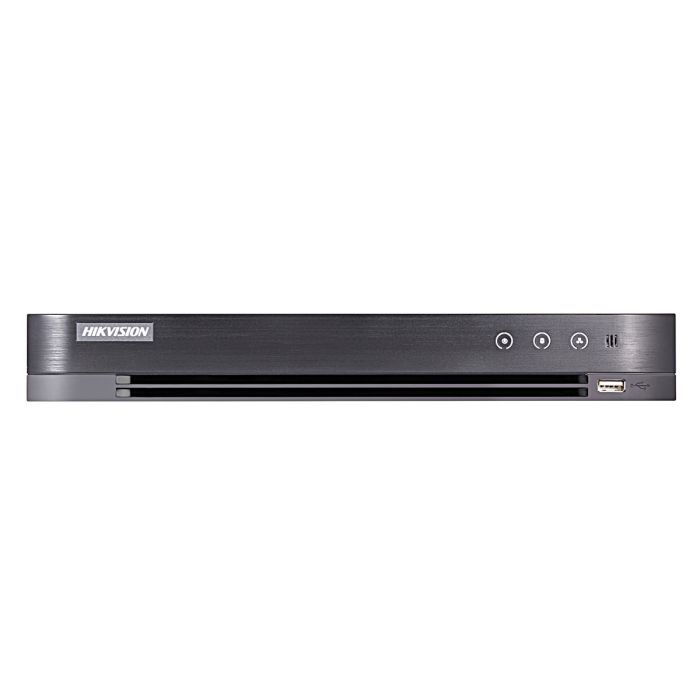

iDS-7208HQHI-K1/4S 2TB 8 Channel Turbo Full HD DVR from HIKVision

iDS-7208HQHI-K1/4S 8 Channel Professional DVR that can take TVI, AHD, HDCVI and CVBS analogue cameras as well as 2 IP Cameras up to 4MP. The recorder has it all: easy to use, easy playback, easy remote setup, P2P, no need for a static IP anymore. No need for complicated port forwarding anymore when you use HIKVision recorders.

This is the new Ai version for 2022. It has great extra features such as:

• H.265 & H.265+ compression for much better Hard Drive efficiency - up to 80% longer recording times
• 4 MP Full HD Recording on all cameras
• Up to 4MP recording on 4 X IP cameras, (for a total of twelve cameras)

 This is the budget version of the higher-spec iDS-7208HUHI-K1 DVR

Comes with 2TB Seagate Surveillance Hard Drive as standard, select 4TB in options if required.

iDS-7208HQHO-K1 Eight Channel HD Recorder with 2TB Seagate Surveillance Hard Drive.

3 Year Warranty.

This is the very latest Eight Channel CCTV Recorder from HIKVision. It supports the newsest H.265 and H.265+ codec, plus H.264 & H.264+.

2MP Full HD 1080p quality & 4MP on all channels.

Built-in FREE cloud P2P for easy remote viewing.

The New H.265+ Codec uses a lot less Hard Drive storage:

 Featuring new Long-Distance Cable run Capabilites, up to 800m over coax at Full 1080p HD, and up to 1.2KM at 720p HD. Now that's impressive!!

FEATURES:

• H.265+/H.265/H.264+/H.264 encoding for the main stream
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• Up to 4MP resolution for recording
• Long distance transmission over UTP and coaxial cable
• 8-ch synchronous playback

CLICK HERE FOR THE DS-7208HQHI-K2 PDF:

Click on each image for full size version

THIS IS WHAT IS LOOKS LIKE ON THE FREE MOBILE APP:

Tap to View Single Camera Screen:

Maximise for Full Screen:

Tap Again For Single Camera:

Single Camera Full Screen:

Zoom In With Fingers:

And Again:

iDS-7208HQHI-K1/4S Specifications:

• Recording
• Encoding Resolution

  Main stream:

  When 1080p lite mode not enabled:

  For 4 MP stream access:

  4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

  For 1080p stream access:

  1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  When 1080p Lite mode enabled:

  4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)



• Video Bit Rate32 Kbps to 6 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps

• Video And Audio
• IP Video Input

  2-ch (up to 10-ch)



  IP enhanced mode on:

  4-ch (up to 12-ch), each up to 4 Mbps

• AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS InputPAL/NTSC
• HDMI/VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  1024 × 768/60Hz, HDMI/VGA simultaneous output



• Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback8-ch
• HDTVI Input

  3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

  *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S(B), for channel 1/2 of iDS-7208HQHI-K1/4S(B), and for channel 1/2/3/4 of iDS-7216HQHI-K1/4S(B).



• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,

• Network
• Remote Connections128
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Alarm In/OutN/A
• USB Interface2 × USB 2.0

• General
• Power Supply12 VDC
• Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity10% to 90%
• Weights (Without HDD)≤ 1.78 kg (3.9 lb)
• Consumption(Without HDD)≤ 18 W
• Dimensions(W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
