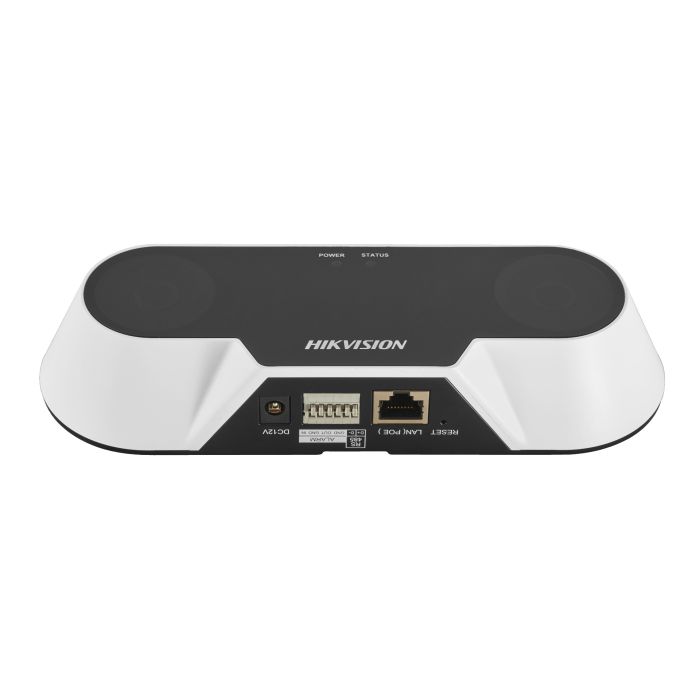

iDS-2CD6810F/C Indoor Dual-Lens People Counting Camera

Click Here for the PDF Specifications!

SPECIFICATIONS:

• Image Sensor1/3″ Progressive Scan CMOS
• Shutter Speed1/25 s to 1/10,000 s
• Digital Noise Reduction3D DNR
• Auto-IrisManual

Lens:

• Aperture2 mm: F2.2 2.8 mm: F2.0 4 mm: F2.2
• FOV2 mm: horizontal FOV 105°, vertical FOV 89° 2.8 mm: horizontal FOV 83°, vertical FOV 68° 4 mm: horizontal FOV 63°, vertical FOV 55°
• Lens MountM12
• Focal Length2 mm, 2.8 mm and 4 mm, optional

Image:

• Image Enhancement3D DNR
• Image SettingBrightness and sharpness are adjustable by client software or web browser
• Max. Resolution640 × 960
• Main StreamMax. Frame Rate50Hz: 25fps (640 × 480) 60Hz: 24fps (640 × 480)
• Sub-StreamMax. Frame Rate50Hz: 25fps (640 × 960) 60Hz: 24fps (640 × 960)

Network:

• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• APIISAPI, HTTP
• Simultaneous Live ViewUp to 6 channels
• User/HostUp to 32 users 3 levels: Administrator, Operator and User
• ClientiVMS-4200
• Web BrowserIE8+, Chrome31-44, Firefox 30.0 - 51
• Alarm TriggerVideo tampering, alarm input, alarm output, network disconnected, IP address conflict, illegal login
• General FunctionOne-key reset, anti-flicker, heartbeat, password protection, watermark

Interface:

• Communication Interface1 RJ45 10M/100M Ethernet port 1 RS-485 interface
• Alarm1 input, 1 output (up to 12 VDC 30mA)

Compression Standard:

• H.264 Compression TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain stream: H.264 Sub-stream: H.264
• Video Bitrate32 Kbps to 8 Mbps

General:

• Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
• Power Consumption And Current12 VDC, max. 5 W, 0.42 A PoE(802.3af 36 V to 57 V) , max. 7 W, 0.2 A to 0.13 A
• MaterialBody: metal; enclosure: plastic
• DimensionsCamera: 194 × 70.2 × 35.8 mm (7.64″ × 2.76″ × 1.4″) Package: 225 × 125 × 76 mm (8.86″ × 4.92″ × 2.99″)
• WeightApprox. 300 g (0.66 lb), 480 g (1.06 lb) with package
• Operating Conditions-10 °C to +40 °C (+14 °F to +104 °F), humidity 95% or less, no condensing
