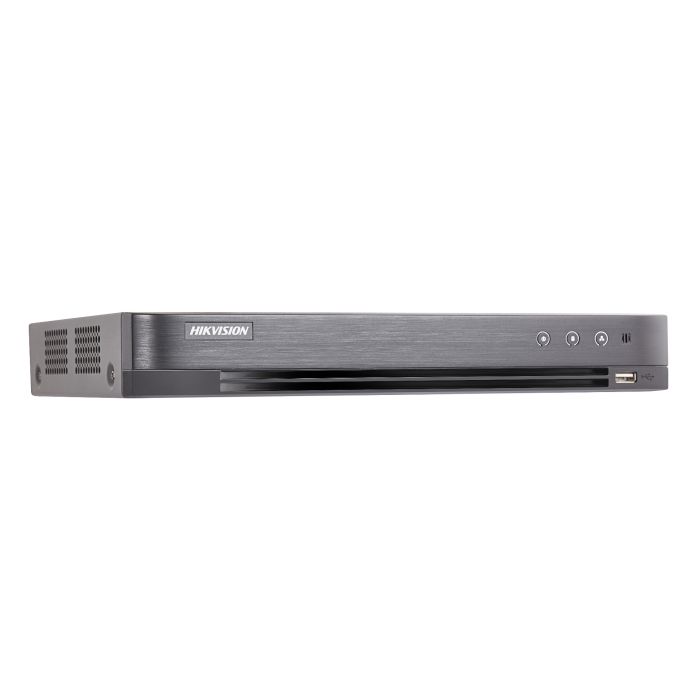

HIKVision iDS-7204HQHI-K1/2S 4 Channel 1TB Turbo DVR Recorder

Recording:

Encoding Resolution

Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bit Rate

32 Kbps to 6 Mbps

Dual Stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bit Rate

64 Kbps

Video And Audio:

IP Video Input

1-ch (up to 5-ch) IP enhanced mode on: 2-ch (up to 6-ch), each up to 4 Mbps

AHD Input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

HDCVI Input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

CVBS Input

PAL/NTSC

HDMI/VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

4-ch

HDTVI Input

3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-K1/2S(B), for channel 1/2 of iDS-7208HQHI-K1/4S(B), and for channel 1/2/3/4 of iDS-7216HQHI-K1/4S(B).

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,

Network:

Remote Connections

128

Network Interface

1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface:

SATA

1 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

Alarm In/Out

N/A

USB Interface

2 × USB 2.0

General:

Power Supply

12 VDC

Working Temperature

-10 °C to +55°C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Weights (Without HDD)

≤ 1.16 kg (2.6 lb)

Consumption (Without HDD)

≤ 18 W

Dimensions(W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
