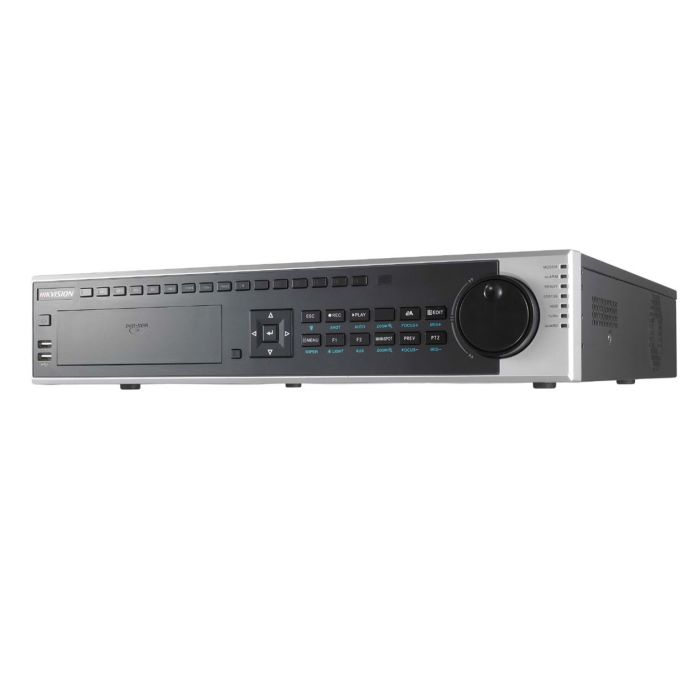

HIKVision DS-8608NI-ST 4TB 8 Channel Professional NVR
HIKVision DS-8608NI-ST 4TB 8 Channel Professional NVR
This is the old model for reference only
-
SKU
-
DS-8608NI-ST
Description /
HIKVision DS-8608NI-ST 4TB 8 Channel Professional NVR
Professional High Specification NVR Recorder.
20M input bandwidth (Up to 5MP resolution recording).
Up to 8 channel preview and synchronous playback.
HDMI. VGA & CVBS output.
2*USB 2.0.
RS485. RS232.
1 Gigabit NIC.
Alarm I/O: 16/4.
2U Case
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• Up to 8 SATA interfaces
• HDD quota and group management
HIKVisision DS-8608NI-ST Specifications:
|
Video/Audio Input
|
|
IP Video Input:
|
8-ch
|
|
Two-way Audio:
|
1-ch BNC(2.0Vp-p, 1kΩ)
|
|
|
Video/Audio Output
|
|
VGA Output:
|
1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
|
|
CVBS Output:
|
1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 × 576 (PAL); 704 × 480 (NTSC)
|
|
HDMI Output:
|
1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720
/60Hz, 1024 × 768 /60Hz
|
|
Recording resolution:
|
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
|
|
Audio Output:
|
2-ch BNC(Linear electrical level, 600Ω)
|
|
Playback Resolution:
|
5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF
|
|
Synchronous Playback:
|
8-ch
|
|
|
Hard Disk Driver
|
|
Interface Type:
|
8 SATA interfaces for 4 HDDs + 1 DVD-R/W (default), or 8HDDs
|
|
Capacity:
|
Up to 4TB capacity for each disk
|
|
e-SATA Interface:
|
1 eSATA interface
|
|
|
External Interface
|
|
Network Interface:
|
1 RJ45 10M/100M/1000M adaptive Ethernet Interface
|
|
USB Interface:
|
3 USB2.0 interfaces
|
|
Serial Interface:
|
1 RJ45 RS-232 interface; 1 RS-485 interface; 1 RS-485 keyboard interface
|
|
Alarm Input:
|
16-ch
|
|
Alarm Output:
|
4-ch
|
|
|
General
|
|
Power Supply:
|
100~240 VAC, 6.3A, 50~60Hz
|
|
Consumption:
|
≤35W
|
|
Working Temperature:
|
-10 °C ~ +55 °C
|
|
Working Humidity:
|
10%~90%
|
|
Chassis:
|
19-inch rack-mounted 2U chassis
|
|
Dimensions:
|
445 × 470 ×90 mm (17.52” ×18.5”× 3.54”)(W × D × H)
|
|
Weight:
|
≤ 8 kg ( without hard disk or DVD-R/W )
|
|
