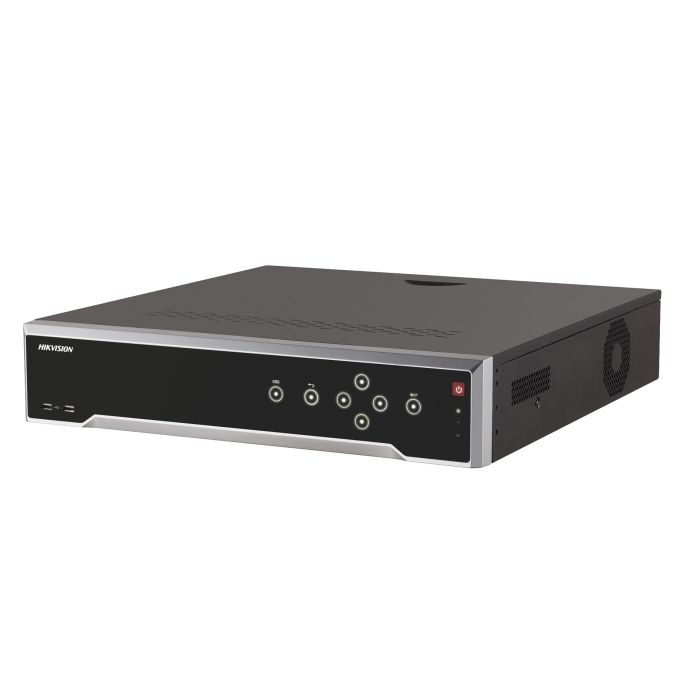

HIKVision DS-7732NI-I4/16P 32 Channel NVR Recorder with POE 4K

DS-7732NI-I4/16P 4K NVR for IP cameras up to 12MP for incredibly detailed recording, never miss the smallest detail again!

In stock

SKU
DS-7732NI-I4/16P
Quickly create a guest account to view prices

Description / HIKVision DS-7732NI-I4/16P 32 Channel NVR Recorder with POE 4K

Click Here for PDF Specifications.



Key Features:

  • - Up to 32 channel IP cameras can be connected
  • - Up to 2-ch @ 12 MP/16-ch @ 1080p decoding capacity
  • - 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
  • - 4 HDDs for continuous video recording
  • - Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
  • - Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
  • - Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
  • - Supports dual-stream recording to save time and bandwidth.



   SPECIFICATIONS:



Video And Audio:


  • IP Video Input

32-ch



Up to 12 MP resolution
  • Outgoing Bandwidth

256 Mbps
  • VGA Output

1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
  • CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI 1 Output

4K (3840 Ă— 2160)/60Hz, 4K (3840 Ă— 2160)/30Hz, 1920 Ă— 1080/60Hz, 1600 Ă— 1200/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
  • HDMI 2 Output

1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
  • Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • Incoming Bandwidth

256 Mbps
  • Audio Output

1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding:


  • Dual-Stream Recording

Support
  • Stream Type

Video, Video & Audio
  • Audio Compression

G.711ulaw/G.711alaw/G.722/G.726
  • Decoding Format

H.265+/H.265/H.264+/H.264/MPEG4
  • Decoding Capability

2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
  • Synchronous Playback

16-ch
  • Recording Resolution

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network:


  • Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Remote Connection

128
  • Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE:


  • Interface

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power

≤ 200 W
  • Standard

IEEE 802.3 af/at

Auxiliary Interface:


  • ESATA

1 eSATA interface (optional)
  • SATA

4 SATA interfaces
  • Capacity

Up to 10 TB capacity for each disk
  • Serial Interface

1 RS-485 (half-duplex), 1 RS-232
  • USB Interface

Front panel: 2 Ă— USB 2.0; Rear panel: 1 Ă— USB 3.0
  • Alarm In/Out

16/4 (16/8 optional)

General:


  • Power Supply

100 to 240 VAC, 50 to 60 Hz
  • Consumption

≤20 W (without HDD and PoE off)
  • Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity

10% to 90%
  • Chassis

19-inch rack-mounted 1.5U chassis
  • Dimension (W Ă— D Ă— H)

440 Ă— 387 Ă— 75 mm ( 17.3"Ă— 15.2" Ă— 3.0")
  • Weight

≤ 5 kg (11 lb) (without HDD)

Certification:


  • FCC

Part 15 Subpart B, ANSI C63.4-2014
  • CE

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
