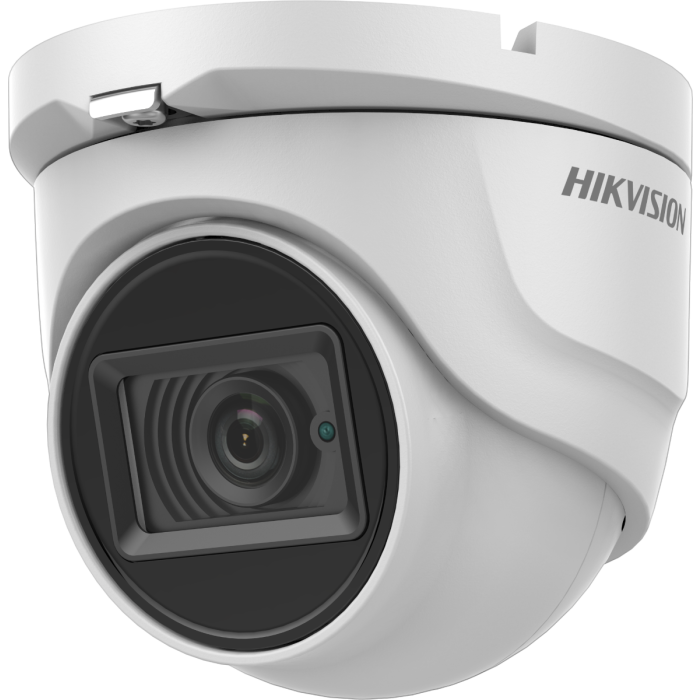

HIKVision DS-2CE76H8T-ITMF Mini-dome 5MP Turbo Turret Camera

 The HIKVision DS-2CE76H8T-ITMF is a fixed mini-turret camera, that can capture high-quality images in ultra-low light.

Out of stock

SKU
DS-2CE76H8T-ITMF
Quickly create a guest account to view prices

Description / HIKVision DS-2CE76H8T-ITMF Mini-dome 5MP Turbo Turret Camera

Key Features:



  • - 5 MP high performance turret camera
  • - Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • - Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • - 3D DNR technology delivers clean and sharp images
  • - EXIR 2.0: advanced infrared technology with 30 m IR distance
  • - Water and dust resistant (IP67)
  • - 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)



 This is the mini-dome version of the DS-2CE78H8T-IT3F, it's about 30% smaller and more discreet.

Click here for PDF Specifications!





SPECIFICATIONS:



Camera:
  • Image Sensor

5 megapixel progressive scan CMOS
  • Max. Resolution

2560 (H) Ă— 1944 (V)
  • Min. Illumination

0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & Night

IR Cut Filter
  • Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
  • Signal System

PAL/NTSC

Lens:
  • Lens Type

2.8 mm, 3.6 mm, 6 mm fixed lens
  • Focal Length & FOV

98° (2.8 mm), 78° (3.6 mm), 48° (6 mm)
  • Lens Mount

M12

Illuminator:
  • Supplement Light Type

IR
  • Supplement Light Range

Up to 30 m

Image:
  • Image Settings

Brightness;Sharpness;Mirror;Smart IR;AGC
  • Frame Rate

TVI: 2 MP@25 fps, 2 MP@30 fps, 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps

AHD: 4 MP@25 fps, 4 MP@30 fps, 5 MP@20 fps

CVI: 4 MP@25 fps, 4 MP@30 fps

CVBS: PAL, NTSC
  • Day/Night Mode

Auto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)

≥130 dB
  • Image Enhancement

BLC
  • Privacy Mask

4 programmable privacy masks
  • Noise Reduction

3D DNR
  • White Balance

Auto/Manual

Interface:
  • Video Output

Switchable TVI/AHD/CVI/CVBS;1 HD analog output

Event:
  • Motion Detection

4 programmable motion areas

General:
  • Power

12 VDC ± 25%, max. 5.8 W

*You are recommended to use one power adapter to supply the power for one camera.
  • Material

Metal
  • Dimension

90 mm Ă— 79.37 mm (3.54" Ă— 3.12") Approx. 300 g (0.66 lb.)
  • Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • Communication

HIKVISION-C
  • Language

English

Approval:
  • Protection

IP67
