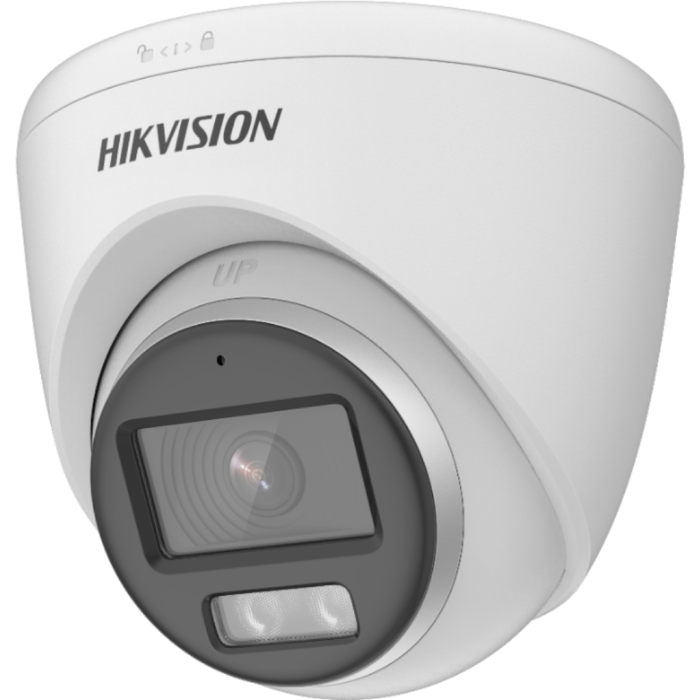

Hikvision DS-2CE72KF0T-LFS 5MP Turbo ColourVu Turret Camera

Camera:

• Image Sensor

3K CMOS

• Signal System

PAL/NTSC

• Resolution

2960 (H) × 1665 (V)

• Frame Rate

TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps

AHD: 5 MP@20fps, 4 MP@25fps/30fps

CVI: 4 MP@25fps/30fps

CVBS: PAL/NTSC

• Min. Illumination

0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

• Shutter Time

PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

• Lens

2.8 mm and 3.6 mm fixed focal lens

• Field Of View

2.8 mm, horizontal FOV: 102°, vertical FOV: 56°, diagonal FOV: 122°

3.6 mm, horizontal FOV: 80°, vertical FOV: 45°, diagonal FOV: 96°

• Lens Mount

M12

• Light Alarm

Solid Light Alarm (White Light)

• Day & Night

24/7 Color Imaging

• WDR (Wide Dynamic Range)

Digital WDR

• Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Image:

• White Light

Auto/Off

• Image Mode

STD/HIGH-SAT/HIGHLIGHT

• AGC

Yes

• Day/Night Mode

Colour

• White Balance

Auto/Outdoor/Global/Manual

• AE (Auto Exposure) Mode

BLC;HLC;Global;HLS;DWDR

• Noise Reduction

2D DNR

• Language

English

• Function

Defective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light

Interface:

• Video Output

Switchable TVI/AHD/CVI/CVBS

• Audio In

Built-in mic

General:

• Operating Conditions

-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)

• Power Supply

12 VDC ± 25%,

*You are recommended to use one power adapter to supply the power for one camera.

• Consumption

Max. 3.5 W

• Protection Level

IP67

• Material

Main body: Metal, Enclosure: Plastic

• White Light Range

Up to 40 m

• Communication

HIKVISION-C

• Dimension

Φ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87") Approx. 318 g (0.70 lb.)
