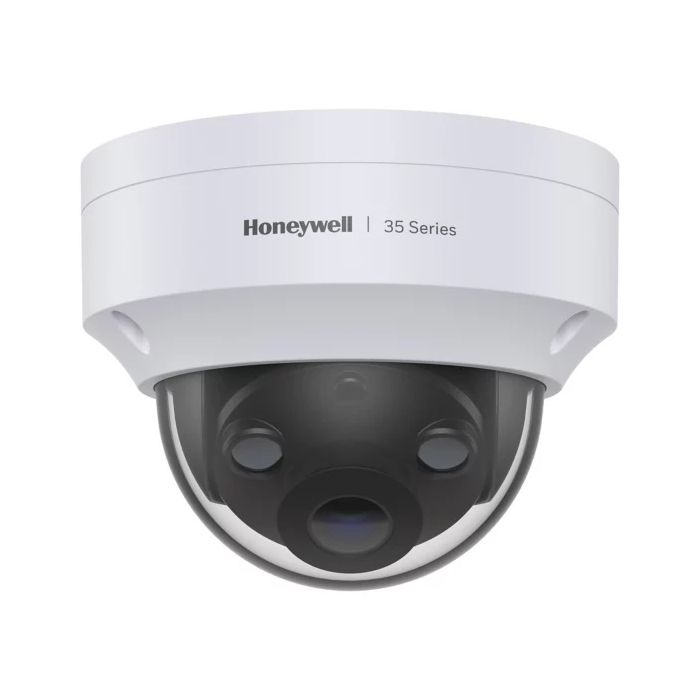

HC35W45R3 35 Series WDR 5 MP IR Fixed Dome

OPERATIONAL

Video Standard: NTSC / PAL
Scanning System: Progressive
Image Sensor: 1/2.8” CMOS
Sensor Size (H x V): 5.184 mm x 3.888 mm
Number Of Pixels(H x V): 2592 x 1944
Minimum Illumination (Color/BW): 0.007 Lux / F2.0 (Color,30 IRE), 0 Lux / F2.0 (IR ON)
S/N Ratio: 50 dB
Electronic Shutter Speed: 1/8 ~ 1/32,000
IR Distance: up to 40 M
IR Light Control: Smart IR (Auto/Manual)/OFF
IR Light Number: 2
Day/Night: Auto (ICR) / Color / BW
Backlight Compensation: WDR, BLC, HLC
White Balance: Auto / Tungsten / Fluorescent / Daylight / Shadow / Manual
Gain Control: 0-100%
Wide Dynamic Range: 120 dB
Noise Reduction: 2D / 3D DNR
Lens: 2.8 mm, Fixed Iris, F2.0
Angle Of View: H:93°, V:68°
Privacy Masking: Off / On (4 Areas)
Defog: Supported
Local Storage: Micro SD (up to 256 GB)
Alarm Inputs/Outputs: 1 In / 1 Out
Pan Range: 0°-330°
Tilt Range: 0°-75°
Rotation Range: 0°-337°

VIDEO

Video Compression: H.265 HEVC/H.264/MJPEG, Smart Codec
Resolution: 1st: 2592 x 1944 / 2592 x 1520 / 1920 x 1080 / 1280 x 720, 2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC), 3rd: 1920 x 1080 (MAX 12fps) / 640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC) / 320 x 240
Number of Video Streams: 3 (2 for encryption)
Frame Rate: MAX 30 fps
Bit Rate: 100K~12 Mbps

AUDIO

Audio Compression: G.711A/G.711U
Audio Stream: 2-Way, Full duplex
Audio Interface: Line In/Out

NETWORK

Ethernet: 10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers: Chrome/Edge
Supported OS: Microsoft Windows 10
Protocols: IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast, SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability: ONVIF Profile G/S/T
Maximum Users Access: 10 Users
Security: User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCI-DSS compliance
Languages Supported: Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish

EVENTS / ANALYTICS

Built-in Video Analytics: People Counter, Multi Loitering, Intrusion, Tampering, Smart Motion Detection (SMD), Motion Detection

Event Type: Video motion detection, Alarm input, Recording notification, Tampering

Event Linkage: Event notification using digital output, Email and MicroSD card

Region Of Interest: 8

ELECTRICAL

Power Supply: DC12V, PoE (IEEE 802.3af) (Class 0)

Power Consumption (Max): MAX 4.08 W

MECHANICAL

Dimensions: Ø110.0 mm × 85.6 mm (Ø4.33” × 3.37”)

Dome Diameter: Ø78.2 mm (3.08”)

Product Weight: 0.56 kg (1.23 lb)

Package Weight: 0.65 kg (1.43 lb)

Body Material: Die-cast aluminium housing

Color: Camera Body: RAL 9003 (Signal White), Front/Lens Facings: Pantone Black

ENVIRONMENTAL

Operating Temperature: Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)

Relative Humidity: Less than 90 %, non-condensing

Ingress Protection: IP66/IP67

Impact Resistance: IK10

REGULATORY

Emissions: FCC PART 15, CE (EN 55032), Complies with RCM and UKCA

Immunity: CE(EN 50130-4), Complies with RCM and UKCA

Safety: UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA

RoHs: CE (EN 63000), UAE(Cabinet Decree No.10 of 2017)

Country of Origin: Vietnam
