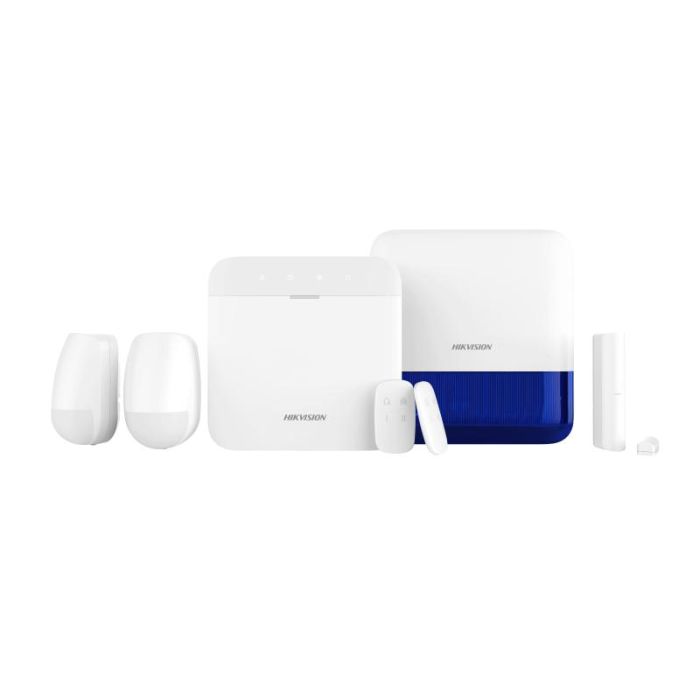

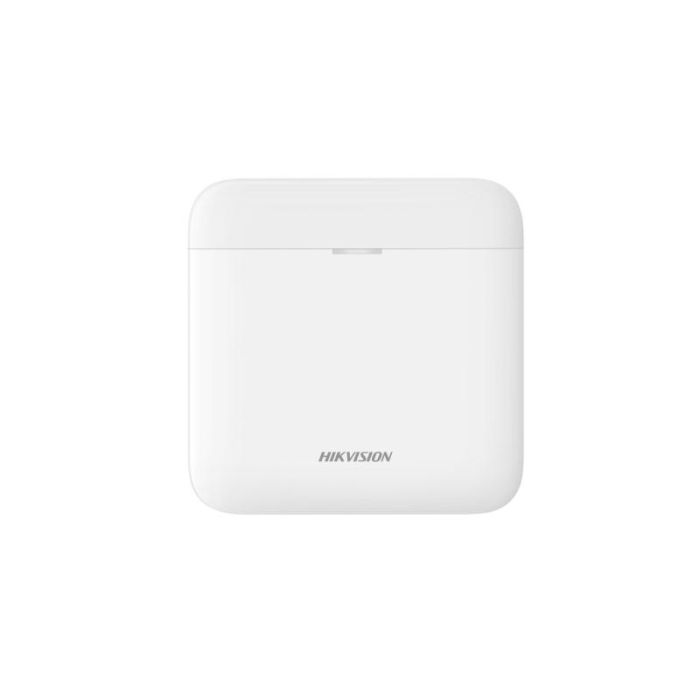

DS-PWA64-Kit1-WE AX PRO Alarm Kit (868MHz)
Description / DS-PWA64-Kit1-WE AX PRO Alarm Kit (868MHz)
-
Software features
- Tag: 32
- Area: 16
- Zones: 64 (up to 48 PIRCAMs)
- Installer: 1
- User: 30
- Admin: 1
- Voice Prompt: Supported
- Loudspeaker built in: Supported
- Memory Log stored: 5000
- Programming tools: Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
- Firmware upgrade: APP/Web Portal
- Arm modes: Away/Stay
- Automatic Arm/Disarm Timers: Supported
- Forced Arming with Open Zones: Supported
- Diagnostics via the APP or Web: Supported
- ARC protocol: SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK), Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685), Supports video verification and remote control
- User APP for operating: Supported
- Installer APP for programming: Supported
- Web server for maintenance (offline configuration): Supported
-
Hardware features
- RS232 output: Supported
- SIM slot: Single
-
RF transmission
- RF Frequency: 868Mhz
- Wireless Security: Frequency Hoping 128 AES Encryption
- GPRS on board: Supported
-
Electrical characteristics
- Power supply: Built in power supply
- Battery type: Built in on board Battery Li
- Battery life span: Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
-
Wireless transmission
- Wired network: Supported
- Wi-Fi Standard: Supported
-
Display
- LEDs Status: Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power
-
General
- Operation temperature: -10 °C to +55 °C
- Shell material: Plastic
- Dimension: (WxHxD)170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
- Weight557.5 g: (19.7 oz)
- Color: White
-
Device management

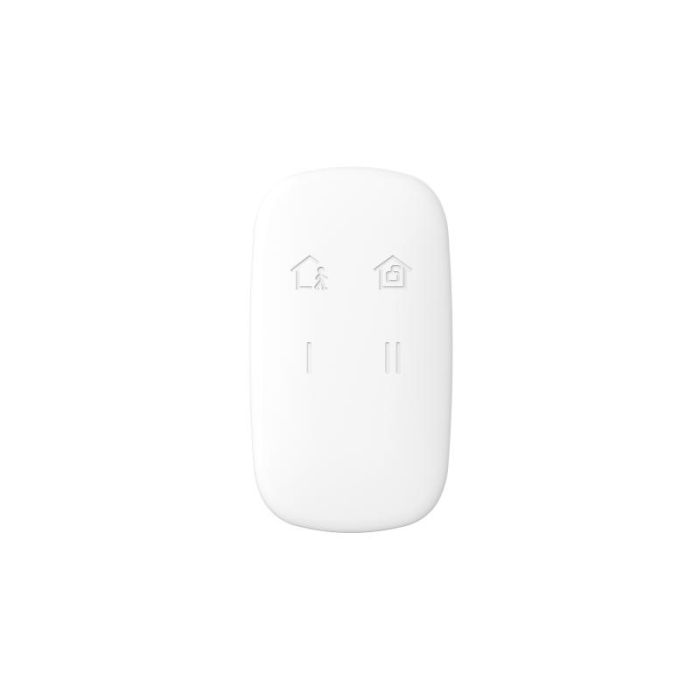

- Keyfob: 32

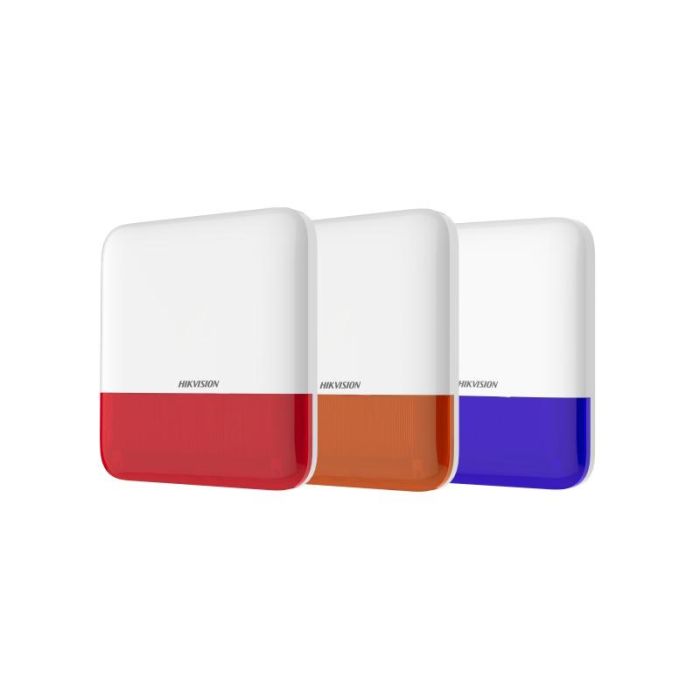

- Wireless sounder: 4 (2 internal+2 External)
- Keypad: 8 (Including Tag reader)
- Wireless Repeater: 2
- Multi Transmitter: 4

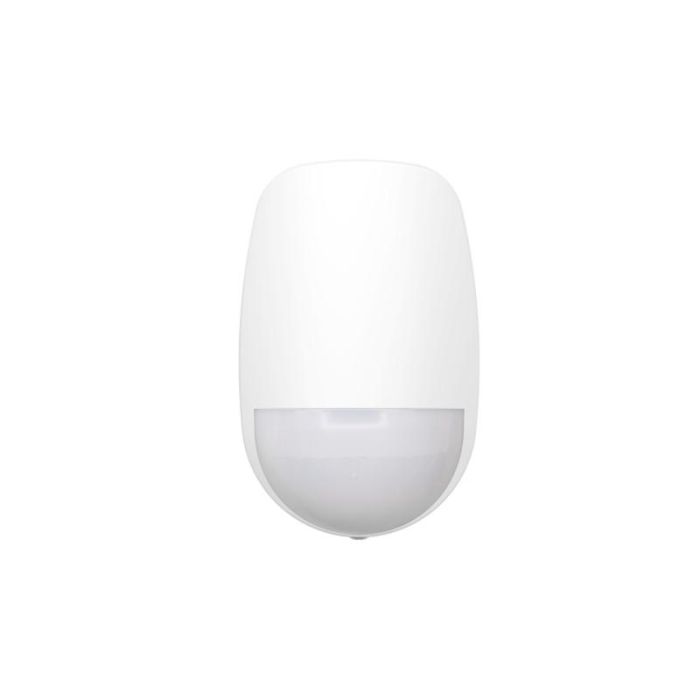

- PIR Cam: Supported
More Information
| Manufacturer | HIKVision |
|---|
