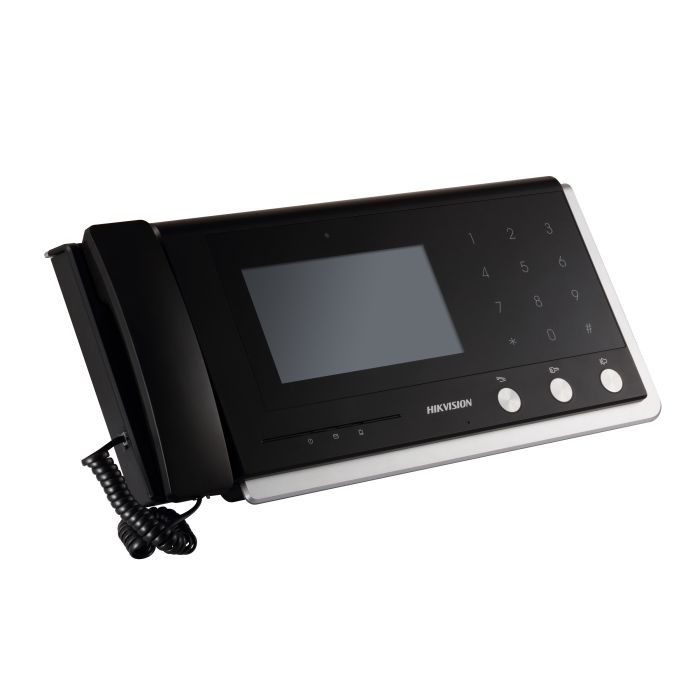

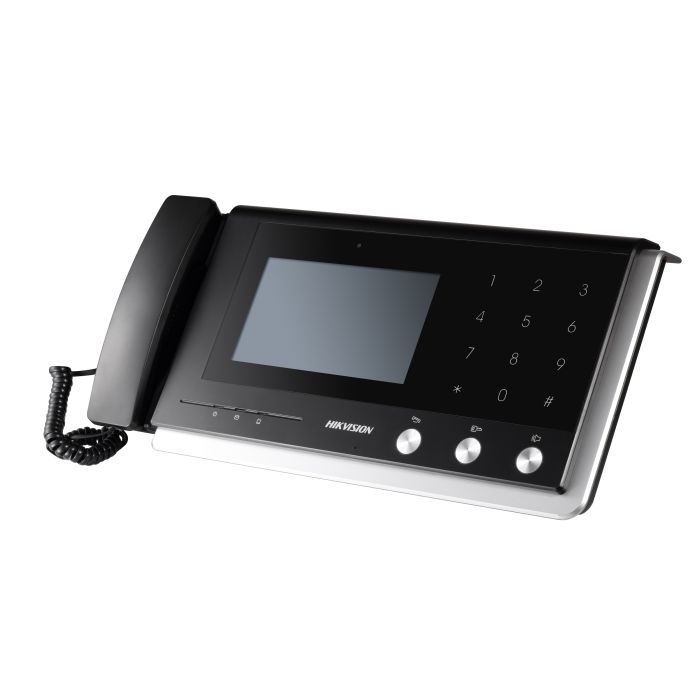

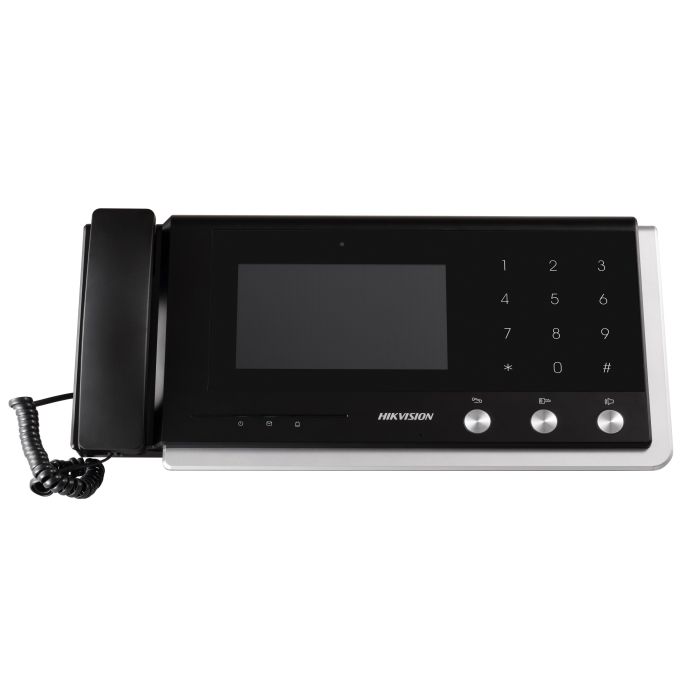

DS-KM8301 Video Intercom Master Station
Description / DS-KM8301 Video Intercom Master Station
- -Glass panel and aluminium-alloy bracket
- -Supports video intercom
- -Supports live view of door stations and IP camera
- -Noise suppression and echo cancellation
- -Alarm processing function
- -Supports remote unlocking door function
- -Supports hands-free mode
- -Supports video intercom between master stations
- -(Optional) Suitable for wall mounting
CLICK HERE FOR THE PDF SPECIFICATIONS:
|
_______________________________________________________________________________________________________________________________________ System Parameters |
||
|
Processor: |
High-Performance Embedded SOC Processor |
|
|
Operation System: |
Embedded Linux Operation System |
|
|
_______________________________________________________________________________________________________________________________________ Display Parameters |
||
|
Display Screen: |
7-Inch Colorful TFT LCD |
|
|
Display Resolution: |
1024 × 600 |
|
|
Operation Method: |
Capacitive Touch Screen, Touch Key, Physical Button |
|
|
Operation interface: |
Flattened UI Operation Interface |
|
|
_______________________________________________________________________________________________________________________________________ Video Parameters |
||
|
Camera: |
CMOS 0.3 MP |
|
|
Video Compression Standard: |
H.264 |
|
|
Resolution: |
1280 x 720, 704 x 576 |
|
|
Video frame rate: |
25 fps, 12.5 fps |
|
|
_______________________________________________________________________________________________________________________________________ Audio Parameters |
||
|
Audio Input: |
Built-in Omnidirectional Microphone + External Handset |
|
|
Audio Output: |
Built-in Loudspeaker + External Handset |
|
|
Audio Compression Standard: |
G.711 U |
|
|
Audio Compression Rate: |
64 Kbps |
|
|
Audio Quality: |
Noise Suppression and Echo Cancellation |
|
|
_______________________________________________________________________________________________________________________________________ Network Parameters |
||
|
Ethernet: |
10/100/1000 Mbps Self-Adaptive Ethernet |
|
|
Network Protocol: |
TCP/IP, RTSP |
|
|
_______________________________________________________________________________________________________________________________________ Device Interfaces |
||
|
Network Interface: |
1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
|
|
RS-485: |
2 RS-485 Half-Duplex Port |
|
|
I/O Input: |
4 On-Off Input |
|
|
I/O Output: |
2 On-Off Output, 2 Relay Output |
|
|
_______________________________________________________________________________________________________________________________________ General |
||
|
Material: |
Plastic |
|
|
Power Supply: |
12 VDC |
|
|
Power Consumption: |
≤10 W |
|
|
Certification: |
FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
|
|
Working Temperature: |
-10° C to + 55° C (14° F to 131° F) |
|
|
Working Humidity: |
10% to 90% |
|
|
Dimensions(L × W × H): |
436 mm × 215 mm × 67 mm (17.2" ×8.5" × 2.6") |
|
More Information
| Manufacturer | HIKVision |
|---|
