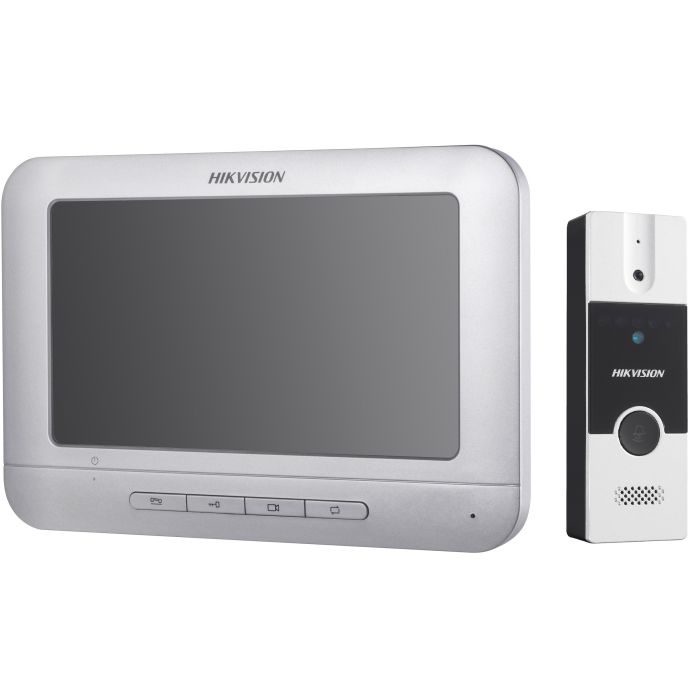

DS-KIS202 Analogue 4 Wire Video Door Phone
Description / DS-KIS202 Analogue 4 Wire Video Door Phone
Indoor Station Features:
- -Hands free video intercom communication
- -Supports monitoring the door station and external camera
- -Remote unlocking
- -Easy installation
Door Station Features:
- -Self-adaptive IR
- -One-touch calling
- -Pinhole camera with 720x576@25fps
- -Unlock controlling
|
_______________________________________________________________________________________________________________________________________ |

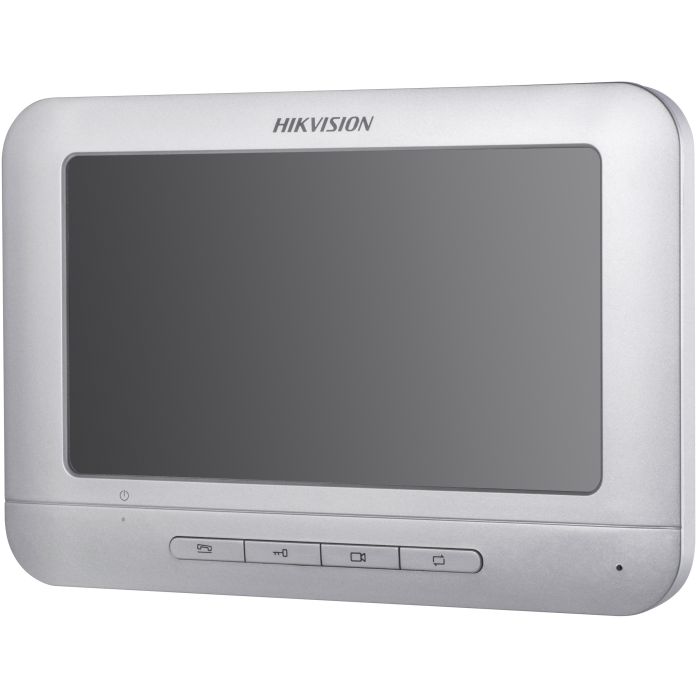

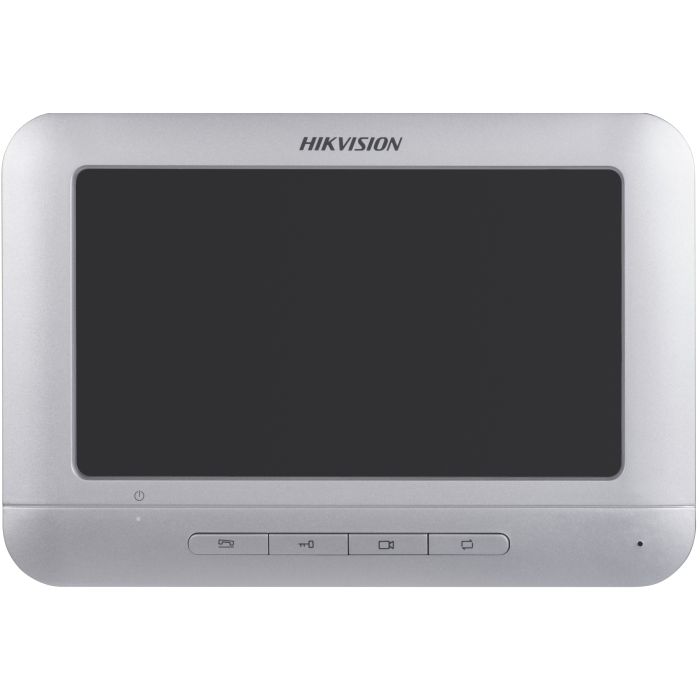

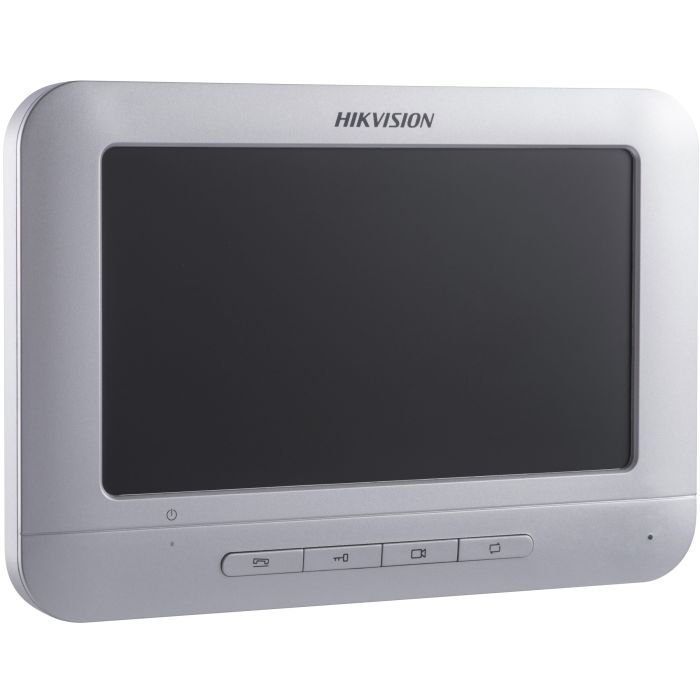

   Indoor Station (DS-KH2220):
| Display Parameters: |
|---|
| Display Screen:7-Inch Colorful TFT LCD |
| Display Resolution:800 Ă— 480 |
| Operation Method:Physical Button |
| Audio Parameters: |
| Audio Input:Built-in Omnidirectional Microphone |
| Audio Output:Built-in Loudspeaker |
| Audio Compression Rate:64 Kbps |
| Audio Quality:Noise Suppression and Echo Cancellation |
| Device Interfaces: |
| Four-wire Interface:4 Four-Wire Interfaces (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding in 1 Four-Wire Interface) |
| General: |
| Power Supply:12 VDC |
| Power Consumption:≤5 W |
| Working Temperature:-10° C to + 55° C (14° F to 131° F) |
| Working Humidity:10% to 90% |
| Dimensions(L Ă— W Ă— H):195.8 mm Ă— 132.8 mm Ă— 18.39 mm (7.7" Ă— 5.2" Ă—0.7") |
|
_______________________________________________________________________________________________________________________________________ |

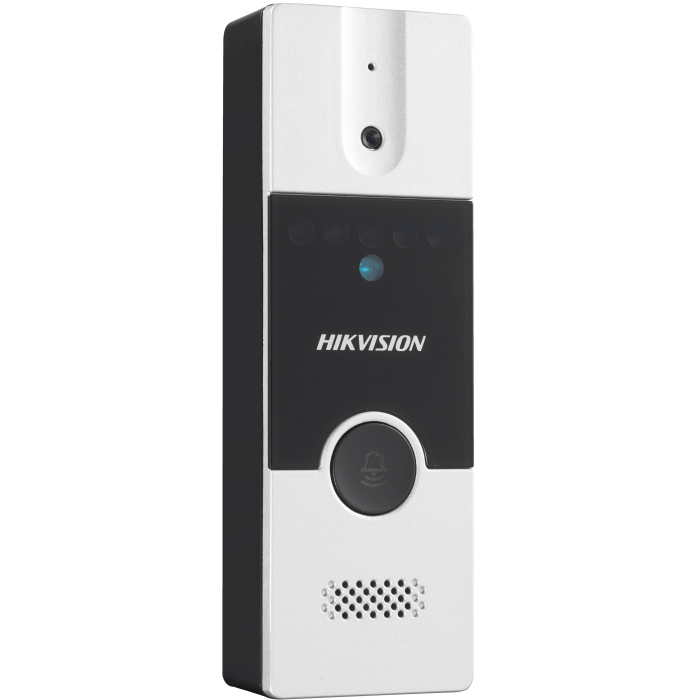

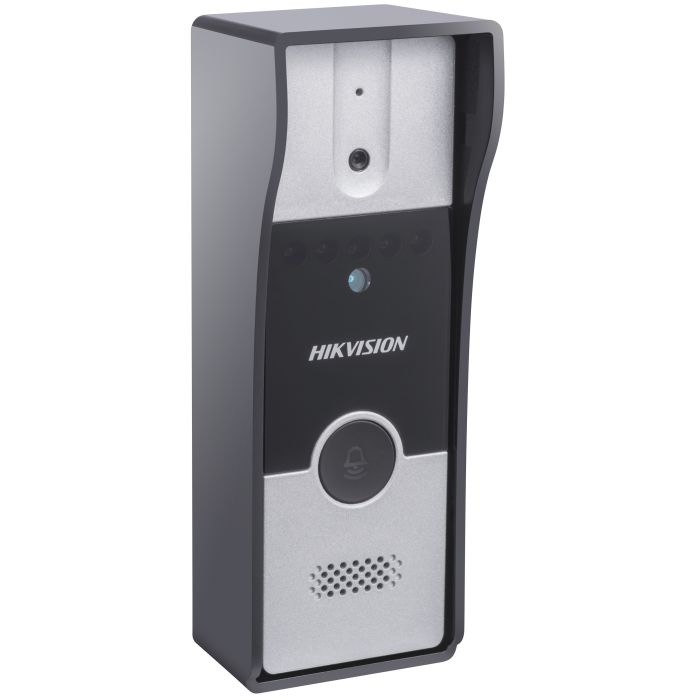

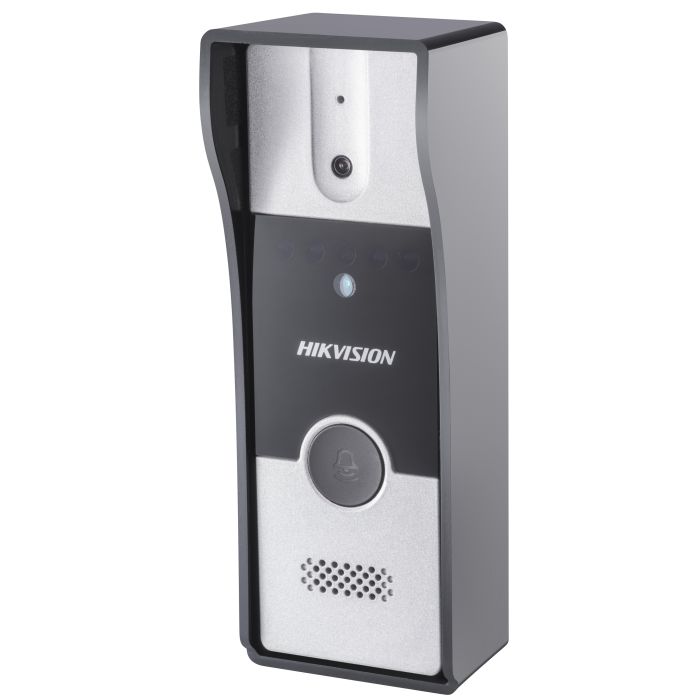

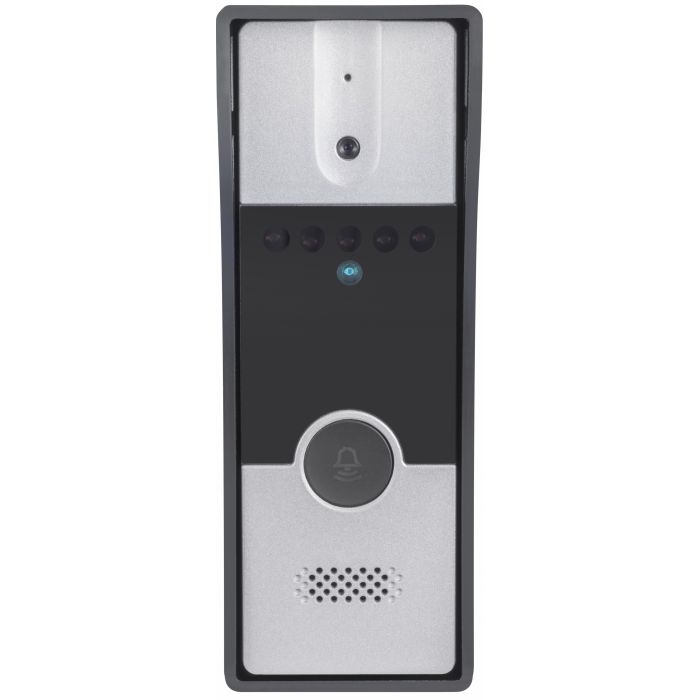

   Door Station (DS-KB2411-IM):
| Video Parameters: |
|---|
| Camera:1/4" CMOS |
| Resolution:720 Ă— 576 |
| Video frame rate:PAL: 25 fps |
| Audio Parameters: |
| Audio Input:Built-in Omnidirectional Microphone |
| Audio Output:Built-in Loudspeaker |
| Audio Quality:Noise Suppression and Echo Cancellation |
| Light Supplement: |
| Light Supplement Mode:Photosensitive IR Supplement, IR Range: 2 Meters |
| Device Interfaces: |
| I/O Output:1 Relay Output |
| Four-wire Interface:1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding) |
| General: |
| Material:Aluminum Alloy |
| Power Consumption:Max. 3W |
| Working Temperature:-30° C to +60° C (-22° F to 140° F) |
| Working Humidity:10% to 90% |
| Dimensions(L Ă— W Ă— H):128 mm Ă— 42 mm Ă— 24.8 mm (5.0" Ă— 1.7" Ă— 0.9") |
More Information
| Manufacturer | HIKVision |
|---|
