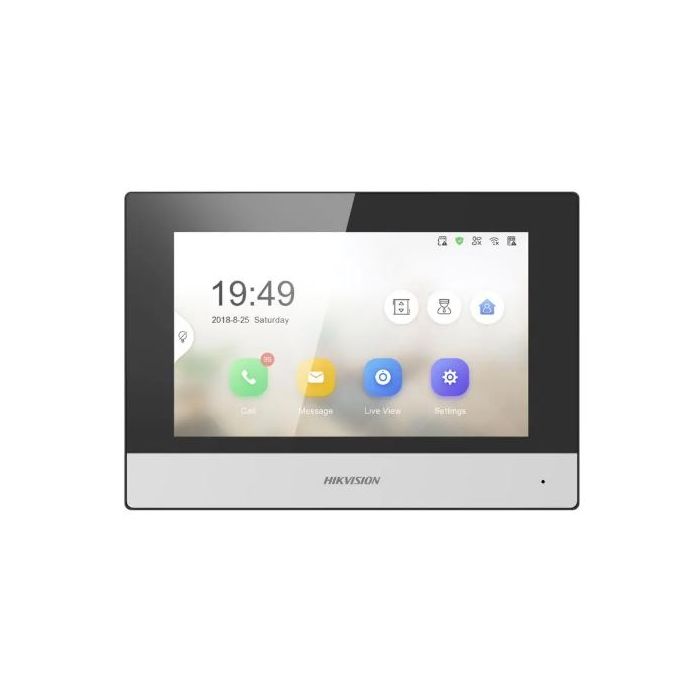

DS-KH6320-WTE1 Hikvision Indoor Station

7-inch IPS touch screen with 1024 × 600 resolution Convenient Hik-Connect APP Mobile Control Receive calls, open the door and live view remotely Easy to use without PC Easy wizard for quick set up Configure the whole system on one touch screen Live view of the door station and cameras in public areas Support voice messages when no response from the indoor station Receive alarms by linkage with a alarm system and notify the center to handle in time Elevator access control   .

In stock

SKU
DS-KH6320-WTE1
Quickly create a guest account to view prices

Description / DS-KH6320-WTE1 Hikvision Indoor Station

System Parameters

  • Operating System: Embedded Linux operation system
  • ROM: 32 MB
  • RAM: 128 MB
  • CPU: Embedded processor

Display Parameters

  • Screen Size: 7-inch colorful TFT screen
  • Operation Method: Capacitive touch screen
  • Type: Colorful TFT screen
  • Resolution: 1024 Ă— 600

Video Parameters

  • Lens: /
  • Resolution: /
  • FOV: /
  • WDR: /
  • Video Compression Standard: DS-KH6320-WTE1
  • Focal Length: /

Audio Parameters

  • Audio Compression Standard: G.711 U
  • Audio Input: Built-in omnidirectional microphone
  • Audio Output: Built-in loudspeaker
  • Audio Compression Bitrate: 64 Kbps
  • Audio Quality: Noise suppression and echo cancellation
  • Volume Adjustment: Adjustable

Capacity

  • Event Capacity: 200
  • Notice Capacity: 16
  • Linked Indoor Extensions Capacity: 5
  • Linked Doorphone Capacity: 8

Network Parameters

  • Communication Protocol: TCP/IP, SIP, RTSP
  • Wired Network: 10/100 Mbps self-adaptive
  • Wi-Fi Standard: Wi-Fi 802.11 b/g/n
  • Bluetooth Version: /
  • 3G/4G Standard: /
  • Zigbee: /

Device Interfaces

  • Alarm Input: 8-ch alarm inputs
  • Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
  • TAMPER: /
  • RS-485: 1
  • USB: /
  • TF Card: Max to 128 G, SD 2.0 or lower version
  • Alarm Output: 2
  • Power Interface: 1

General

  • Button: 0
  • Installation: Surface mounting
  • Indicator: 0
  • Weight:

    With package: 683 g

    Without package: 355 g

  • Protective Level: /
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Dimensions: 200 mm Ă— 140 mm Ă— 15.1 mm (7.9" Ă— 5.5" Ă— 0.6")
  • Battery: /
  • Application Environment: Indoor
  • Power Consumption: ≤ 6 W
  • Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak

More Information

Manufacturer HIKVision
