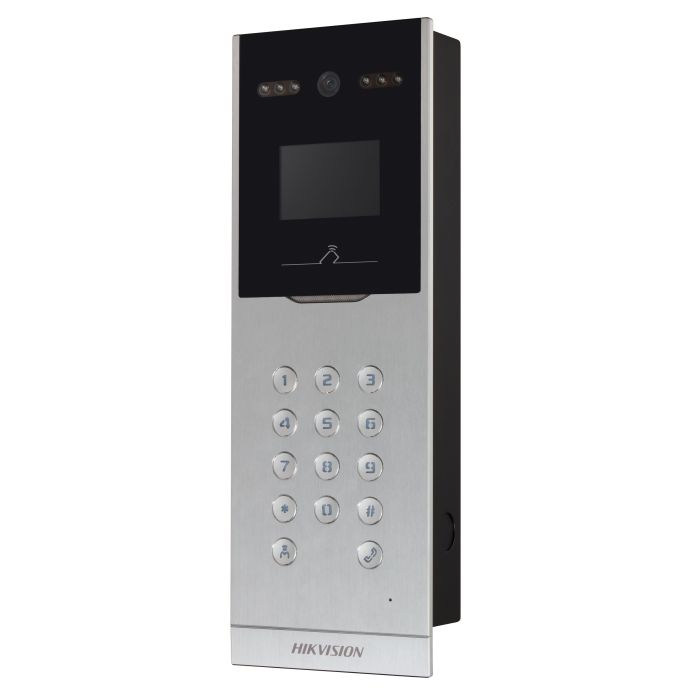

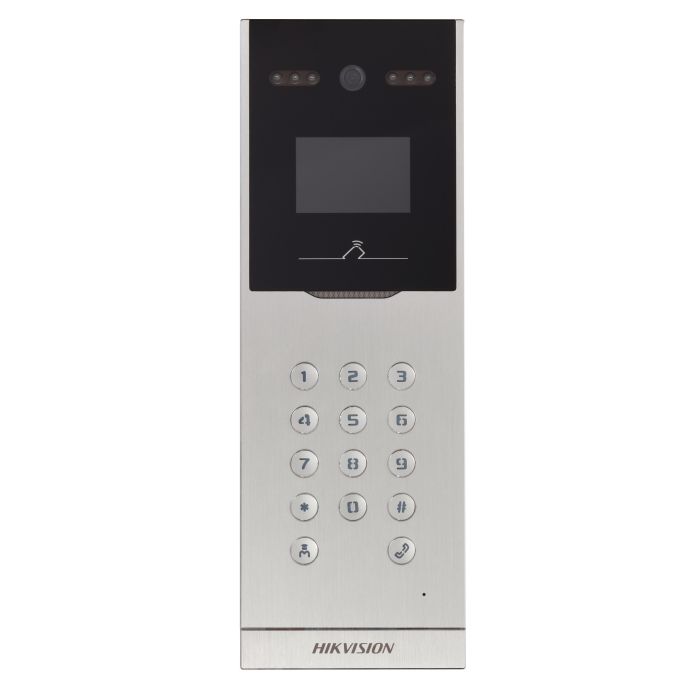

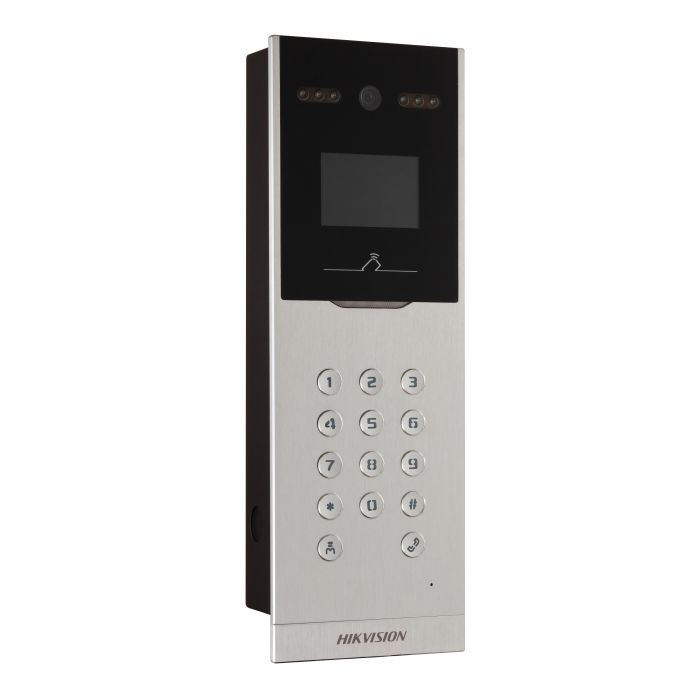

DS-KD8002-VM Video Intercom Metal Door Station

_______________________________________________________________________________________________________________________________________

System Parameters

Processor:

High-Performance Embedded SOC Processor

Operation System:

Embedded Linux Operation System

_______________________________________________________________________________________________________________________________________

Display Parameters

Display Screen:

3.5-Inch Colorful TFT LCD

Display Resolution:

480 × 320

Operation Method:

Physical Keypad

Operation interface:

LCD Display, Easy Menu

_______________________________________________________________________________________________________________________________________

Video Parameters

Camera:

CMOS Low Illumination 1.3 MP HD Colorful Camera

Video Compression Standard:

H.264

Resolution:

1280 x 720

Video frame rate:

PAL: 25 fps, NTSC: 30 fps

_______________________________________________________________________________________________________________________________________

Audio Parameters

Audio Input:

Built-in Omnidirectional Microphone

Audio Output:

Built-in Loudspeaker

Audio Compression Standard:

G.711 U

Audio Compression Rate:

64 Kbps

Audio Quality:

Noise Suppression and Echo Cancellation

_______________________________________________________________________________________________________________________________________

Network Parameters

Ethernet:

10/100/1000 Mbps Self-Adaptive Ethernet

Network Protocol:

TCP/IP, RTSP

_______________________________________________________________________________________________________________________________________

Access Control Parameters

Internal Card Reader:

Built-in IC Card Reader

External Card Reader:

Wiegand 26, Wiegand 34, or RS-485 IC Reader

Door Magnetic Detection:

Detects Door Magnetic Status

_______________________________________________________________________________________________________________________________________

Light Supplement

Light Supplement Mode:

Visible Light Supplement

_______________________________________________________________________________________________________________________________________

Alarm Parameters

Alarm Input:

Door Magnetic Alarm, Tampering Alarm

_______________________________________________________________________________________________________________________________________

Device Interfaces

Network Interface:

1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface

RS-485:

1 RS-485 Half-Duplex Port

I/O Input:

8

I/O Output:

4

Wiegand:

1 Wiegand Port for Accessing Wiegand IC Card Reader

USB :

1 USB 2.0, Supporting U-Disk

_______________________________________________________________________________________________________________________________________

General

Material:

Aluminum Alloy

Power Supply:

12 VDC

Power Consumption:

≤15 W

Certification:

FCC, IC, CE, C-TICK, ROHS, REACH, WEEE

Working Temperature:

-40° C to +60° C (-40° F to 140° F)

Working Humidity:

10% to 90%

IP Protection Level:

IP65

Dimensions(L × W × H):

418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4")
