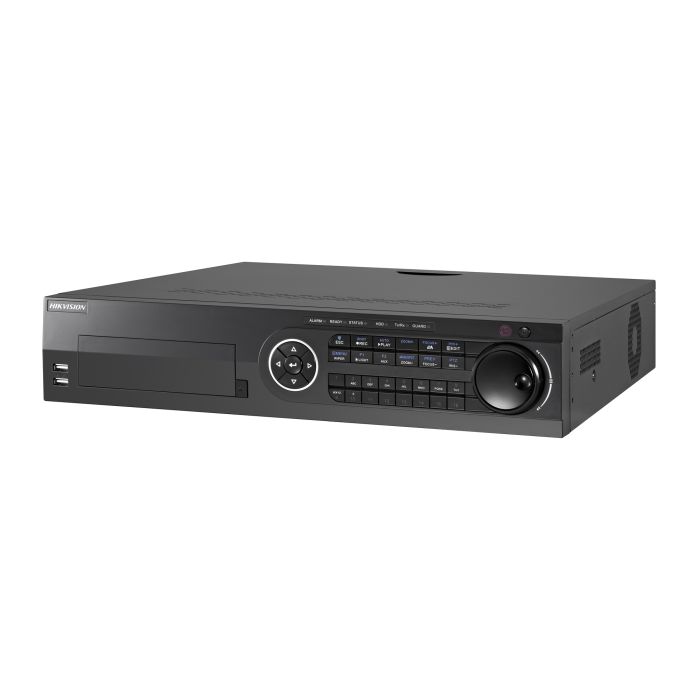

DS-8132HQHI-K8 32 Channel Turbo Recorder

Turbo HD DVR

CLICK HERE FOR THE PDF SPECIFICATIONS:

Appearance Design
 Typical chassis design to guarantee the low noise and environmental protection of the device
 Front slot for insertion of DVD-R/W with bracket to make it more convenient to install and maintain

Video Input and Transmission
 Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
 Up to 6 MP IP cameras input
 Long distance transmission over UTP and coaxial cable

Compression and Recording
 H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
 Connectable to H.265+/H.265/H.264+/H.264 IP cameras
 H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
 Supports 4 MP lite
 Supports real-time 1080p lite and when enabled, the image effect is similar with 1080p
 Supports POS triggered recording and POS information overlay

Video Output
 Simultaneous HDMI1 and VGA output at up to 1920 × 1080 resolution, and independent HDMI 2 output at up to 4K (3840 ×
2160) resolution
 Separate CVBS output

Storage and Playback
 Eight SATA interfaces (up to 8 TB capacity per HDD) and 1 eSATA interface
 16-ch synchronous playback
 Smart search for efficient playback
 Supports playback by main stream, or sub-stream for IP cameras
 Supports third party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function
 Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
 Supports 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection
 VQD (Video Quality Diagnostics)
 Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 Two RJ45 10M/100M/1000M Ethernet network interfaces
 Output bandwidth limit configurable
