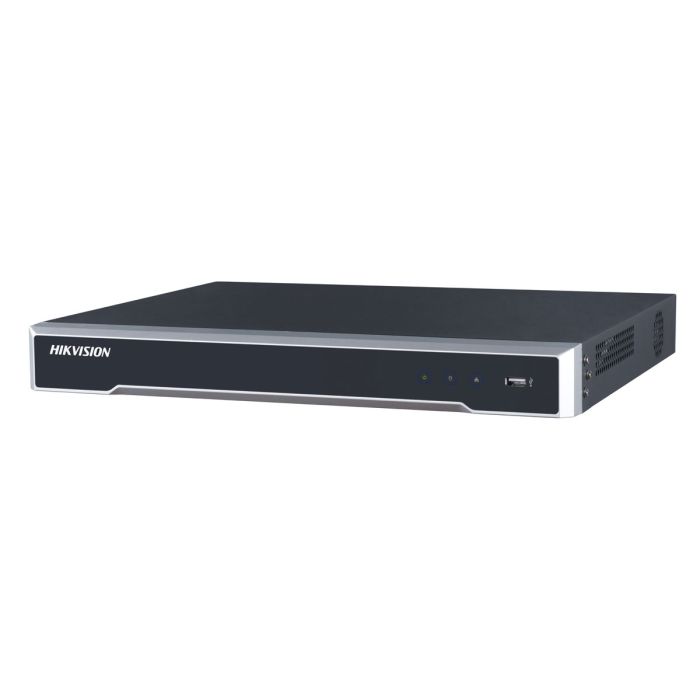

DS-7616NI-M2/16P 16 Channel 4K NVR with PoE 4TB from HIKVision

DS-7616NI-M2/146P Pro-Series 16 Channel 4K NVR with built-in PoE with resolutions up to 12MP, that's higher than 4K!

In stock

SKU
DS-7616NI-M2/16P-4
Quickly create a guest account to view prices

Description / DS-7616NI-M2/16P 16 Channel 4K NVR with PoE 4TB from HIKVision

DS-7616NI-I2/16P 16 Channel 4K NVR with PoE 4TB from HIKVision. This is the 4K NVR that the professional's choose.

• Third-party network cameras supported

• Up to 12 Megapixels resolution recording

• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution

• 16-ch network cameras can be connected with 160M incoming bandwidth

• Up to 2 SATA interfaces

• Plug & Play with up to 16 independent PoE network interfaces

• Support dual-os to ensure high reliablility of system running

•Support various VCA detection alarm and VCA search

•Support H.265/H.264/MPEG4 video formats

Click here for the DS-7616NI-I2/16P Specification: DS-7616NI-I2/16P Specifications

DS-7616NI-I2/16P 4K PoE NVR Details:

IP video input: | 16-ch
Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: | 160Mbps
Outgoing bandwidth: | 256Mpbs
Remote connection: | 128
Video/Audio Output
HDMI Output: | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: | 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback: | 16-ch
VGA Output: | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: | 4-ch@8MP,16-ch@1080P
Hard Disk
SATA: | 2 SATA interfaces for 2 HDDs
Capacity: | Up to 6TB capacity for each HDD
External Interface
Network Interface: | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: | RS-232
USB Interface: | Front panel: 1 × USB 2.0  Rear panel: 1 × USB 3.0
Alarm In: | 4-ch
Alarm Out: | 1-ch
POE
Interface: | 16 independent 10/100 Mbps PoE Ethernet interfaces
Max. Power: | 200W
Supported Standard: | AF and AT
General
Power Supply: | 100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE): | ≤15 W
Working Temperature: | -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity: | 10 % ~ 90 %
Chassis: | 380 chassis
Dimensions: | 380 × 290 ×45 mm (15.0"× 11.4" × 1.8")
Weight(without HDD): | ≤ 3 Kg (6.6 lb)

More Information

Manufacturer HIKVision
