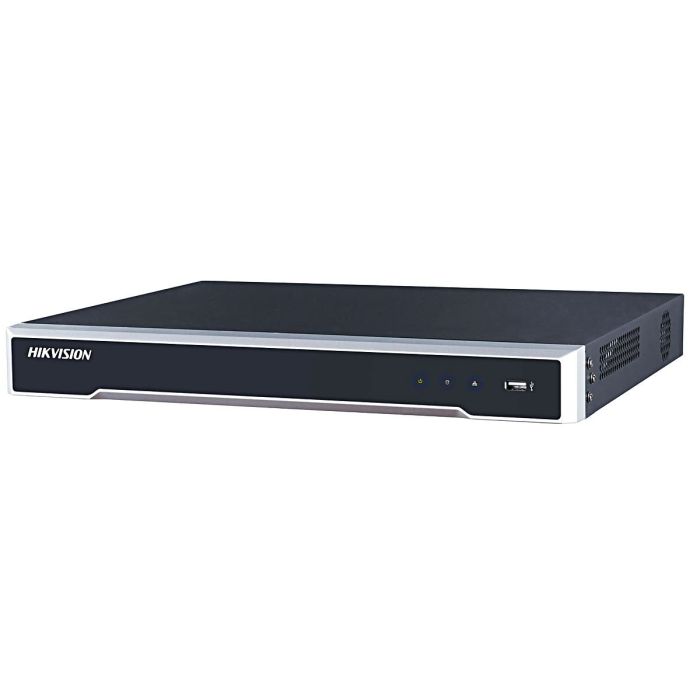

HIKVision DS-7616NI-K2/16P 16 Channel NVR with POE 4TB

DS-7616NI-K2/16P 4K NVR for IP cameras up to 8MP for incredibly detailed recording, never miss the smallest detail again!

In stock

SKU
DS-7616NI-K2/16P-4TB
Quickly create a guest account to view prices

Description / HIKVision DS-7616NI-K2/16P 16 Channel NVR with POE 4TB

Click Here for PDF Specifications.

Key Features:

  • Up to 16 channel IP cameras can be connected
  • Supports decoding H.265+/H.265/H.264+/H.264 video formats
  • Up to 4K high-definition live view, storage and playback
  • Up to 8-ch @ 1080p decoding capacity
  • Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected
  • 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
  • 2 HDDs for continuous video recording
  • Compatible with third-party network cameras
  • Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

SPECIFICATIONS:

Video And Audio:

  • IP Video Input16-ch
  • Incoming/Outgoing Bandwidth160 Mbps
  • HDMI Output4K (3840 Ă— 2160)/30Hz, 2K (2560 Ă— 1440)/60Hz, 1920 Ă— 1080/60Hz, 1600 Ă— 1200/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
  • VGA Output1920 Ă— 1080/60Hz, 1280 Ă— 1024/60Hz, 1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio Input1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding:

  • Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
  • Recording Resolution8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback16-ch
  • Capability2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Network:

  • Network ProtocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

POE Interface:

  • Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power≤ 200 W
  • Supported StandardIEEE 802.3 af/at

Hard Disk:

  • SATA2 SATA interfaces
  • CapacityUp to 6 TB capacity for each HDD

External Interface:

  • USB InterfaceFront panel: 1 Ă— USB 2.0; Rear panel: 1 Ă— USB 3.0
  • Alarm In/Out4/1

General:

  • Power Supply100 to 240 VAC,≤ 280 W
  • Consumption (Without HDD)≤ 15 W (without enabling PoE)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10 to 90 %
  • Dimensions (W Ă— D Ă— H)385 Ă— 315Ă— 52 mm (15.2" Ă— 12.4" Ă— 2.0")
  • Weight (Without Hard Disk)≤ 3 kg (6.6 lb)
