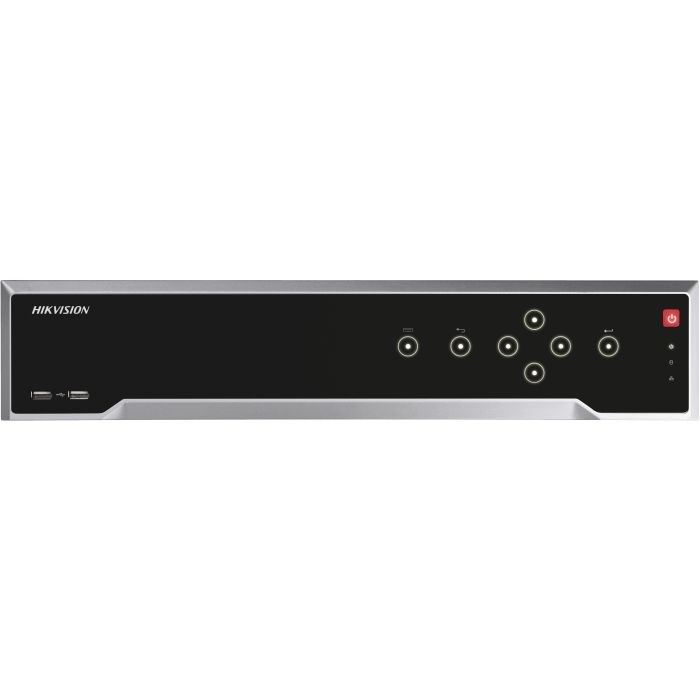

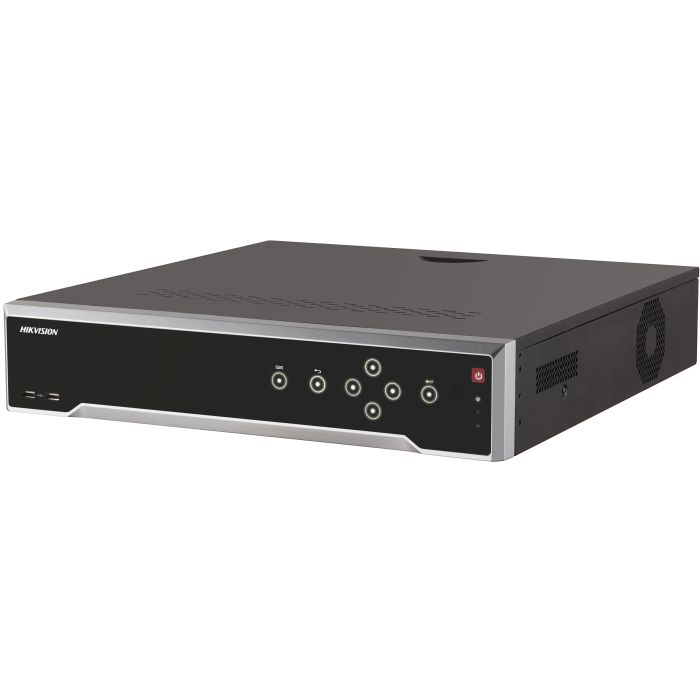

DS-7616NI-I4 Series NVR
Description / DS-7616NI-I4 Series NVR
- • Third-party network cameras supported
- • Up to 12 Megapixels resolution recording
- • Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)
- resolution
- • 16-ch network cameras can be connected with
- 160M incoming bandwidth
- • Up to 4 SATA interfaces
- • Support dual-os to ensure high reliablility of system
- running
- •Support various VCA detection alarm and VCA search
- •Support H.265/H.264/MPEG4 video formats
CLICK HERE FOR THE PDF SPECIFICATIONS:
|
_______________________________________________________________________________________________________________________________________ Video/Audio Input |
||
|
Two-way audio input: |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
|
IP video input: |
16-ch |
|
|
_______________________________________________________________________________________________________________________________________ Network |
||
|
Remote connection: |
128 |
|
|
Incoming bandwidth: |
160Mbps |
|
|
Outgoing bandwidth: |
256Mbps |
|
|
_______________________________________________________________________________________________________________________________________ Video/Audio Output |
||
|
HDMI Output: |
1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
|
Recording Resolution: |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
|
Audio Output: |
1-ch, RCA (Linear, 1kΩ) |
|
|
Synchronous Playback: |
16-ch |
|
|
VGA Output: |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
|
_______________________________________________________________________________________________________________________________________ Decoding |
||
|
Capability: |
4-ch@8MP,16-ch@1080P |
|
|
Live view / Playback: |
12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
|
_______________________________________________________________________________________________________________________________________ Hard Disk |
||
|
SATA: |
4 SATA interfaces for 4HDDs |
|
|
Capacity: |
Up to 6TB capacity for each HDD |
|
|

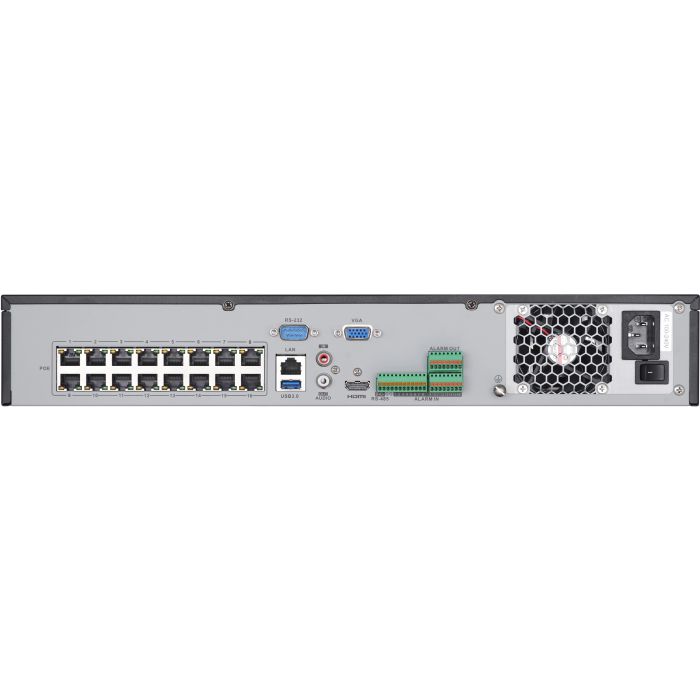

_______________________________________________________________________________________________________________________________________ External Interface |
||
|
Network Interface: |
1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
|
|
Serial Interface: |
RS-232; RS-485; |
|
|
USB Interface: |
Front panel: 2 × USB 2.0 |
|
|
Alarm In: |
16-ch |
|
|
Alarm Out: |
4-ch |
|
|
_______________________________________________________________________________________________________________________________________ POE |
||
|
Supported Standard: |
AF and AT |
|
|
Interface: |
16 independent 10/100 Mbps PoE Ethernet interfaces |
|
|
Max. Power: |
200W |
|
|
_______________________________________________________________________________________________________________________________________ General |
||
|
Power Supply: |
100 to 240 VAC |
|
|
Consumption(without hard disk and POE): |
≤20 W |
|
|
Working Temperature: |
-10 oC ~ +55 oC (+14 oF~ + 131 oF) |
|
|
Working Humidity: |
10 % ~ 90 % |
|
|
Chassis: |
19-inch rack-mounted 1.5U chassis |
|
|
Dimensions: |
445 × 390 × 70 mm (17.5"× 15.3" × 2.8") |
|
|
Weight(without HDD): |
≤ 5 Kg (11 lb) |
|
More Information
| Manufacturer | HIKVision |
|---|
