DS-7616HUHI-F2/N 16 +16 Hybrid 16 HD TVI & 16 HD IP Network Cameras
Description / DS-7616HUHI-F2/N 16 +16 Hybrid 16 HD TVI & 16 HD IP Network Cameras
The DS-7616HUHI-F2 can be used with 16 Analogue and 16 IP cameras for a total of 32 cameras at once. Can also be configured for a total of 32 IP cameras, ( such as 8X analogue & 24 X IP cameras, or 2 analogue cameras and 30 X IP Cameras), the choice is yours!
click here for the specifications:

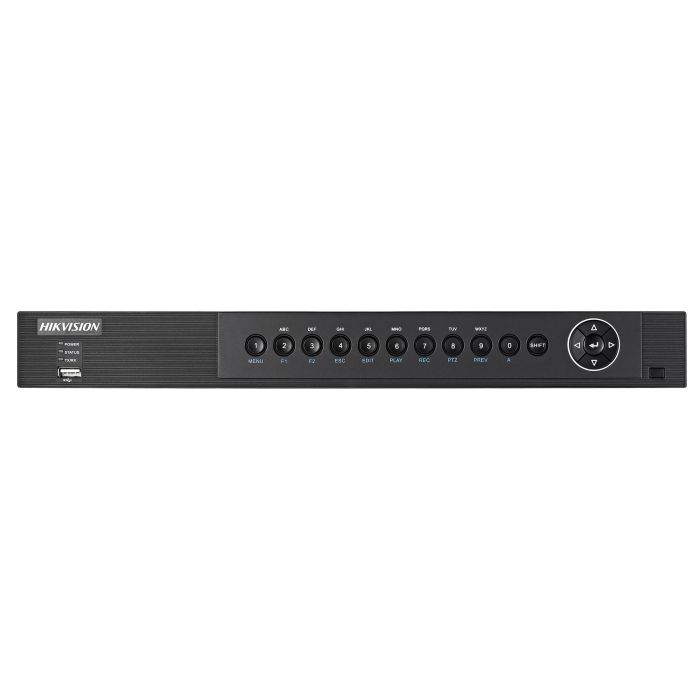

Front Panel -click on images for large view:

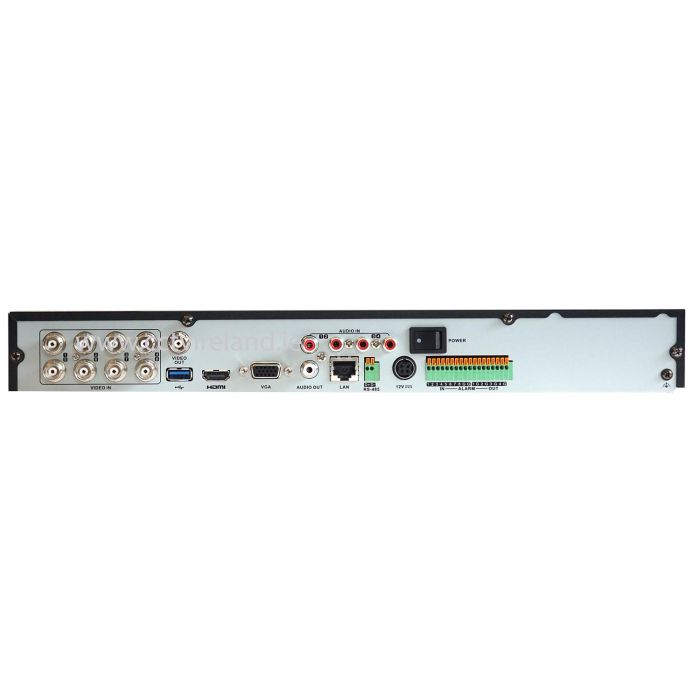

Rear Panel, (picture of 8 +8 Channel Version):
- H.264 ,H.264+& Dual-stream video compression
- Support HD-TVI, IPC,AHD and analog cameras with adaptive access
- Support Cloud storage(One Drive, Google Drive or Drop Box)
- HDMI and VGA output can be configured simultaneous or independent.
- Up To 4K Video Output for incredible clarity
- Long transmission distance over coax cable
- 8/16-ch synchronous playback at 3MP resolution
- playback at up to 256X speed
- TVI analogue cameras at 3Mega-Pixel HD
- IP network IP cameras at 8MP 4K
- AHD cameras at 1080p
- Older CVBS cameras at 960H
DS-7616HUHI-F2/N 16 + 16 Channel Hybrid Recorder Specifications:
| Video/Audio Input | ||
|---|---|---|
| Audio Input: | | | 4-ch |
| Video Compression: | | | H.264,H.264+ |
| Analog and HD-TVI video input: | | | 8-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types: | | | Support HDTVI input: 3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input |
| Video Input Interface: | | | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression: | | | G.711u |
| Audio Input Interface: | | | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
| Video/Audio Output | ||
| CVBS Output: | | | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 |
| HDMI/VGA Output: | | | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60Hz VGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
| Recording resolution: | | | 3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate: | | | Main stream: 3 MP@15fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N) |
| Video Bit Rate: | | | 32 Kbps-10 Mbps |
| Stream Type: | | | Video/Video&Audio |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Audio Output: | | | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate: | | | 64kbps |
| Dual Stream: | | | Support |
| Playback Resolution: | | | 3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
| Synchronous Playback: | | | 8-ch |
| Network management | ||
| Remote connections: | | | 128 |
| Network protocols: | | | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,ONVIF |
| Hard Disk Driver | ||
| Interface Type: | | | 2 SATA Interfaces |
| Capacity: | | | Up to 6 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1; 10M / 100M / 1000M self-adaptive Ethernet interface |
| USB Interface: | | | 1 USB 2.0 Interface & 1 USB 3.0 Interface |
| Serial Interface: | | | 1; standard RS-485 serial interface, half-duplex |
| Alarm Input: | | | 8-ch |
| Alarm Output: | | | 4-ch |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | ≤ 20W(without hard disks) |
| Working Temperature: | | | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working Humidity: | | | 10% ~ 90% |
| Chassis: | | | Standard 1U chassis |
| Dimensions: | | | 380 × 320 × 48 mm (14.9 × 12.6 × 18.9 inch ) |
| Weight: | | | ≤ 2 k g (4.4 lb) g |
