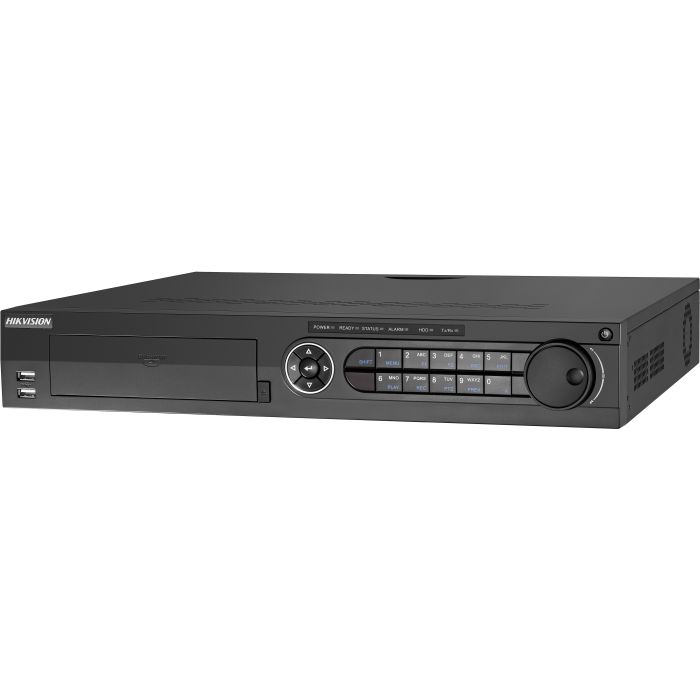

DS-7332HUHI-K4 8TB Hybrid 4K DVR

_______________________________________________________________________________________________________________________________________

Video/Audio Input

Audio Input:

4-ch

Video Compression:

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Analog and HD-TVI video input:

32-ch,BNC interface (1.0Vp-p, 75 Ω)connection

Supported camera types:

Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
Support CVBS input

IP Video Input:

8-ch(up to 40ch) Up to 8MP resolution

Audio Compression:

G.711u

Audio Input Interface:

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

_______________________________________________________________________________________________________________________________________

Video/Audio Output

CVBS Output:

1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480

HDMI2 Output:

1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz

HDMI/VGA Output:

1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz

Recording resolution:

8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate:

Main stream:
8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate:

32 Kbps-6 Mbps

Stream Type:

Video/Video&Audio

Two-way Audio:

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Audio Output:

1-ch RCA(Linear, 1kΩ)

Dual Stream:

Support

Playback Resolution:

8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Synchronous Playback:

16-ch

_______________________________________________________________________________________________________________________________________

Network management

Remote connections:

128

Network protocols:

TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF

_______________________________________________________________________________________________________________________________________

Hard Disk Driver

Interface Type:

4 SATA Interfaces

Capacity:

Up to 10 TB capacity for each disk

e-SATA Interface:

1 eSATA interface

_______________________________________________________________________________________________________________________________________

Disk Array

Array Type:

RAID0, RAID1, RAID5, RAID6,RAID10

_______________________________________________________________________________________________________________________________________

External Interface

Network Interface:

2; 10M / 100M / 1000M self-adaptive Ethernet interfaces

Serial Interface:

1 RS-232 serial interface
1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface

Alarm Input:

16-ch

Alarm Output:

4-ch

_______________________________________________________________________________________________________________________________________

General

Power Supply:

100 to 240 VAC

Consumption:

≤ 74W(without hard disks)

Working Temperature:

-10 oC to +55 oC (+14 oF to +131 oF)

Working Humidity:

10% to 90%

Dimensions:

440 × 390 × 70 mm (17.3 × 15.4 × 2.8 inch)

Weight:

≤ 7 kg (15.4 lb)
