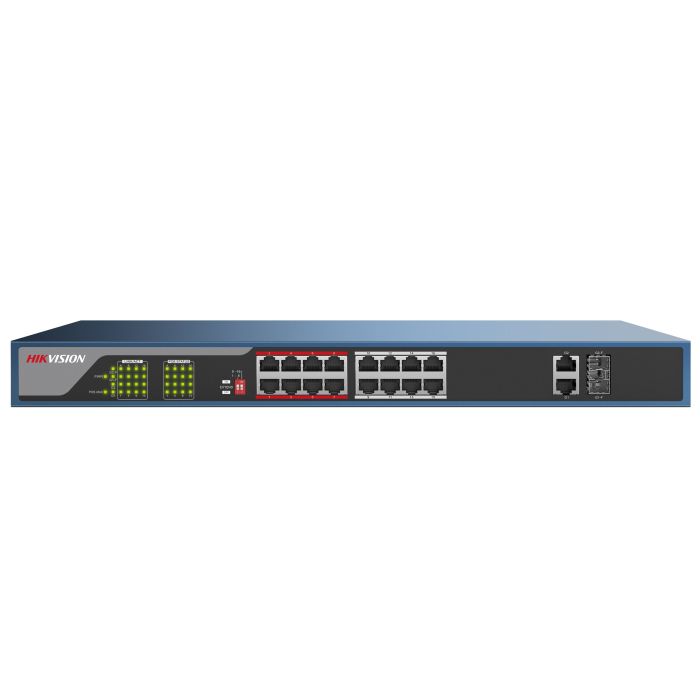

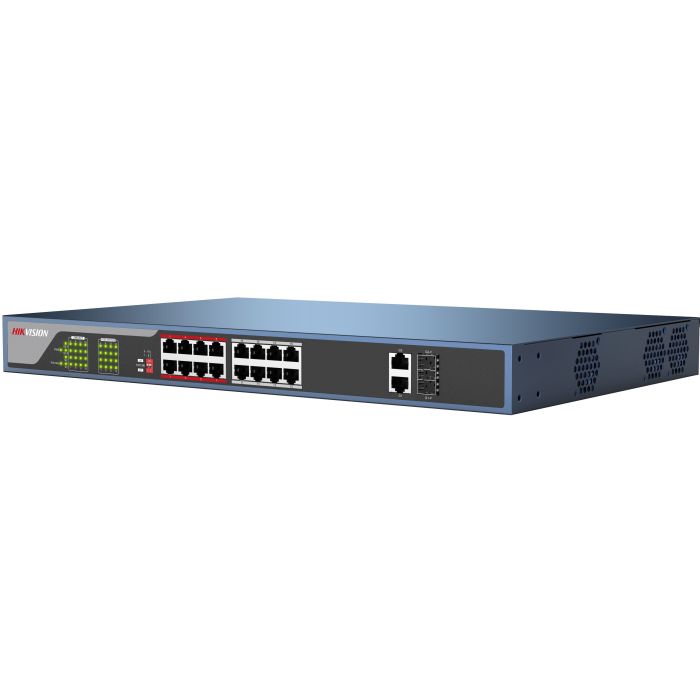

DS-3E0318P-E 16 Way HIKVision PoE Switch with 2 Gigabit Uplink

DS-3E0318P-E 16 Port PoE switch with Gigabit Uplink is a very handy and versatile PoE Network Switch.

It can power 4 X PTZ Cameras such as the very popular DS-2DE4220IW-DE and 12 X Fixed IP Network cameras, up to a total of 230 watts. Normally PoE+ High Power switches cost a lot more.

The Gigabit uplink port ensure lightening fast connectivity to you IT infrastructure.

Normally the maximum distance of a CAT5/Cat6 cable run can be no more than 100 metres, (90 metres recommended when using PoE), but this switch has Extended PoE built-in which lets you power IP network cameras up to an increbile 250 metres. (Maximum 6 watts power and 8Mbps throughput at 250 metres).

HIKVision PoE switches are specially designed for use with any PoE IP Network camera.

The DS-3E0318P-E 16 way HIKVision PoE switch also has 2 X SFP slots so you can easily add fibre capabilities for up to 20km data transmission.

Download the PDF Specifications here:

DS-3E0318P-E features include:

IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

16x10/100Mbps Auto-MDIX PoEports

Provides up to 30 watts per PoE port

PoE power budget 230W

4 KV surge protection for PoE ports

IEEE 802.3x flow control support

Plug-and-play installation

7.2 Gbps switching fabric

2.75 MbitsRAM Data Buffer

4K MAC address entries

Sturdy metal enclosure
