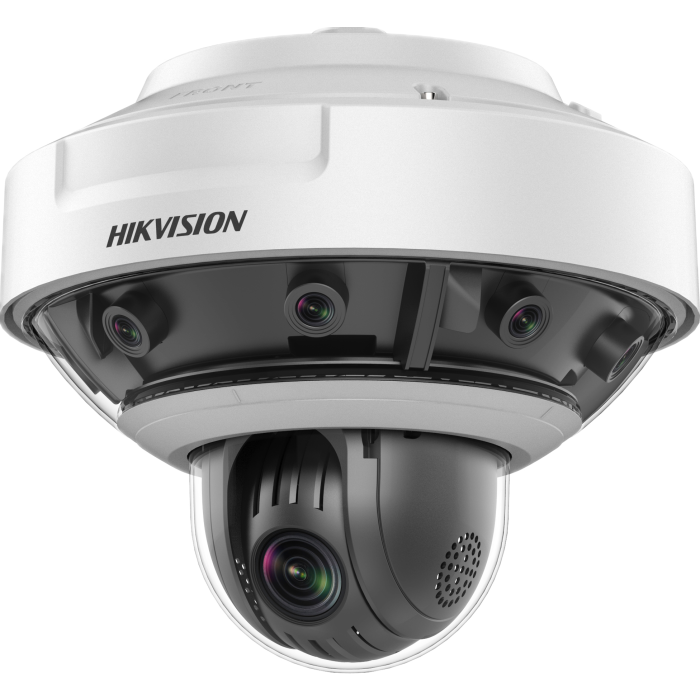

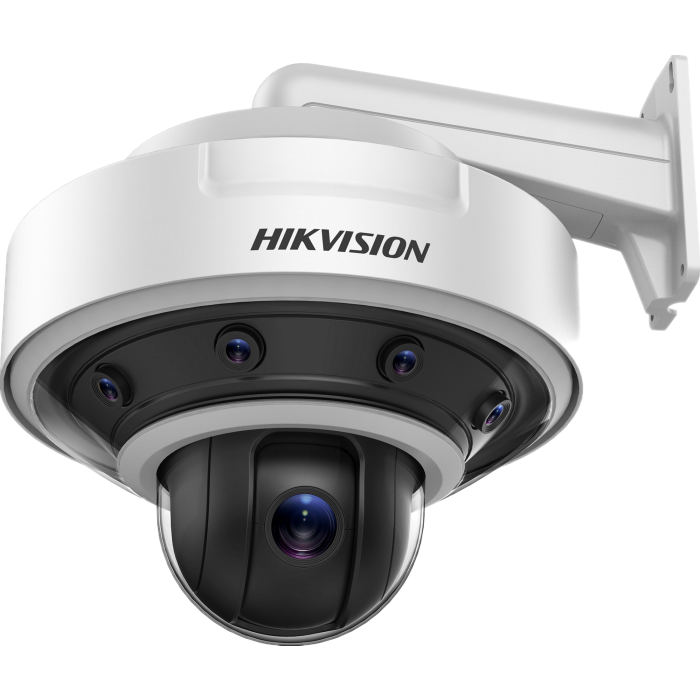

DS-2DP1636Z-D PanoVu series 360°Panoramic+PTZ Camera

_______________________________________________________________________________________________________________________________________

Panoramic Camera

Image Sensor:

1/1.9’’ Progressive Scan CMOS

Max. Image Resolution:

2 × 4096 × 1800

Min. Illumination:

Color: 0.005 Lux @ (F1.8, AGC ON), B/W: 0.0005Lux @ (F1.8, AGC ON)

Lens:

f5.0mm/ F2.2

Angle of View:

Horizontal angle of view: 360°, Vertical angle of view: 80°

Main Stream:

50Hz: 25fps 2 ×(4096 × 1800, 3840 × 1680, 2720×1192);
60Hz: 30fps 2 ×(4096 × 1800, 3840 × 1680, 2720×1192)

Sub Stream:

50Hz:25fps 2 ×(176 × 144, 352 × 288, 704 × 320)；
60Hz:30fps 2 ×(176 × 144, 352 × 288, 704 × 320)

Third Stream:

50Hz:25fps 2 ×(176 × 144, 352 × 288, 704 × 320, 1280 × 960, 1280 × 720, 1920 × 1080);
60Hz:30fps 2 ×(176 × 144, 352 × 288, 704 × 320, 1280 × 960, 1280 × 720, 1920 × 1080)

Image Compression:

H.264(Baseline, Main, High Profile)/MJPEG

HLC:

Support

Day& Night:

ICR

_______________________________________________________________________________________________________________________________________

Tracking PTZ Camera

Image Sensor:

1/1.9’’ Progressive Scan CMOS

Max. Image Resolution:

1920 × 1080

Minimum Illumination:

Color: 0.002Lux @ (F1.5, AGC ON), B/W: 0.0002Lux @ (F1.5, AGC ON)

Angle of View:

58.7°- 2.0°(Wide-Tele)

Zoom Speed:

Approx.6.6s (Optical Wide-Tele)

Focal Length:

5.7 – 205.2mm

White Balance:

Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Support

BLC:

On/Off

HLC:

Support

Day & Night:

IR Cut Filter

Optical Defog:

Support

ROI encoding:

Support 24 areas with adjustable levels

Main Stream:

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:

50Hz:25fps (704×576, 352×288, 176×144)
60Hz:30fps (704×480, 352×240, 176×120)

Third Stream:

50Hz:25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
60Hz:30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)

Image Compression:

H.264(Baseline, Main, High Profile)/MJPEG/MPEG4

WDR:

Ture WDR

Privacy Masking:

24 privacy masks programmable; optional multiple colors and mosaics

_______________________________________________________________________________________________________________________________________

Pan and Tilt

Pan Range:

360° endless

Pan Speed:

Pan Manual Speed: 0.1°~300°/s, Pan Preset Speed: 540°/s

Tilt Range:

-15°~ 90° (Auto flip)

Tilt Speed:

Tilt Manual Speed: 0.1°~240°/s, Tilt Preset Speed: 400°/s

Number of Preset:

300

Patrol:

8 patrols, up to 32 presets per patrol

Pattern:

4 patterns, with the recording time not less than 10 minutes per pattern

Park Action:

Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan

Scheduled Task:

Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Dome adjust/Aux output

Power-off memory:

Support

_______________________________________________________________________________________________________________________________________

System Function

One-touch Link:

Support

Tracking mode:

Manual/ Auto/ Mix

Number of Targets:

Up to 60 targets can be detected at the same time

Multiple Target Tracking:

Support

Smart Detection:

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

_______________________________________________________________________________________________________________________________________

Alarm

Alarm I/O:

7/2

Alarm Trigger:

Face detection, Audio exception detection, Motion detection, Dynamic analysis, Tampering alarm, , Network disconnect, IP address conflict, Storage exception

Alarm Action:

Preset / Patrol / Pattern / SD card recording/ Aux output/ E-map on Client/ Send Email/ Upload to FTP

_______________________________________________________________________________________________________________________________________

Input & Output

Audio Input:

1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

Audio Output:

1 Audio output interface, line level, impedance: 600Ω

_______________________________________________________________________________________________________________________________________

Network

Audio compression:

G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM

Protocol:

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE

Application programming:

Open-ended API, support Onvif, ISAPI, CGI

_______________________________________________________________________________________________________________________________________

System Integration

Menu:

English

User/Host Level:

Up to 32 users,3 Levels: Administrator, Operator and User

Security Measures:

User authentication (ID and PW); Host authentication (MAC address); IP address filtering

Web Browser:

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language

Simultaneous Live View:

Up to 20 users

Fiber Cable:

1 10M/100M FC interface, TX1310 / RX1550nm wavelength, 20 km transmission distance

Ethernet:

1 RJ45 100M/1000M Ethernet interface

RS485:

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Onboard Storage:

Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording

_______________________________________________________________________________________________________________________________________

General

Power supply:

DC 36V,

Consumption (without hard disk):

MAX. 120W (heater: 44W)

Working temperature:

-40 °C – 65 °C

Working humidity:

Humidity 90% or less

Protection Level:

IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection

Dimensions (W×D×H):

Φ390(mm)×361.3(mm)

Weight:

20kg (approx.)
