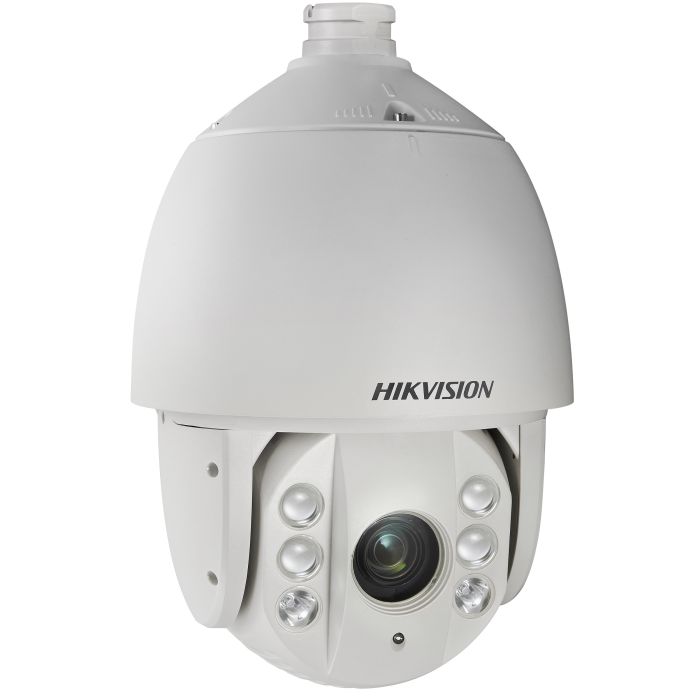

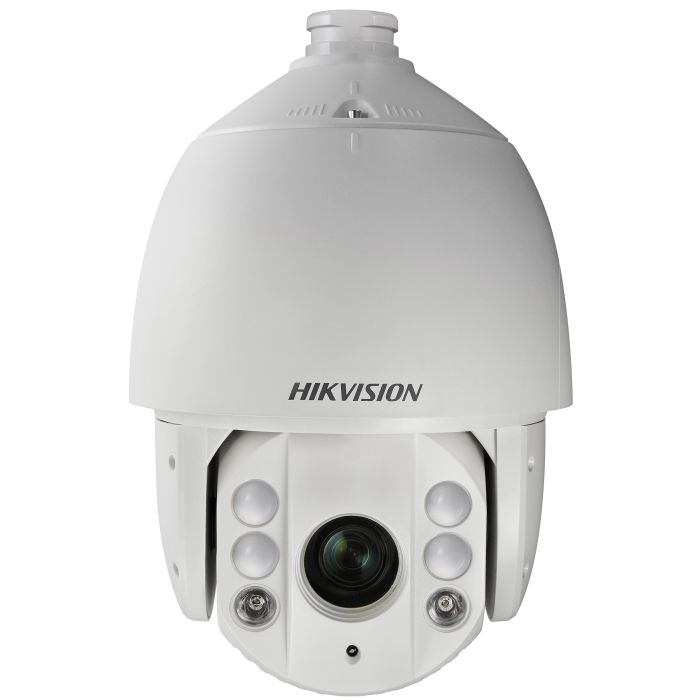

DS-2DE7520IW-AE 5MP 20x IR Network Speed Dome Camera

Camera

Image Sensor:

1/1.9" progressive scan CMOS

Effective Pixels:

2592 × 1944

Signal System:

PAL/NTSC

Minimum Illumination:

Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.002 Lux @(F1.5, AGC ON)
0 Lux with IR

White Balance:

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Auto/Manual

BLC:

ON/OFF

HLC:

Support

Smart defog:

Support

WDR:

DWDR

Shutter Time:

50Hz: 1/1 s to 1/30,000 s
60Hz: 1/1 s to 1/30,000 s

Day& Night:

ICR

Digital Zoom:

16×

Privacy Masking:

8 privacy masks programmable

Auto Focus:

Auto / Semi-automatic / Manual

Lens

Focal Length:

5.9 mm to 118 mm, 20× Optical Zoom

Zoom Speed:

Approx. 4.3 s (Optical Lens, Wide-Tele)

Angle of View:

51.3° to 3.7° (Wide-Tele)

Minimum Working Distance:

10 mm to 1500 mm (Wide-Tele)

Aperture Range:

F1.5 to F3.0

Pan & Tilt

Pan Speed:

Configurable, from 0.1°/s to 160°/s, Preset Speed: 240°/s

Tilt Range:

-15°-90° (Auto Flip )

Tilt Speed:

Configurable, from 0.1°/s to 120°/s, Preset Speed: 200°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

300

Patrol:

8 patrols, up to 32 presets for each patrol

Pattern:

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory:

Support

Park Action:

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display:

ON/OFF

Infrared

IR irradiation distance:

150m

IR irradiation angle:

Adjustable by zoom

Alarm

Alarm Input:

2

Input & Output

Audio Input:

Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%

Audio Output:

1 channel audio output, linear level

Network

Ethernet:

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:

2592 × 1944

Main Stream:

50Hz: 25fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (2592 × 1944, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:

50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)

Video Compression:

Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG

ROI encoding:

Support 4 areas with adjustable levels

Audio Compression:

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Protocols:

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

No. of Simultaneous Users:

Up to 20 users

Three-Stream:

Support

Mini SD Card:

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

Hik-Connect:

Support

General

Power Supply:

24 VAC & Hi-PoE

Power Consumption:

Max.: 40 W
IR: 19 W

Working Temperature/Humidity:

Outdoor: -30°C to 65°C (-22°F to 149°F)
≤ 90%

Protection Level:

TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions:

Φ 220 mm × 353.4 mm (Φ 8.66" × 13.91")

Weight (approx.):

Approx. 4.5 kg (9.92 lb)
