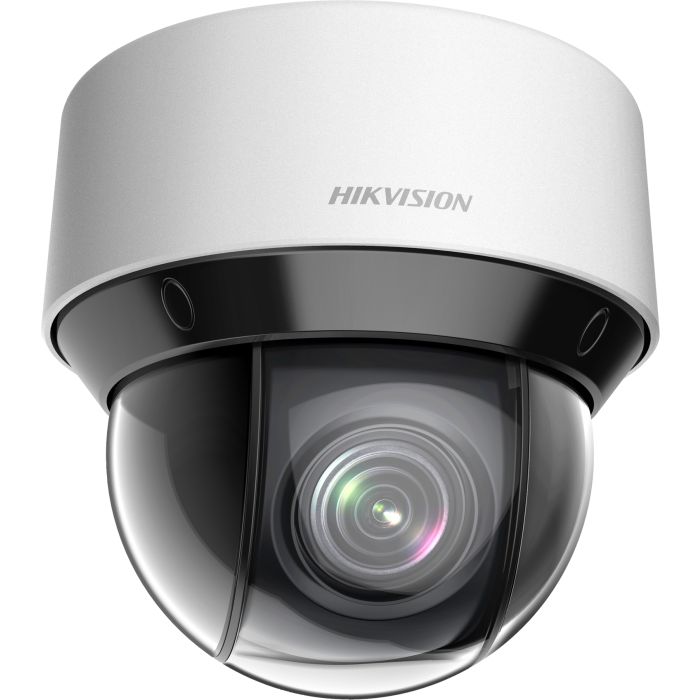

DS-2DE4A204IW-DE 2MP Network IR PTZ Camera

Camera

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color: 0.002 Lux @(F1.6, AGC ON)
B/W: 0.0002Lux @(F1.6, AGC ON)
0 Lux with IR

White Balance:

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Auto/Manual

BLC:

ON/OFF

HLC:

Support

WDR:

DWDR

Shutter Time:

1/1 to 1/30,000s

Day& Night:

ICR

Digital Zoom:

16×

Privacy Masking:

8 privacy masks programmable

Auto Focus:

Auto / Semi-automatic / Manual

_______________________________________________________________________________________________________________________________________

Lens

Focal Length:

2.8 mm to 12 mm

Zoom Speed:

Approx. 2.2 s (optical lens, wide-tele)

Angle of View:

90.1° to 31° (wide-tele)

Minimum Working Distance:

10 to 1500mm (wide-tele)

Aperture Range:

F1.5 to F2.8

_______________________________________________________________________________________________________________________________________

Pan & Tilt

Pan Range:

360°endless

Pan Speed:

Configurable, from 0.1°/s to 300°/s
Preset Speed: 350°/s

Tilt Range:

-5°~90° (Auto Flip )

Tilt Speed:

Configurable, from 0.1°/s to 160°/s
Preset Speed: 200°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

300

Patrol:

8 patrols, up to 32 presets for each patrol

Pattern:

4 pattern scans, record time over 10 minutes for each scan

Power-off Memory:

Support

Park Action:

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display:

ON/OFF

_______________________________________________________________________________________________________________________________________

Infrared

IR irradiation distance:

50m

IR irradiation angle:

Adjustable by zoom

_______________________________________________________________________________________________________________________________________

Alarm

Alarm Input:

2

Alarm Output:

2

Alarm Actions:

Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

_______________________________________________________________________________________________________________________________________

Input & Output

Audio Input:

Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%

Audio Output:

1 Audio output interface
Line level, impedance: 600Ω

_______________________________________________________________________________________________________________________________________

Network

Ethernet:

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:

1920×1080

Main Stream:

50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)

Sub Stream:

50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)

Third Stream:

50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)

Video Compression:

H.265/H.264/MJPEG

Audio Compression:

G.711ulaw/G.711alaw/G.726/MP2L2/G.722

No. of Simultaneous Users:

Up to 20 users

Three-Stream:

Support

Mini SD Card:

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

Security Measures:

User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering

_______________________________________________________________________________________________________________________________________

Client GUI

Client:

Support iVMS-4200

_______________________________________________________________________________________________________________________________________

General

Power Supply:

12 VDC &POE (802.3at,class4)

Power Consumption:

Max.: 18W (IR light 5W Max.)

Working Temperature/Humidity:

Outdoor: -30°C to 65°C (-22°F to 149°F)
Humidity:≤ 90%

Protection Level:

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting:

Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, junction box installation and wall mounting

Dimensions:

Φ169.39mm ×161mm (Φ6.67"×6.34")

Weight (approx.):

Approx. 2.45kg (5.40lb)
