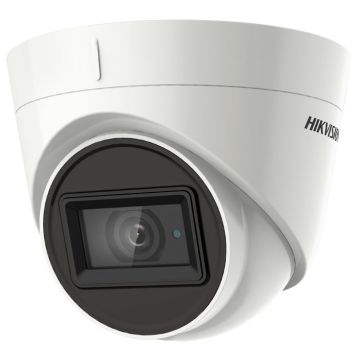

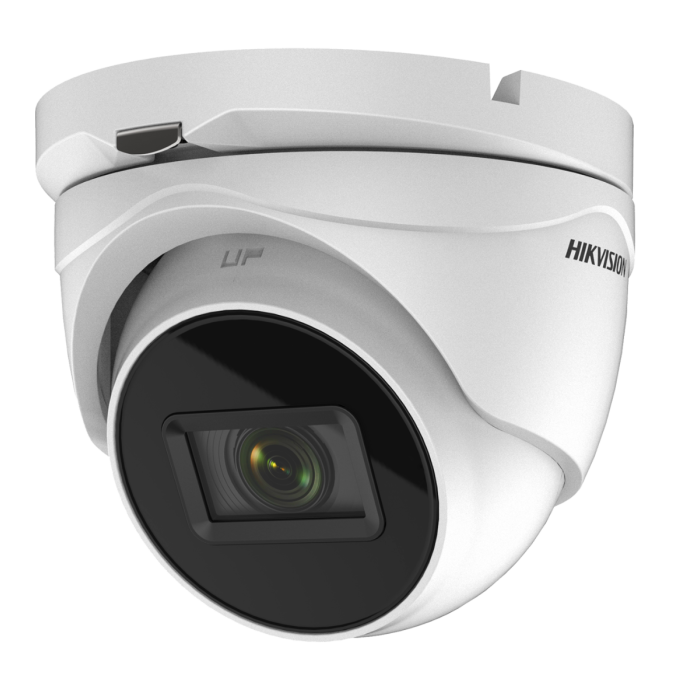

DS-2CE79H8T-AIT3ZF 5 MP Ultra-Low Light Turret Dome Camera

Click Here for the PDF Specifications!

SPECIFICATIONS:

Camera:

• Image Sensor: 5 MP CMOS
• Signal System: PAL/NTSC
• Frame Rate: TVI: 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps AHD: 5MP@20fps, 4MP@25fps, 4MP@30fps CVI: 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
• Resolution: 2560 (H) × 1944 (V)
• Min. Illumination: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/12.5s to 1/50, 000 s NTSC: 1/15 s to 1/50, 000 s
• Lens: 2.7 mm to 13.5 mm motorized varifocal lens
• Horizontal Field Of View: 92.3° to 29.3°
• Lens Mount: Φ14
• Day & Night: ICR
• WDR (Wide Dynamic Range): ≥130 dB
• Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Menu:

• Image Mode: STD/HIGH-SAT
• AGC: Support
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: ATW/MANUAL
• HLC: Yes
• BLC (Backlight Compensation): Yes
• Language: English
• Functions: Brightness, Sharpness, Mirror, Smart IR

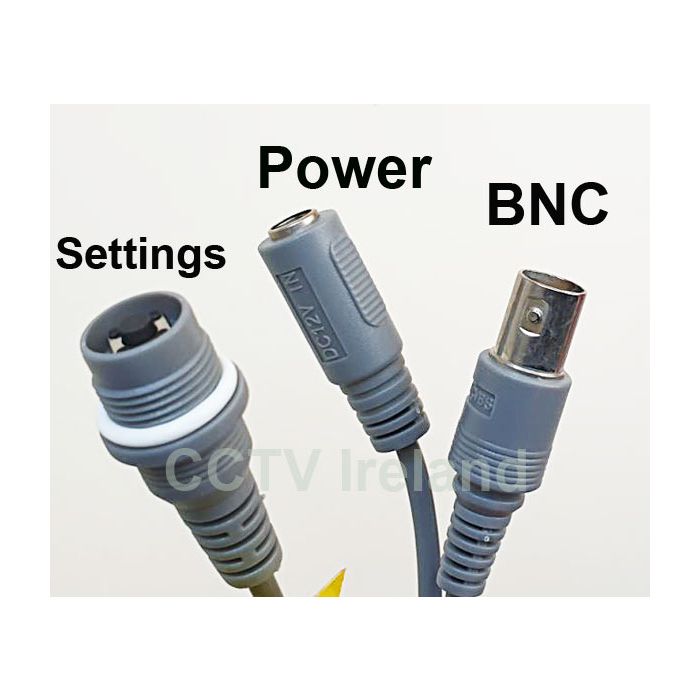

Interface:

• Video Output: Switchable TVI/AHD/CVI/CVBS

General:

• Operating Condition: -40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Power Supply: 12 VDC ± 20%, 24 VAC ± 20%
• Power Consumption: Max. 10.5 W
• Protection Level: IP67
• Material: Metal
• IR Range: Up to 60 m
• Communication: HIKVISION-C
• Dimensions: 123.86 mm × 134.3 mm × 110.24 mm (4.88" × 5.29" × 4.34")
• Weight: Approx. 630 g (1.39 lb.)
