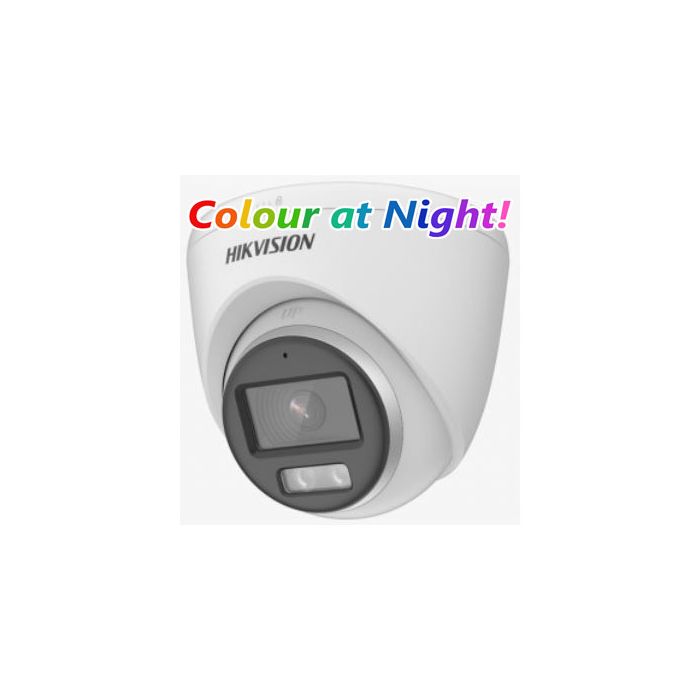

DS-2CE72KF3T 5MP 3K ColorVu Fixed Turbo Turret Camera

Camera:

• • Lens
  • Lens Type2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV

    2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°

    3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°

  • Lens Mount M16
  • Image
  • Frame Rate 3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
  • Wide Dynamic Range (WDR)≥130 dB
  • White Ligh tAuto/Off
  • Image Parameters Switch STD/HIGH-SAT/HIGHLIGHT
  • AGC Yes
  • Day/Night Mode Colour
  • White Balance Auto/Outdoor/Global/Manual
  • Image Enhancement WDR;BLC;HLC;Global;HLS
  • Privacy Mask 4 programmable privacy masks
  • Noise Reduction 3D DNR/2D DNR
  • Image Settings Anti-Banding;Smart Light;Brightness;Contrast;Mirror
  • Interface
  • Video Output 1 HD analog output
  • Event
  • Motion Detection 4 programmable motion areas
  • General
  • Language English
  • Operating Condition-40°C to 50°C (-40°F to 122°F), Humidity: 90% or less (non-condensing)
  • Power Supply

    12 VDC ± 25%

    *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

  • Consumption Max. 5.3 W
  • Material Main body: Metal, Enclosure: Plastic
  • White Light Range Up to 30 m
  • Communication HIKVISION-C
  • Dimension Φ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
  • Weight Approx. 350 g (0.77 lb.)
  • Approval
  • Protection IP67
•

  • Image Sensor 1/1.8" 3K CMOS
  • Signal System PAL/NTSC
  • Max. Resolution 2960 (H) × 1665 (V)
  • Min. Illumination 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Light: Solid LED light (White Light)
  • Angle Adjustmen tPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
