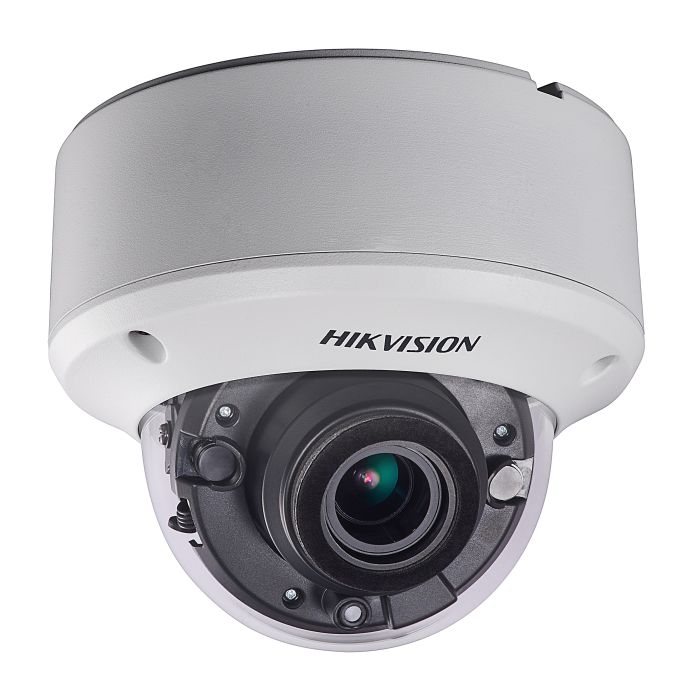

DS-2CE56D8T-VPIT3Z 2MP Ultra-Low Light Dome Camera
Description / DS-2CE56D8T-VPIT3Z 2MP Ultra-Low Light Dome Camera
CLICK HERE FOR THE PDF SPECIFICATIONS:Â
| -Camera- | ||
|---|---|---|
| Image Sensor: | | | 2MP CMOS Image Sensor |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 1920(H)*1080(V) |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens Mount: | | | φ14 |
| Adjustment Range: | | | Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120dB |
| Video Frame Rate: | | | 1080p@25fps/1080p@30fps |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| Up the Coax: | | | Support |
| -Â Menu- | ||
| Auto White Balance: | | | Auto/MWB |
| BLC: | | | Support |
| AGC: | | | Support |
| Language: | | | English/Chinese |
| -Â General- | ||
| Operating Conditions: | | | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC±25% -A: 12 VDC±25%, 24 VDC±25% |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 40m |
| Communication : | | | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: | | | Φ 145.2 mm × 124.1 mm (Φ 5.72" × 4.89" ) |
| Weight: | | | Approx. 1600 g (3.53 lb.) |
Â
Â
More Information
| Manufacturer | HIKVision |
|---|
