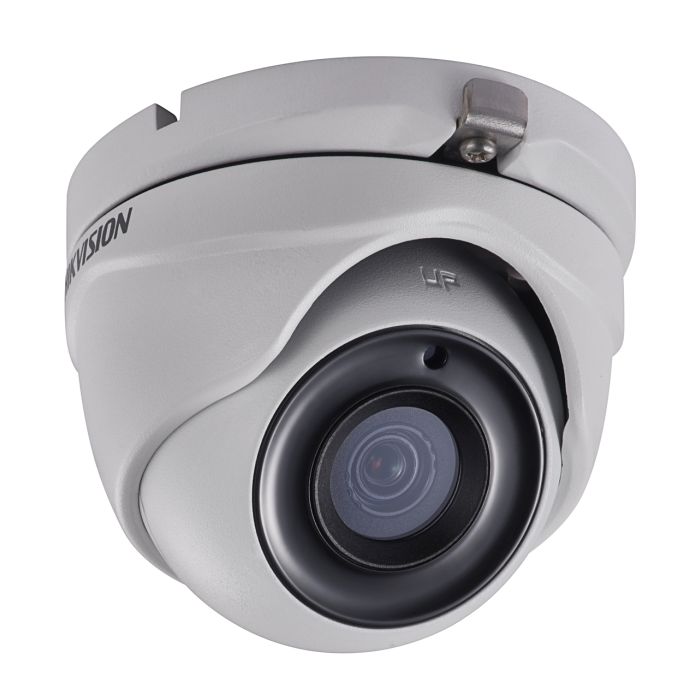

DS-2CE56D8T-ITM 2MP Mini Turret Dome Camera
Description / DS-2CE56D8T-ITM 2MP Mini Turret Dome Camera
Key Features:
2.0 megapixel high-performance CMOS
HD analog output, up to 1080p resolution
2.8 mm, 3.6 mm, 6 mm fixed focal lens
True Day/Night
120 dB true WDR
OSD menu, DNR, Smart IR
EXIR 2.0, up to 20 m IR distance
IP67
Up the Coax (HIKVISION-C)
Click here for the DS-2CE56D8T-ITM Mini-Dome PDF:
DS-2CE56D-8T-ITM Specifications:
| Camera | ||
|---|---|---|
| Image Sensor: | 2MP CMOS Image Sensor | |
| Signal System: | PAL/NTSC | |
| Effective Pixels: | 1920(H)*1080(V) | |
| Min. Illumination: | Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR | |
| Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
| Lens: | 2.8 mm, 3.6 mm, 6 mm fixed focal lens | |
| Lens Mount: | M12 | |
| Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120dB | |
| Video Frame Rate: | 1080p@25fps/1080p@30fps | |
| HD Video Output: | 1 Analog HD output | |
| Synchronization: | Internal Synchronization | |
| Up the Coax: | Support | |
| Menu | ||
|---|---|---|
| Auto White Balance: | Auto/MWB | |
| BLC: | Support | |
| AGC: | Support | |
| Language: | English/Chinese | |
| Function: | Brightness, Sharpness, Mirror, Smart IR | |
| General | ||
|---|---|---|
| Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC±25% | |
| Power Consumption: | Max. 3.5 W | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 20m | |
| Communication : | Up the coax Protocol: HIKVISION-C(Coaxitron) |
|
| Dimension: | 91mm×82.6mm×68.3mm (3.58"×3.25"×2.69") | |
| Weight: | Approx. 350g (0.77lb) | |
More Information
| Manufacturer | HIKVision |
|---|
