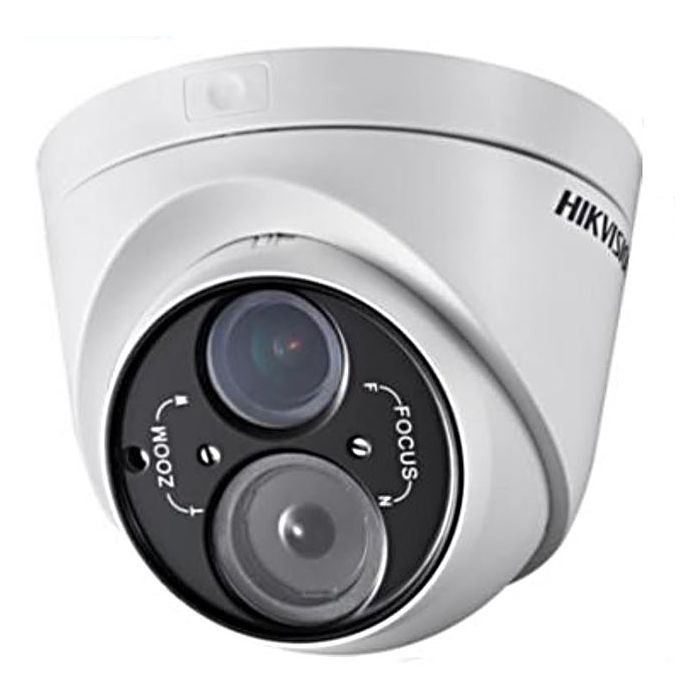

DS-2CE56D5T-VFIT3 Full HD Vari-focal Turbo TVI & Analogue CVBC Dome Camera 2.8-11mm lens
Description / DS-2CE56D5T-VFIT3 Full HD Vari-focal Turbo TVI & Analogue CVBC Dome Camera 2.8-11mm lens
The DS-2CE56D5T-VFIT3 is used extensively in the retail sector where it's 1080p Full HD image quality and 2.8-11mm Vari-focal lens make it ideal for protecting tills, Point of sale and cash registers in shops, pubs, hotel, etc.
Very clear images Full High Definition footage for maiximum protection of staff, stock and money.
Easy to use Turbo TVI, this camera uses the same cabling and power suppies as most older, non-HD camera. making it very inexpensive to upgrade, just change the camera and recorder to the new Turbo HD system and benefit from amazing clarity and detail never available before.
DS-2CE56D5T-VFIT3 pdf Specifications:
- 2 Megapixel high-performance CMOS
- Analog HD output, up to 1080P resolution
- True Day/Night
- OSD menu, 3D DNR, Smart IR
- True WDR, up to 120dB
- EXIR technology, up to 50m IR distance
- IP66 weatherproof
- Up the Coax(HIKVISION-C, Pelco-C Protocol
| DS-2CE56D5T-VFIT3 Camera Details | ||
|---|---|---|
| Image Sensor: | | | 2MP CMOS Image Sensor |
| Signal System: | | | PAL/NTSC |
| Effective Pixels: | | | 1944(H)×1092(V) |
| Min. Illumination: | | | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR 0.014 Lux @ (F1.4,AGC ON),0 Lux with IR |
| Shutter Time: | | | 1/25(1/30) s to 1/50,000 s |
| Lens: | | | 2.8-12mm @ F1.4 Angle of view: 103° - 32.1° |
| Lens Mount: | | | φ14 |
| Adjustment Range: | | | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120dB |
| Video Frame Rate: | | | 1080p@25fps/1080p@30fps |
| HD Video Output: | | | 1 Analog HD output |
| Synchronization: | | | Internal Synchronization |
| CVBS Output: | | | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio: | | | More than 62 dB |
| Up the Coax: | | | Support |
| Menu | ||
| Camera ID: | | | On/off (15 characters, position programmable) |
| D/N Mode: | | | Color/ BW/ EXT |
| Auto White Balance: | | | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask: | | | On/Off, maximum 8 zones |
| Motion Detection: | | | On/Off, maximum 4 zones |
| BLC: | | | On/Off |
| AGC: | | | Support |
| Anti-flicker: | | | On/ Off |
| Language: | | | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function: | | | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Scene: | | | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC±15% |
| Power Consumption: | | | Max. 7W |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 50m |
| Dimension: | | | φ130.54 × 93.24 mm (φ5.14” × 3. 67”) |
| Weight: | | | 670 g |
More Information
| Manufacturer | HIKVision |
|---|
