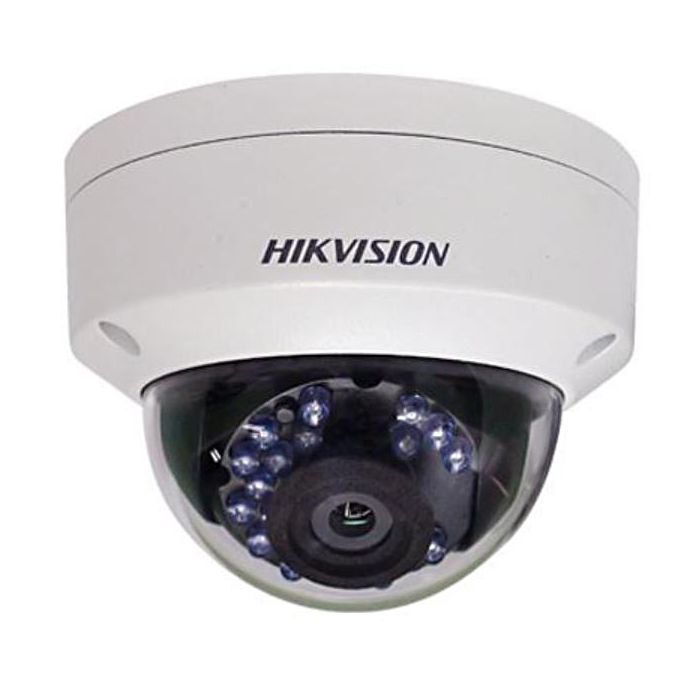

DS-2CE56D1T-VPIR3 Full HD Vandal Resistant Dome Camera With Vari-focal Lens

Description / DS-2CE56D1T-VPIR3 Full HD Vandal Resistant Dome Camera With Vari-focal Lens

DS-2CE56D1T-VPIR3 Vandal Dome IR Turbo TVI Vari-fcoal Camera

· 2 Megapixel high-performance CMOS

· Analog HD output, up to 1080P resolution

· 2.8 – 12mm vari-focal lens

· True Day/Night, Smart IR

· Up to 40m IR distance

· IP66 weatherproof & vandal proof

· OSD menu

· Up the Coax(HIKVISION-C Protocol)

· 24V AC/ 12V DC (-A)

Professional Camera from the World Leaders in CCTV.

DS-2CE56D1T-VPIR3 Specifications

Camera
Image Sensor:	\|	2MP CMOS Image Sensor
Signal System:	\|	PAL/NTSC
Effective Pixels:	\|	1930(H) × 1088(V)
Min. Illumination:	\|	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:	\|	1/25(1/30) s to 1/50,000 s
Lens:	\|	2.8 - 12 mm @ F1.4, Angle of view: 114.5°- 35.1°
Lens Mount:	\|	φ14
Adjustment Range:	\|	Pan: 0 - 355°, Tilt: 0 - 75°, Rotation: 0 - 355°
Day& Night:	\|	IR cut filter with auto switch
Video Frame Rate:	\|	1080p@25fps/1080p@30fps
HD Video Output:	\|	1 Analog HD output
Synchronization:	\|	Internal Synchronization
S/N Ratio:	\|	More than 62 dB
Menu
Camera ID:	\|	On/Off (0-255)
D/N Mode:	\|	Color/ BW/ Auto/ EXT
Auto White Balance:	\|	Auto/User/Push/8000K/6000K/4200K/3000K
Private Mask:	\|	On/Off, maximum 8 zones
Motion Detection:	\|	On/Off, maximum 4 zones
BLC:	\|	On/Off
AGC:	\|	Support
Anti-flicker:	\|	On/ Off
Language:	\|	English/Chinese
Function:	\|	Digital noise reduction, Mirror
General
Operating Conditions:	\|	-20 °C - 45 °C (-4 °F - 113 °F) Humidity 90% or less (non-condensing)
Power Supply:	\|	12 VDC±15% -A: 12 VDC±15%, 24 VAC±15%
Power Consumption:	\|	Max. 3W -A: Max. 4W
Impact Protection:	\|	IK10.
Weather Proof:	\|	IP66
IR Range:	\|	Up to 40m
Communication :	\|	Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:	\|	Φ 145.2 × 124.1 mm (Φ 5.72” × 4.9”)
Weight:	\|	1300 g
