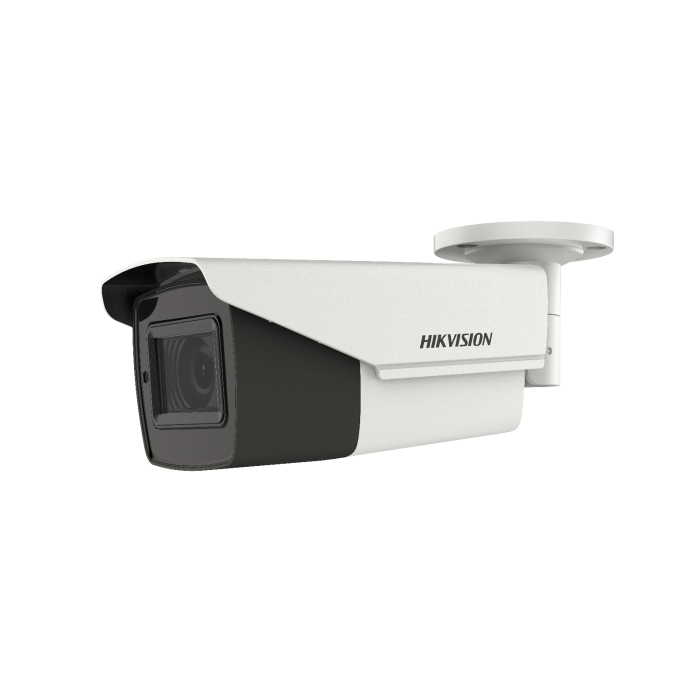

DS-2CE19H8T-AIT3ZF 5MP 80M IR Motorised Zoom Lens

Click Here for PDF Specifications!

• • 5 MP High Performance CMOS
• • Up to 2560 x 1944 Resolution
• • 2.7 mm to 13.5 mm Motorized Varifocal Lens
• • EXIR 2.0 up to 260 ft (80 m) IR Range
• • Smart IR • 130dB True WDR, 3D DNR
• • Multiprotocol Output: TVI/AHD/CVI/CVBS
• • Up-the-Coax (HIKVISION-C)
• • IP67 Protection

SPECIFICATIONS:

Camera

• Lens: 2.7 mm to 13.5 mm motorized varifocal lens
• Horizontal Field Of View: 92.3° to 29.3°
• Lens Mount: Φ 14
• Day & Night: IR cut filter
• Synchronization: Internal synchronization
• WDR (Wide Dynamic Range): ≥ 130 dB
• Angle Adjustment: Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
• Image Sensor: 5 megapixel progressive scan CMOS
• Signal System: PAL/NTSC
• Frame Rate: TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps CVI: 4 MP@25fps, 4 MP@30fps CVBS: PAL, NTSC
• Resolution2560 (H) × 1944 (V)
• Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Menu

• AGC: Yes
• Day/Night Mode: Auto/Color/BW (Black and White)
• White Balance: Auto/Manual
• Privacy Mask: 4 programmable privacy masks
• Motion Detection: 4 programmable areas
• Backlight Compensation: Yes
• WDR: Yes
• 3D DNR (Digital Noise Reduction): Level 1 to 9
• Language: English
• Functions: Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Interface

• Video Output: 1 HD analog output
• Switch Button: TVI/AHD/CVI/CVBS

General

• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
• Power Supply: -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC
• Power Consumption: -A: Max. 10.5 W
• Material: Metal
• IR Range: Up to 80 m
• Communication: Up the coax, Protocol: HIKVISION-C (TVI output)
• Dimensions: 84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
• Weight: Approx. 930 g (2.05 lb.)
• Ingress Protection: IP67
