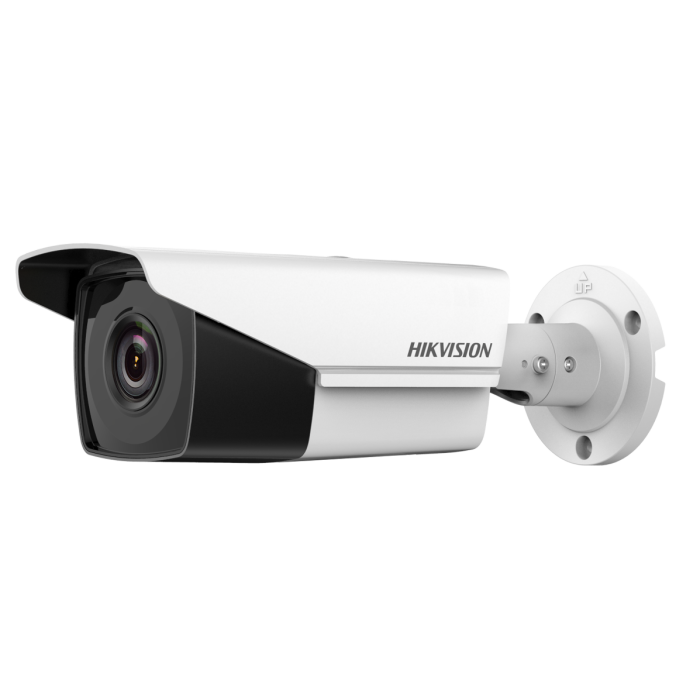

DS-2CE16D8T-IT3ZF 2 MP Motorised Zoom Bullet Camera

Click Here for the PDF Specifications!

SPECIFICATIONS:

Camera:

• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
• Resolution1920 (H) × 1080 (V)
• Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Lens2.7 mm to 13.5 mm motorized, auto focus
• Horizontal Field Of View103° to 32.1°
• Lens MountM12
• Day & NightICR
• WDR (Wide Dynamic Range)≥ 130 dB
• Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Menu:

• Image ModeSTD/HIGH-SAT
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceATW/MANUAL
• HLCYes
• BLC (Backlight Compensation)Yes
• LanguageEnglish
• FunctionsBrightness, Sharpness, Mirror, Smart IR

Interface:

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General:

• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• Power Supply12 VDC ± 25%
• Power ConsumptionMax. 7.5 W
• Protection LevelIP67
• MaterialMetal
• IR RangeUp to 80 m
• CommunicationHIKVISION-C
• Dimensions85 mm × 92 mm × 269.6 mm (3.3" × 3.6" × 10.6")
• WeightApprox. 910 g (2.01 lb.)

This is a motorised zoom lens - the camera zooms in on a fixed spot, it does not move around.
