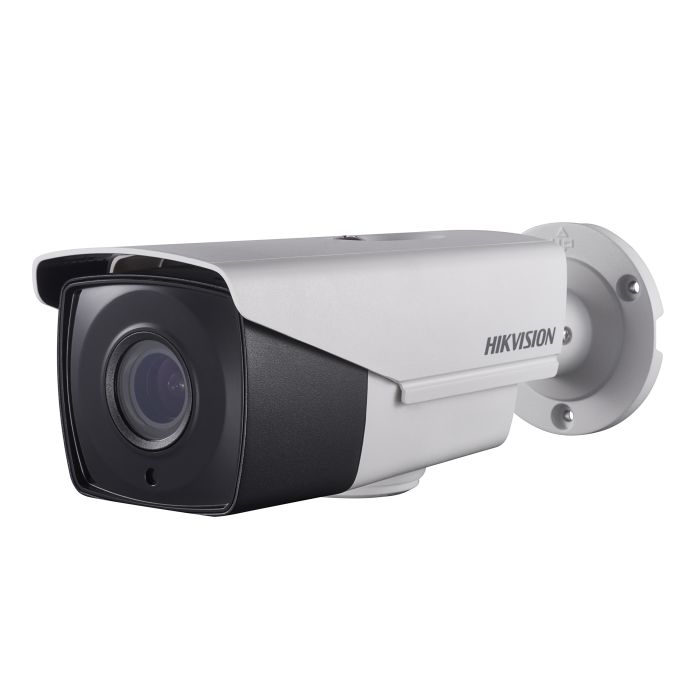

DS-2CE16D8T-IT3Z 2MP High Definition Turbo TVI Motorised Zoom Lens Bullet Camera.pdf
Description / DS-2CE16D8T-IT3Z 2MP High Definition Turbo TVI Motorised Zoom Lens Bullet Camera.pdf
2 MP Ultra Low-Light VF EXIR Bullet Camera
- •    2 Megapixel high-performance CMOS
- •    Analog HD output, up to 1080P resolution
- •   2.8-12mm motorized vari-focal lens
- •    True Day/Night
- •    OSD menu, DNR, Smart IR
- •    True WDR, up to 120dB
- •    EXIR 2.0, up to 40m IR distanceÂ
- •    IP67
- •    Up the Coax(HIKVISION-C)
CLICK HERE FOR THE PDF SPECIFICATIONS:Â
Â
| Camera | ||
|---|---|---|
| Image Sensor: |  | 2MP CMOS Image Sensor |
| Signal System: | Â | PAL/NTSC |
| Effective Pixels: | Â | 1920(H)*1080(V) |
| Min. Illumination: |  | Color: 0.005 Lux @ (F1.8 AGC ON), 0 Lux with IR |
| Shutter Time: |  | 1/25(1/30) s to 1/50,000 s |
| Lens: |  | 2.8 mm to 12 mm motorized vari-focal lens |
| Lens Mount: |  | φ14 |
| Adjustment Range: |  | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° |
| Day& Night: |  | IR cut filter with auto switch |
| Wide Dynamic Range: | Â | 120dB |
| Video Frame Rate: | Â | 1080p@25fps/1080p@30fps |
| HD Video Output: |  | 1 Analog HD output |
| Synchronization: |  | Internal Synchronization |
| Up the Coax: | Â | Support |
| Menu | ||
| Auto White Balance: | Â | Auto/MWB |
| BLC: | Â | Support |
| AGC: | Â | Support |
| Language: | Â | English/Chinese |
| Function: |  | Brightness, Sharpness, Mirror, Smart IR |
| General | ||
| Operating Conditions: |  | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply: |  | 12 VDC±25%/PoC.at |
| Power Consumption: |  | Max. 9W |
| Weather Proof: | Â | IP67 |
| IR Range: |  | Up to 40m |
| Communication : |  | Up the coax Protocol: HIKVISION-C(Coaxitron) |
| Dimension: |  | 92mm×84.8mm×269.6mm (3.62”×3.34”×3.34”) |
| Weight: |  | Approx. 900g ( 1.98lb) |
More Information
| Manufacturer | HIKVision |
|---|
