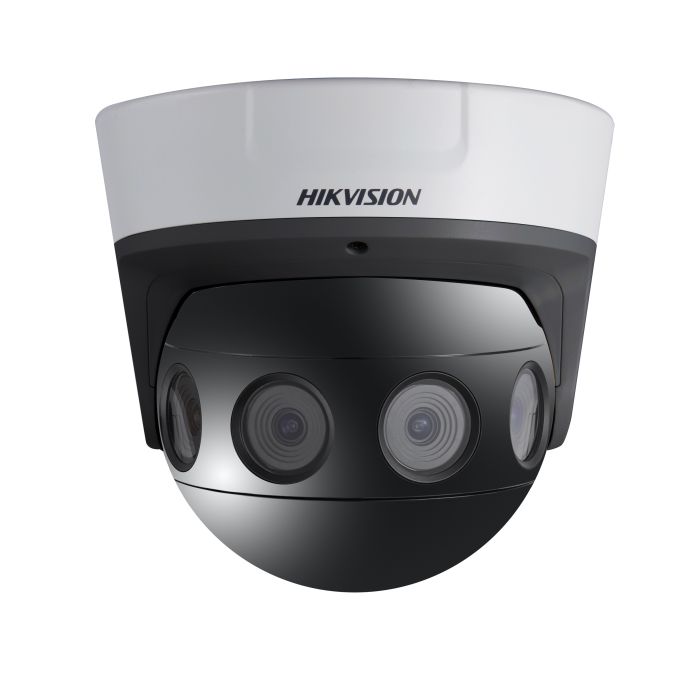

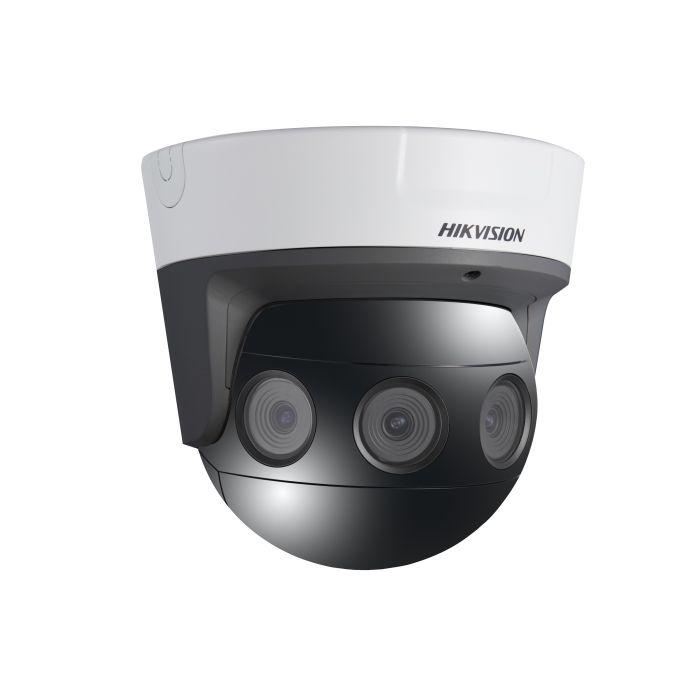

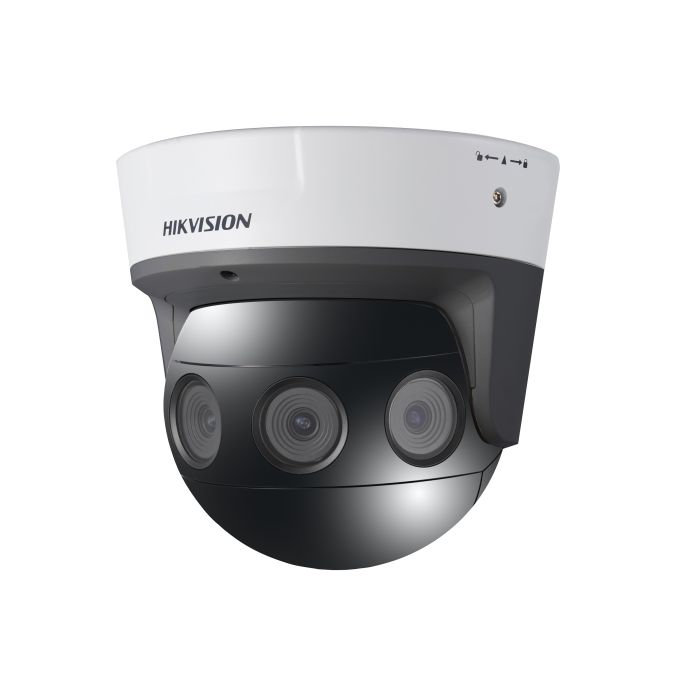

DS-2CD6924F-IS 8MP PanoVu Series Panoramic Dome Camera

_______________________________________________________________________________________________________________________________________

 Camera

Image Sensor:

1/2.8" Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

Color: 0.002 Lux @ (F1.2, AGC ON), 0.007Lux @ (F1.8, AGC ON),
B/W: 0.0008Lux @(F1.2, AGC ON), 0.002Lux @(F1.8, AGC ON), 0 Lux with IR

Shutter time:

1/25s ~ 1/100,000s

Lens:

4 × 4 mm lens

Lens Mount:

M12

Adjustment Range:

Pan: 0° to 355°, tilt: 0° to 90°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

Digital WDR

Digital noise reduction:

3D DNR

_______________________________________________________________________________________________________________________________________

Compression Standard

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

H.264 code profile:

Baseline Profile / Main Profile / High Profile

Video bit rate:

32Kbps~16Mbps

Audio Compression:

G.711/G.722.1/G.726/MP2L2

Audio bit rate:

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Dual Stream:

Yes

_______________________________________________________________________________________________________________________________________


Max. Image Resolution:

4096×1800

Frame Rate:

Panorama mode 50Hz: 25fps (4096 × 1800, 4096 × 1440, 4096 × 1080)
60Hz: 30fps (4096 × 1800, 4096 × 1440, 4096 × 1080)
Original mode 50Hz: 25fps (2160 × 3840, 1080 × 1920)
60Hz: 30fps (2160 × 3840, 1080 × 1920)

Sub Stream:

Panorama mode 50HZ: 25fps (704 × 320)
60HZ: 30fps (704 × 320)
Original mode 50HZ: 25fps (480 × 768, 320 × 512)
60HZ: 30fps (480 × 768, 320 × 512)

Image Enhancement:

BLC/ 3D DNR/HLC

Image Settings:

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

HLC:

Support

3D DNR:

Support

Picture Overlay:

LOGO picture can be overlaid on video with 128x128 24bit bmp format

Day/Night Switch:

Auto/Schedule/Triggered by Alarm In (with –S model)

_______________________________________________________________________________________________________________________________________

Network

Network Storage:

NAS (Support NFS,SMB/CIFS), ANR

Alarm Trigger:

Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception

Protocols:

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour

General Function:

User Authentication, Watermark, IP address filtering

System Compatibility:

ONVIF (Profile S, Profile G), ISAPI

_______________________________________________________________________________________________________________________________________

 Interface

Audio:

With –S model: 1 input (line in), 1 output

Alarm:

-S Model: 2 Inputs, 2 outputs (max. 24 VDC, 1 A/110 VAC, 500 mA)

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

Yes

_______________________________________________________________________________________________________________________________________

 General

Power Consumption:

12 VDC, 1.5A, max. 18W
PoE (802.3at, 42.5V to 57V), 0.6A to 0.4A, max. 25W

Weather Proof:

IP67

Dimensions:

190 × 207 × 208 mm (7.5" × 8.2" × 8.2")

Weight:

3500 g (7.7 lb.)
