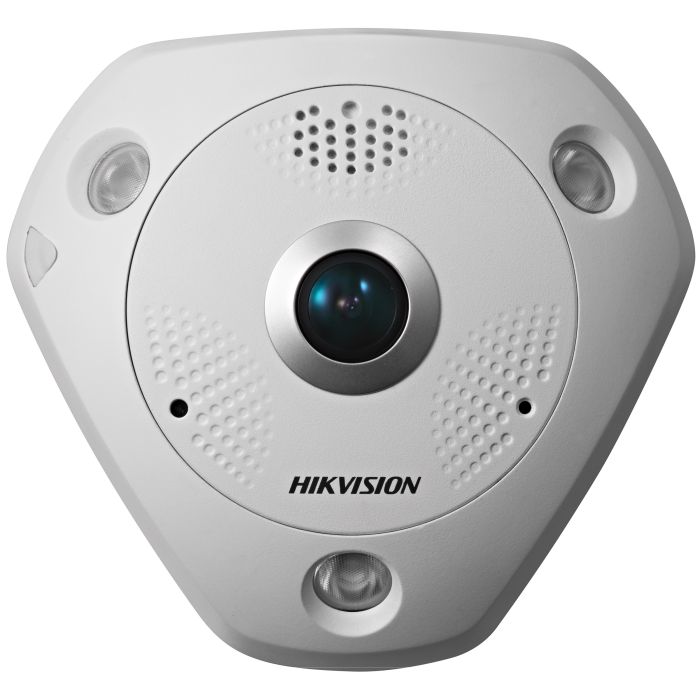

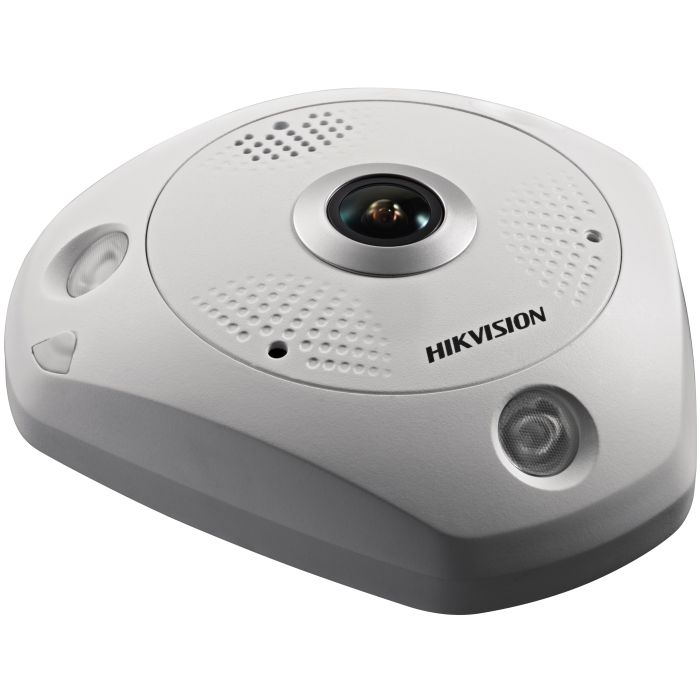

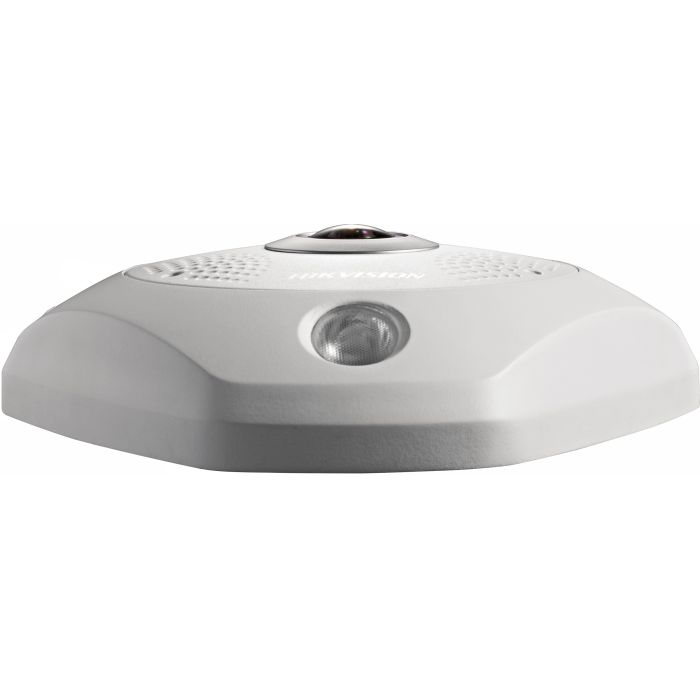

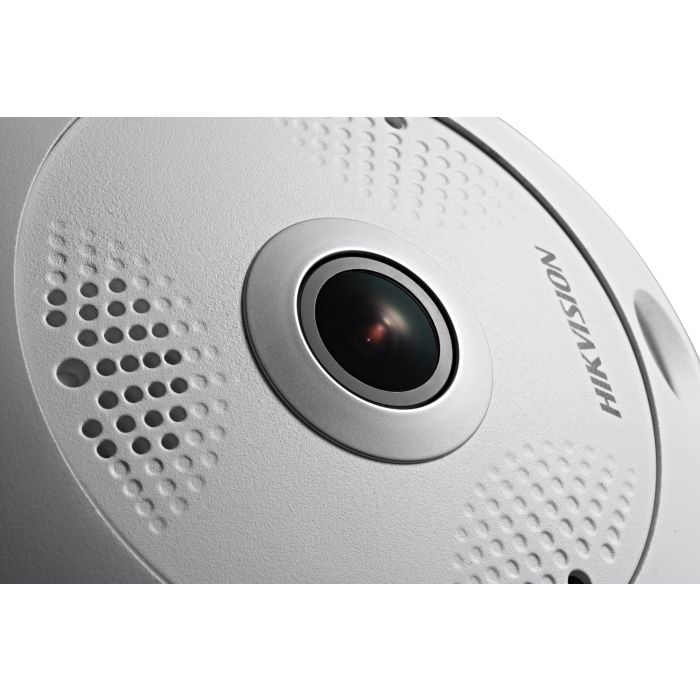

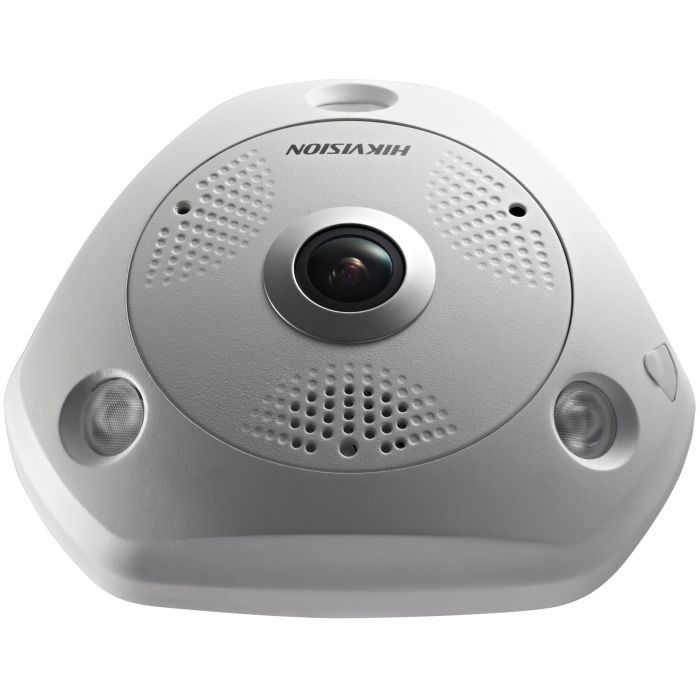

DS-2CD63C2F-IS HD 12mp 360º View Fisheye Camera

_______________________________________________________________________________________________________________________________________

Camera

Image Sensor:

1/1.7" Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

0.01 Lux @ (F1.2, AGC ON),
0.04 Lux @ (F2.4, AGC ON),
0 Lux with IR

Shutter time:

1/25(1/30)s ~ 1/100,000s

Lens:

2mm @F2.4, angle of view: 360°

Lens Mount:

M12

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

Digital WDR

Digital noise reduction:

3D DNR

_______________________________________________________________________________________________________________________________________

Compression Standard

Video Compression:

H.264+/H.264/MJPEG, Support H.264+ only when the display mode is Fisheye View

Video bit rate:

32Kbps~16Mbps

Audio Compression:

G.711/G.726/MP2L2

Dual Stream:

Yes

_______________________________________________________________________________________________________________________________________


Max. Image Resolution:

4000 × 3072

Sub Stream:

50Hz: 12.5fps (720 × 720, 720 × 576)
60Hz: 15fps (720 × 720, 704 × 480)

Frame Rate:

Main Stream:
50Hz: 20fps (4000 × 3072), 25fps(3072 × 3072, 2560 × 2560)
60Hz: 20fps (4000 × 3072), 24fps(3072 × 3072), 30fps(2560 × 2560)

Image Settings:

Saturation, Brightness, Contrast , Hue, Sharpness, AGC, White Balance

3D DNR:

Support

ROI:

Support

Day/Night Switch:

Auto/Schedule/Alarm Trigger

_______________________________________________________________________________________________________________________________________

Network

Network Storage:

NAS (Support NFS,SMB/CIFS)

Alarm Trigger:

Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception

Protocols:

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function:

User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask

System Compatibility:

ONVIF (Profile S, Profile G),ISAPI

_______________________________________________________________________________________________________________________________________

Interface

Audio Input:

1 3.5mm audio interface, Mic in/Line in; 1 built-in microphone by default, 24db

Audio Output:

1 3.5mm audio output interface;
1 built-in speaker by default, support echo cancellation

Communication Interface:

1 RJ45 10M/100M/1000M Ethernet port, 1 RS 485 interface (-S)

Alarm Input:

1

Alarm Output:

1

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

Yes

_______________________________________________________________________________________________________________________________________

General

Operating Conditions:

Indoor: -10 °C – 50 °C (14 °F – 122 °F)
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 10%, PoE (802.3af)

Power Consumption:

Max. 14.7 W

Weather Proof:

IP66

IR Range:

15 meters

Dimensions:

164x152.8x43.8mm(6.46”x6.02”x1.72”)

Weight:

1400g
