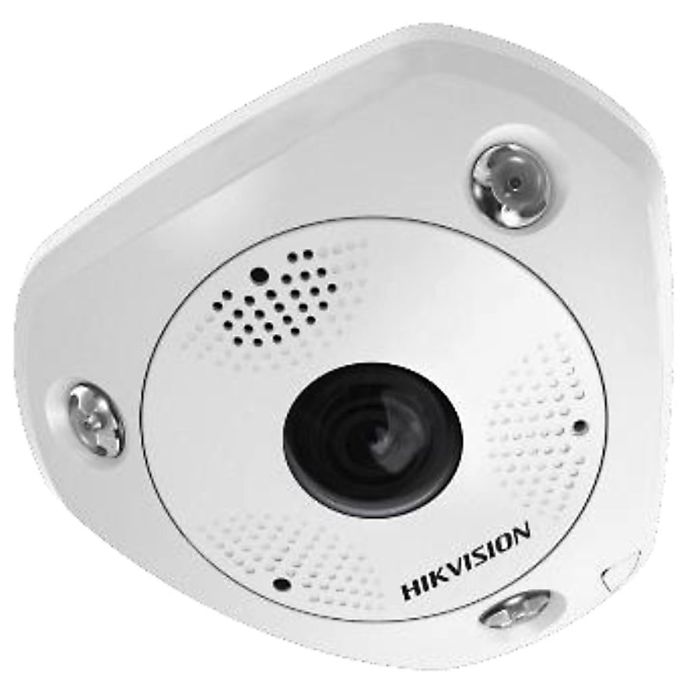

DS-2CD6365G0-IVS 1.27mm 6MP IR Network Fisheye Camera

DS-2CD6365G0-IVS is part of the DeepinView series, and is a fisheye network camera capable of providing a 360-degree panoramic image of its surveillance scene.

In stock

SKU
DS-2CD6365G0-IVS
Quickly create a guest account to view prices

Description / DS-2CD6365G0-IVS 1.27mm 6MP IR Network Fisheye Camera

Key Features:



  • -1/1.8” Progressive Scan CMOS
  • -Max. 3072 × 2048 @30fps
  • -Up to 15 live view display modes
  • -120 dB WDR
  • -Up to 15m IR range
  • -Built-in microphone and speaker
  • -Smart features 6 behavior analyses, and 3 exception detections
  • -Heat map with deep learning algorithm Intersection analysis



Click Here for the PDF Specifications!



Specifications:



Camera

  • Image Sensor1/1.8″ Progressive Scan CMOS
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0.001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Speed1 s to 1/100,000 s
  • Slow ShutterSupport
  • DNR3D DNR
  • WDR120dB WDR
  • Day & NightIR cut filter
  • FocusNo

Lens

  • ApertureF2.6
  • FOVHorizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
  • Focal Length1.27 mm

Audio

  • Audio Compression8 kHz/16 kHz
  • Environment Noise Filtering16 display modes in total,Software decoding: ,Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere,Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ,Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ,Hardware decoding:,Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ,Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ,Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ
  • Audio I/Osupport


  • Image EnhancementBLC, HLC, defog, 3D DNR
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
  • Sub-Stream50Hz: 25fps (720 × 720),60Hz: 30fps (720 × 720)
  • Max. Resolution3072 × 2048
  • Main Stream50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280),60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)

Network

  • ProtocolsMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • API5.5.70
  • SecurityTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewONVIF (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 20 channels
  • ClientUp to 32 users. 3 user levels, administrator, operator and user
  • Web BrowseriVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • DetectionSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
  • General FunctionPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
  • Firmware VersionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Smart FeaturesIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Interface

  • Communication InterfaceBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Alarm1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm);,1 built-in microphone, 1 built-in speaker, mono sound
  • Video Output1 RJ45 10M/100M/1000M self-adaptive Ethernet port
  • On-Board Storage1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
  • Housing InterfaceYes

General

  • Power Supply‘-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • WeightWith –V model: 167 × 152.8 × 50 mm (6. 6" × 6" × 2") ,Without –V model: 167 × 152.8 × 45.5 mm (6. 6" × 6" × 1.8")
  • Power ConsumptionWithout MA:,12 VDC±20%, PoE (802.3af, class 0), two-core terminal block,With MA:,12 VDC±20%, PoE (802.3at, class 4), two-core terminal block
  • AccessoryIP67, IK10
  • Shipping WeightWithout MA:,12 VDC, 0.9 A, max. 11 W ,PoE (802.3af, 36 to 57 V), 0.3 A to 0.2 A, max. 12 W,With MA:,12 VDC, 1 A, max. 12.5 W ,PoE (802.3at, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W ,
  • WiperMetal

Compression Standard

  • H.264+Main stream supports
  • H.265+support
  • H.264 TypeBaseline Profile/ Main Profile /High Profile
  • Video CompressionMain stream: H.265+/H.265/H.264+/H.264,Sub stream: H.265/H.264/MJPEG
  • H.265 TypeMain Profile
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
  • Video Bit Rate32 Kbps to 16 Mbps
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

IR

  • IR RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
  • Wavelength850nm

Live View Display

  • Display ModeSupport table, wall, and ceiling mounting

Road Traffic And Vehicle Detection

  • AccuracyApprox. 1400 g (3.09 lbs)

Smart Feature-Set

  • Exception DetectionAudio exception detection
  • Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Region Of Interest4 fixed regions for main stream
