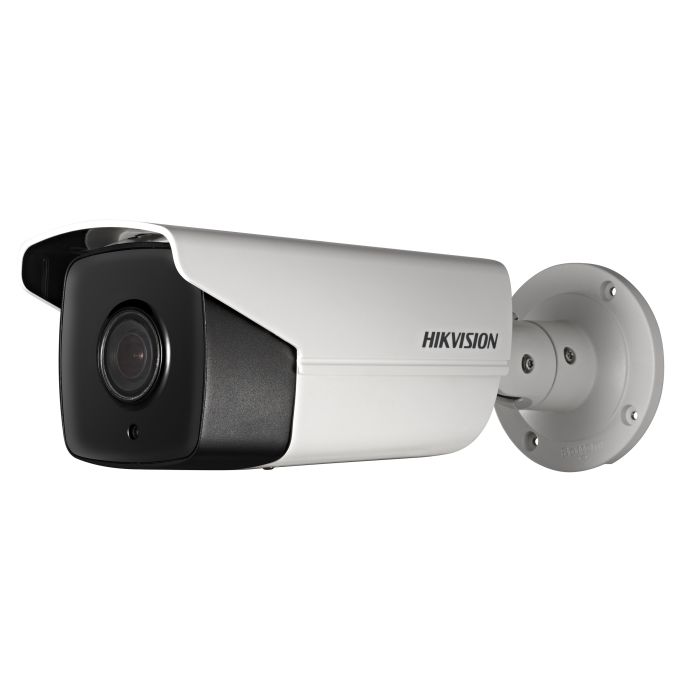

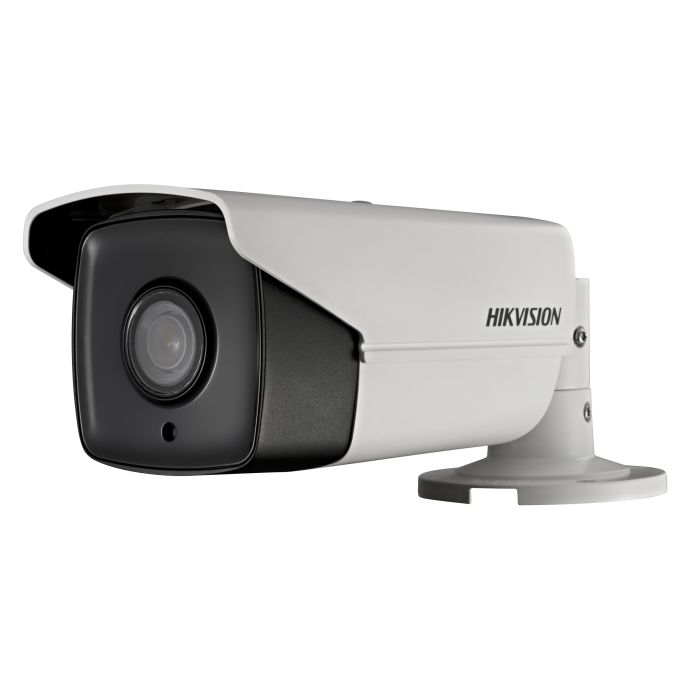

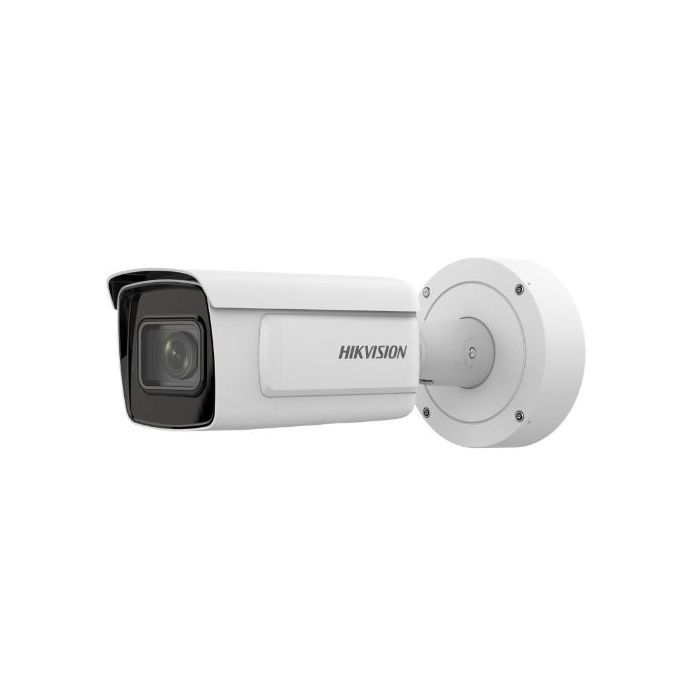

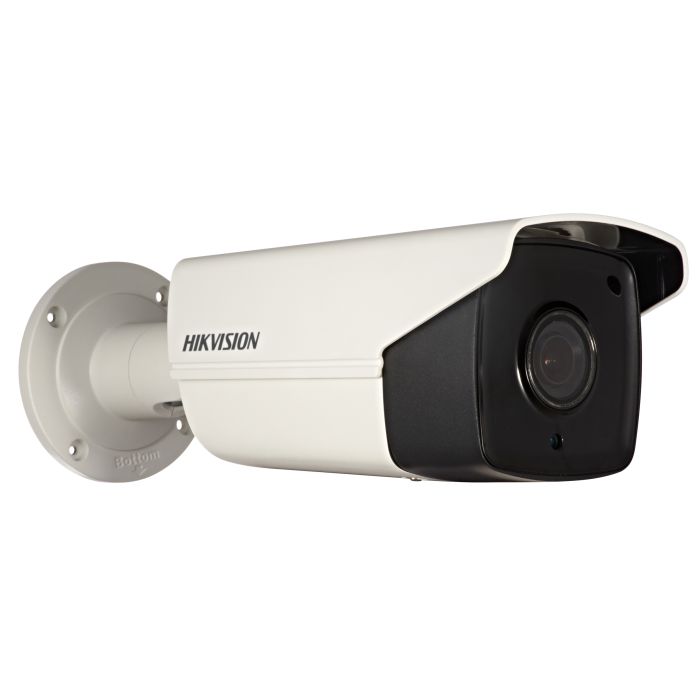

IDS-2CD7A26G0/P-IZHSY (2.8-12) 2 MP ANPR Ultra-Low Light Bullet Camera

DS-2CD4A26FWD-IZS/P 2MP DarkFighter Licence Plate Detection Bullet Camera

In stock

SKU
DS-2CD4A26FWD-IZS/P
Quickly create a guest account to view prices

Description / IDS-2CD7A26G0/P-IZHSY (2.8-12) 2 MP ANPR Ultra-Low Light Bullet Camera

CLICK HERE FOR THE PDF SPECIFICATIONS: iDS-2CD7A26G0_P-IZHSY-C ANPR Camera

Camera
Image Sensor: 1/1.8" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.002 Lux @ (F1.2, AGC ON), 0.0027 Lux @ (F1.4, AGC ON), 0 Lux with IR
Shutter time: 1s ~ 1/100,000s
Slow shutter: Support
Auto Iris: DC drive
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB

Compression Standard
Video Compression: H.264+/H.264/MPEG4/MJPEG
H.264 code profile: Baseline Profile / Main Profile / High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Triple Streams: Yes

Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz:50fps(1920Ă—1080), 50fps(1280Ă—960), 50fps(1280Ă—720)
60Hz:60fps(1920Ă—1080), 60fps(1280Ă—960), 60fps(1280Ă—720)
Third Stream: Independent with Main Stream and Sub Stream, up to
50Hz: 25fps (1920 Ă— 1080)
60Hz: 30fps (1920 Ă— 1080)
Image Enhancement: BLC/3D DNR/ROI/Defog/EIS
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Distortion Correction: Support
Target Cropping: Support
Picture Overlay: LOGO picture can be overlaid on video with 128x128 24bit bmp format
Day/Night Switch: Auto/Schedule/Triggered by Alarm In

Network
Network Storage: NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function: User Authentication, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G),ISAPI

Interface
Audio: 1-ch 3.5 mm audio in (Mic in/Line in)/out interface
Audio Input: 1-ch 3.5 mm audio interface, MIC IN/LINE IN
Audio Output: 1-ch 3.5mm audio interface
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
Alarm: 1 input, 1 output (up to DC24V 1A or AC110V 500mA )
Alarm Input: 1
Alarm Output: 1
Video Input: 1 RJ12 interface
Video Output: 1Vp-p composite output (75 Ω/BNC) (-S model)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes

Audio
Environment Noise Filtering: Support
Audio I/O: Support dual audio track, stereo
Audio Sampling Rate: 16kHz / 32kHz / 44.1kHz / 48kHz

Smart Feature-set
Behavior Analysis: Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection: Cross a pre-defined virtual line
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
Unattended Baggage: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal: Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections: Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Recognition: Face detection recognition
Statistics: Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)

General
Operating Conditions: -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing), -H: -40 °C – 60 °C
Power Supply: 12 VDC ± 10%, PoE (802.3af)
Power Consumption: Max. 20.7 W
Weather Proof: IP67
Dimensions: 100×103.9×311.8 mm (3.94” × 4.09” × 12.28”)
Weight: 2000 g (4.41 lbs)

More Information

Manufacturer HIKVision
