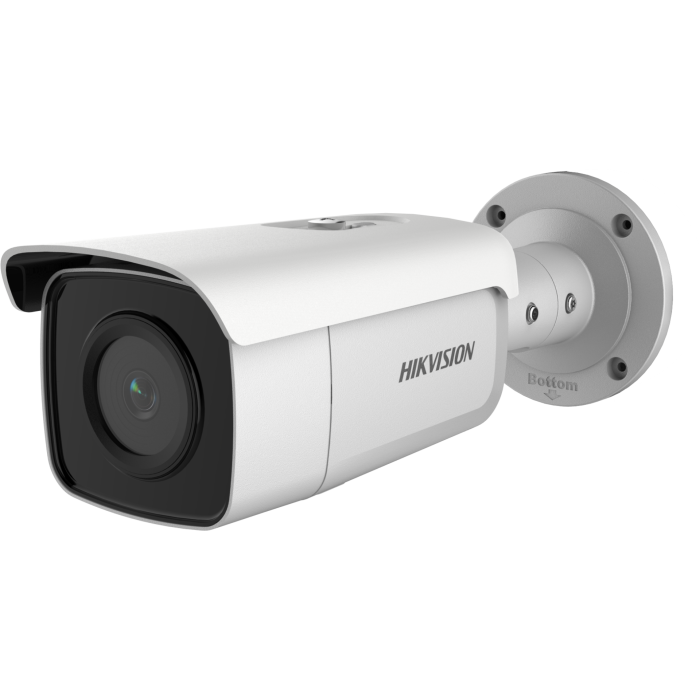

DS-2CD2T46G2-4L 4 MP 80m IR AI AcuSense Fixed Bullet Network Camera

HIKVision's DS-2CD2T46G2-4I is a wonderful camera powered by Darkfighter, so it can produce great images in Low-Light conditions!

In stock

SKU
DS-2CD2T46G2-4I
Quickly create a guest account to view prices

Description / DS-2CD2T46G2-4L 4 MP 80m IR AI AcuSense Fixed Bullet Network Camera

Click Here for PDF Specifications!

 Key Features:

  • -Max. 2688 Ă— 1520 @ 30fps
  • -2.8 mm/4 mm/6 mm/8mm fixed lens
  • -H.265+, H.264+
  • -120dB WDR
  • -False alarm reduction by human and vehicle target classification based on deep learning
  • -Powered by Darkfighter
  • -12 VDC & PoE (802.3af, class 4)
  • -Built-in micro SD/SDHC/SDXC slot, up to 128 GB
  • -BLC/3D DNR/HLC/ROI
  • -Color: 0.012 Lux @ (F1.6, AGC ON)
  • -Bulit-in speaker
  • -Strobe Light & Audio Alarm
  • -IP66

SPECIFICATIONS:

  • Camera:
  • Image Sensor:
  • 1/2.7” Progressive Scan CMOS
  • Signal System:
  • PAL/NTSC
  • Min. Illumination:
  • 0.012 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Slow shutter:
  • Support
  • Shutter time:
  • 1/3 s to 1/100,000 s
  • Lens:
  • 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°
    4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
    6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°
    8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45°
  • Lens Mount:
  • M12
  • Adjustment Range:
  • Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Day& Night:
  • IR cut filter with auto switch
  • Wide Dynamic Range:
  • 120 dB
  • Digital noise reduction:
  • 3D DNR
  • Compression Standard:
  • Video Compression:
  • H.265+/H.265/H.264+/H.264/MJPEG
  • Video bit rate:
  • 32Kbps~16Mbps



  • Image:
  • Max. Image Resolution:
  • 2688 Ă— 1520
  • Frame Rate:
  • 50Hz: 25fps (2688 Ă— 1520, 1920 Ă— 1080, 1280 Ă— 720)
    60Hz: 30fps (2688 Ă— 1520, 1920 Ă— 1080, 1280 Ă— 720)
  • Sub Stream:
  • 50Hz: 25fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
    60Hz: 30fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
  • Third Stream:
  • 50Hz: 25fps (1280 Ă— 720, 640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
    60Hz: 30fp s(1280 Ă— 720, 640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
  • Image Enhancement:
  • BLC/3D DNR/HLC/ROI
  • ROI:
  • Support 1 fixed region for main stream and sub stream separately
  • Day/Night Switch:
  • Day/Night/Auto/Schedule
  • Network:
  • Network Storage:
  • microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocols:
  • TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • System Compatibility:
  • ONVIF (Profile S, Profile G),ISAPI

  • Interface:
  • Communication Interface:
  • 1 RJ45 10M / 100M Ethernet interface
  • On-board storage:
  • Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Reset Button:
  • Yes
  • Smart Feature-set:
  • Line Crossing Detection:
  • Cross a pre-defined virtual line
  • Intrusion Detection:
  • Enter and loiter in a pre-defined virtual region
  • Region Entrance:
  • Enter a pre-defined virtual region from the outside place
  • Region Exiting:
  • Exit from a pre-defined virtual region



  • General:
  • Operating Conditions:
  • -30 °C ~ 60 °C (-22 °F ~ 140 °F)
    Humidity 95% or less (non-condensing)
  • Power Consumption:
  • 12 VDC, 0.5 A, max. 6 W
    PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W
  • Weather Proof:
  • IP66
  • Dimensions:
  • Camera: Φ 105 Ă— 292.2 mm (Φ 4.1" Ă— 11.5")
    With package: 385 Ă— 190 Ă— 180 mm (15.2" Ă— 7.5" Ă— 7.1")
  • Weight:
  • Camera: 1320 g (2.9 lb.)
    With package: 1924 g (4.2 lb.)

More Information

Manufacturer HIKVision
