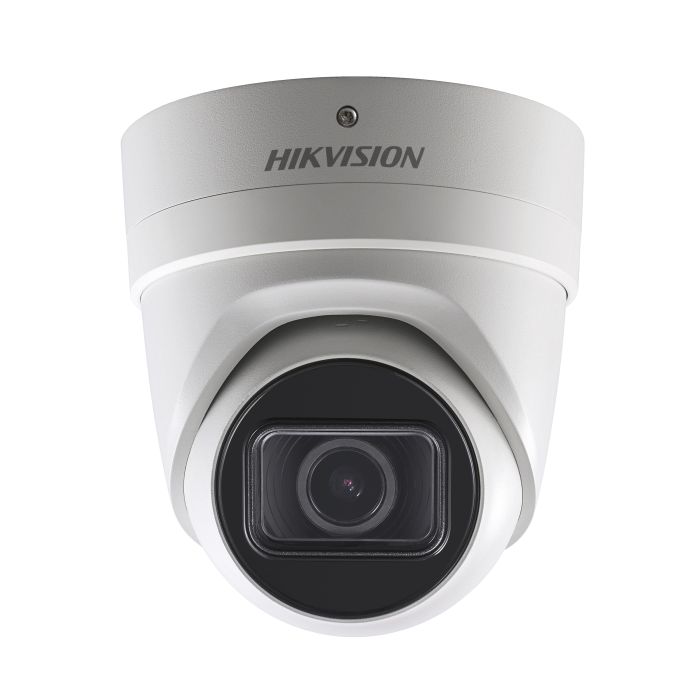

DS-2CD2H25FWD-IZS 2 MP Ultra-Low Light Network Turret Camera
Description / DS-2CD2H25FWD-IZS 2 MP Ultra-Low Light Network Turret Camera
CLICK HERE FOR THE PDF SPECIFICATIONS:
| Camera: | ||
|---|---|---|
| Image Sensor: | 1/2.8" Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR Color: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR |
|
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 to 12 mm Horizontal field of view: 105°to 35° Vertical field of view: 56°to 20° Diagonal field of view: 126°to 40.5° |
|
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360° | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard: | ||
|---|---|---|
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 32 to 128kbps | |
| Triple Streams: | Yes | |
| Image: | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Sub Stream: | 50Hz: 25fps (640 × 360, 352 × 288) 60Hz: 30fps (640 × 360, 352 × 240) |
|
| Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720) |
|
| Third Stream: | 50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240) |
|
| Image Enhancement: | BLC/3D DNR | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Target Cropping: | Support | |
| ROI: | Support 1 fixed region for each stream | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network: | ||
|---|---|---|
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
|
| General Function: | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
|
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI | |
| Interface: | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| Alarm: | 1 input, 1 output (max. 12 VDC, 30 mA) | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| Reset Button: | Yes | |
| Audio: | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Smart Feature-set: | ||
|---|---|---|
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| General: | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
| Power Consumption: | 12 VDC, 0.85A, max. 10W PoE (802.3af, 37V to 57V), 0.20 A to 0.31 A, max. 11.5W |
|
| Impact Protection: | IK10 | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Φ 135.8 mm × 145.5 mm (Φ 5.35" × 5.73") | |
| Weight: | With Package: Approx. 1220 g (2.69 lb.) Camera: Approx. 1060 g (2.34 lb.) |
|
More Information
| Manufacturer | HIKVision |
|---|
