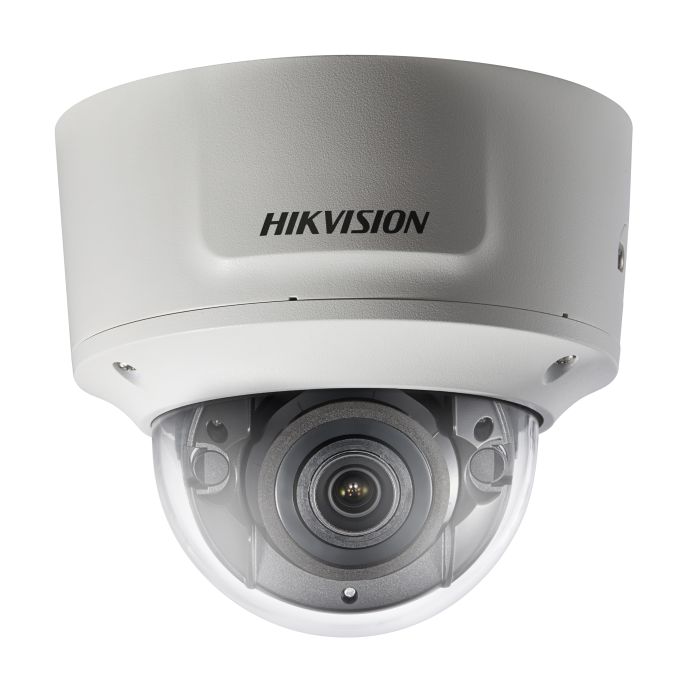

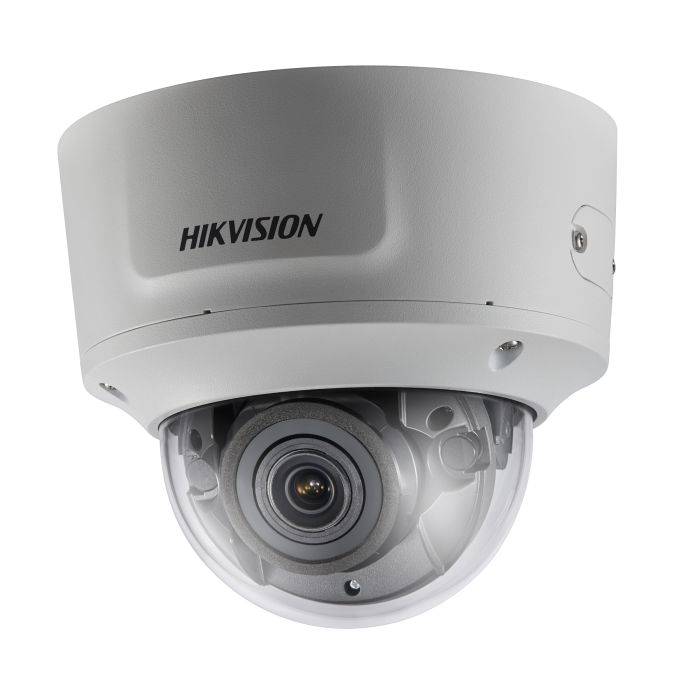

DS-2CD2725FWD-IZS 2MP IP Dome Camera
Description / DS-2CD2725FWD-IZS 2MP IP Dome Camera
Camera
Model : DS-2CD2725FWD-IZS
Image Sensor : 1/2.8" Progressive Scan CMOS
Signal System : PAL/NTSC
Min. Illumination : Color: 0.005 lux (F1.2, AGC ON), 0 lux with IR
Shutter time : 1/3 s to 1/100,000 s
Slow shutter : Support
Lens : 2.8~12mm
Lens Mount : M12
Adjustment Range : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Day& Night : IR cut filter with auto switch
Wide Dynamic Range : 120 dB
Digital noise reduction : 3D DNR
Compression Standard
Video Compression : H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate : 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio bit rate : 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2)
Triple Streams : Yes
Max. Image Resolution : 1920 x 1080
Frame Rate : 50Hz: 25fps (1920 * 1080, 1280 * 960, 1280*720) ; 60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720)
Sub Stream : 50Hz: 25fps (640 * 360, 352 * 288) ; 60Hz: 30fps (640 * 360, 352 * 240)
Third Stream : 50Hz: 25fps (1280 * 720, 640 * 360, 352 * 288) ; 60Hz: 30fps (1280 * 720, 640 * 360, 352 * 240)
Image Enhancement : BLC/3D DNR
Image Settings : Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping : Support
ROI : Support 1 fixed region for each stream, and face dynamic tracking
Day/Night Switch : Auto/Scheduled
Network
Protocols : TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function : One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility : ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface : 1 RJ45 10M / 100M Ethernet interface
On-board storage : Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis : Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing Detection : Cross a pre-defined virtual line
Intrusion Detection : Enter and loiter in a pre-defined virtual region
Unattended Baggage : Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal : Objects removed from the pre-defined region, such as the exhibits on display.
Recognition : Face Detection
General
Operating Conditions : -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply : 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption : 12 VDC ± 25%, 5.5W PoE(802.3af, class 3), 7.5W
Weather Proof : IP67
IR Range : Up to 30m
Dimensions : Camera: Φ 111 * 82.4 mm (Φ 4.4″ * 3.2″)
Package : 95 * 105 * 258.6 mm (3.74″ * 4.13″ * 10.18″)
Weight : Camera: 1200 g (2.65 lb.)
More Information
| Manufacturer | HIKVision |
|---|
